Brand: BIOBASE | Category: Scientific & Laboratory Equipment

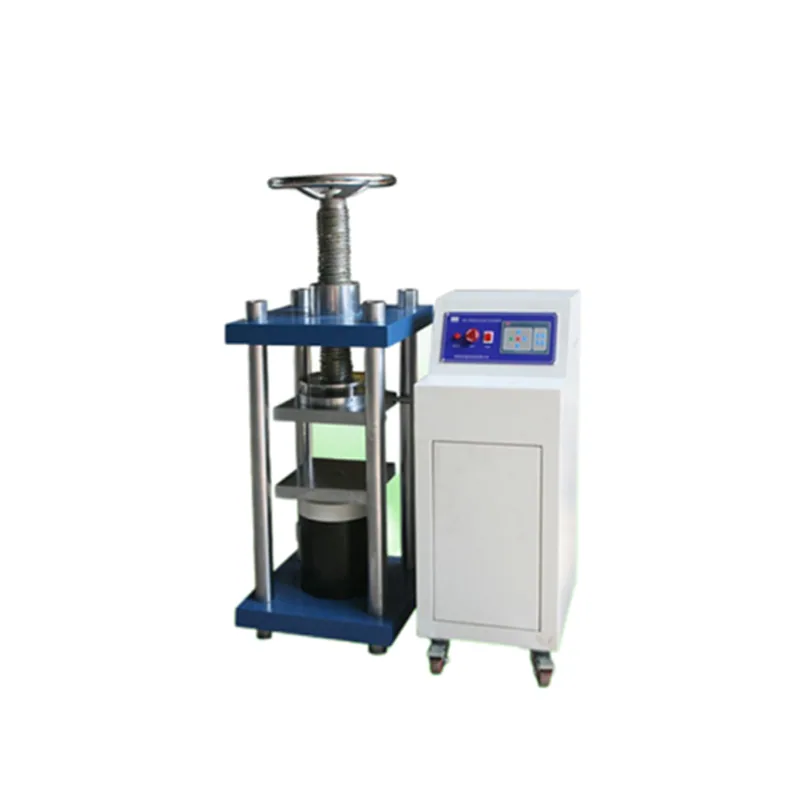

BIOBASE Fully automatic pressure testing machine(Customized) is listed in VVON's mechanical testing instruments range for Bangladesh. Published models: BK-APT9. Published details include Measurement Range: 4%~100%FS. Match specimen geometry, force range, method, grips and measurement requirements. For a quotation, send the material, specimen dimensions, test method, force range and fixtures. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-APT9 |
|---|---|
| Max. Test Force | 3000kN |
| Measurement Range | 4%~100%FS |
| Relative Error | <±1% |
| Resolution | 0.03kN |
| Size of Upper and Lower Pressure Plates | 500x500mm |
| Maximum Distance Between Upper and Lower Pressure Plates | 500mm |
| Piston Diameter | Φ310mm |
| Piston Stroke | 100mm |
| Consumption | 1.1KW |
| External Size(D W*H)mm | 780*720*1950 |
| Net Weight(kg) | 2500 |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
