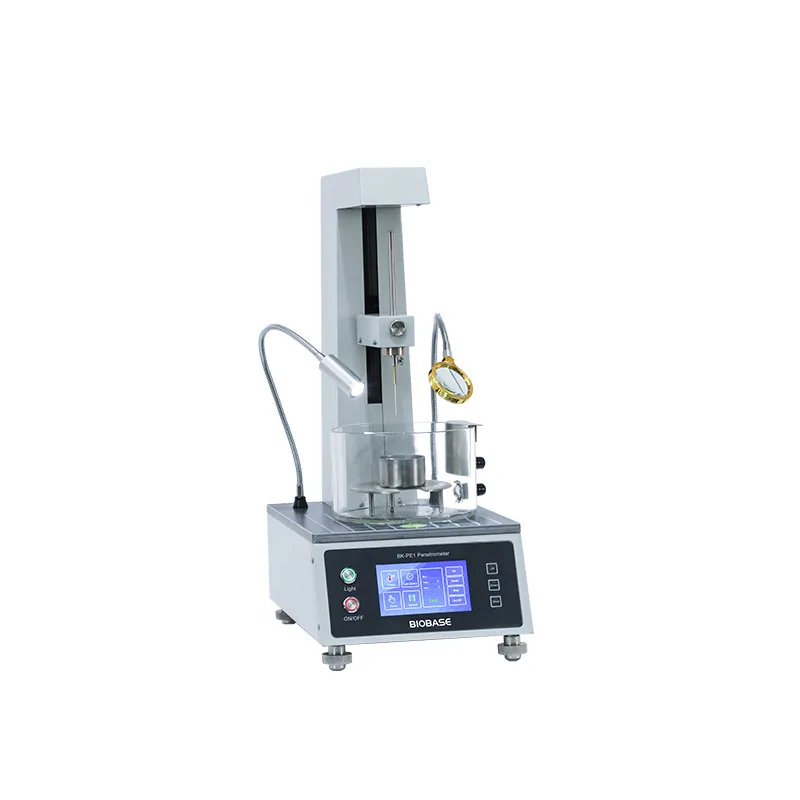

BIOBASE Penetrometer BK-PE1
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Penetrometer BK-PE1 is listed in VVON's mechanical testing instruments range for Bangladesh. Published models: BK-PE1. Published details include Measurement Range: 0 penetration~600 penetrations. Match specimen geometry, force range, method, grips and measurement requirements. For a quotation, send the material, specimen dimensions, test method, force range and fixtures. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-PE1 |
|---|---|
| Measurement Range | 0 penetration~600 penetrations |
| Resolution | 0.1 penetration(0.01mm) |
| Timing Range | 5s, 8s, 10s, 12s, 30s, 60s, and the error is less than ±0.1s |
| Temperature Control Accuracy | 25±0.1 ℃ |
| Constant Temperature Bath | Hard glass chamber |
| Stirring | Magnetic stirrer, rotary stirring |
| Working Environment | Temperature: 15~35℃; Relative humidity: ≤85% |
| Optional Configuration | Bitumen penetration test kits or; Paraffin needle penetration test kit or Grease cone penetration test kits |
| Consumption | 200W |
| Power Supply | AC220V±10％, 50Hz |
| External Size(W*D*H) | 260*400*640mm |
| Net Weight | 16kg |
| Package Size(W*D*H) | 720*400*750mm(Bitumen penetration test kits); 720*420*750mm(Paraffin needle penetration test kits); 725*390*1030mm(Grease cone penetration test kits) |
| Gross Weight | 27.5kg(Bitumen penetration test kits); 28.5kg(Paraffin needle penetration test kits); 44kg(Grease cone penetration test kits) |
Manufacturer catalogue checked 2026-09-28.
