Brand: BIOBASE | Category: Scientific & Laboratory Equipment

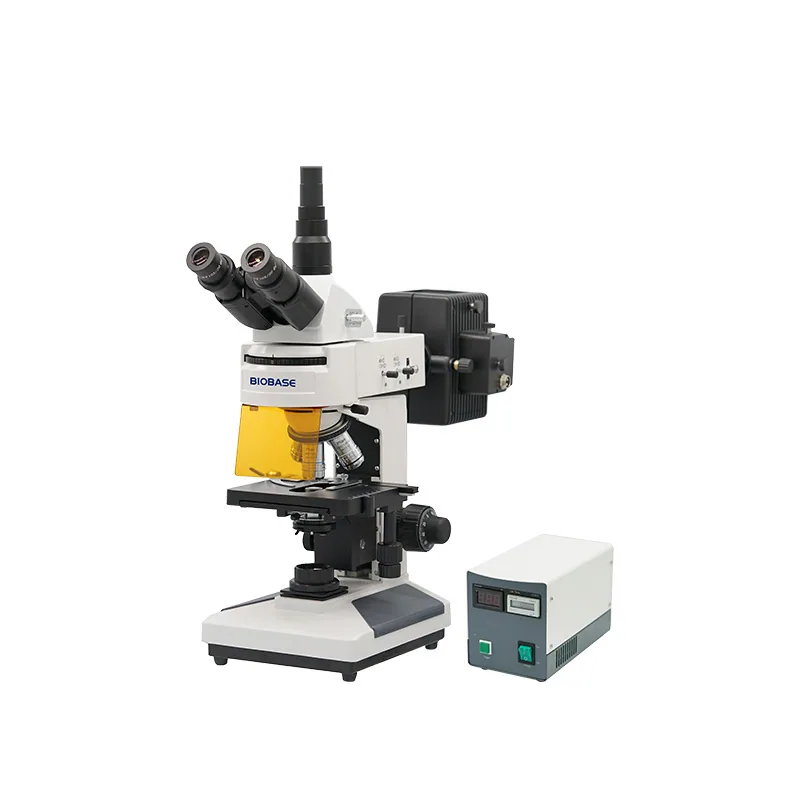

BIOBASE Fluorescence Biological Microscope is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BFM-13CYII. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BFM-13CYII |
|---|---|
| Optical System | Infinity optical system |
| Eyepiece | 10X/22mm |
| View Head | Trinocular view head, inclined at 30°, interpupillary distance adjustment 48~75mm |
| Objective | Infinity plan achromatic objective 4X; Infinity plan achromatic objective 10X; Infinity plan achromatic objective 40X; Infinity plan achromatic objective 100X |
| Fluorescence Accessories | Standard: Blue (B) excitation: 460~490nm; Green (G) excitation: 510~560nm Optional: Ultraviolet (UV) excitation: 330~380nm; Blue-Ultraviolet (BU) excitation: U: 330~380nm, B: 460~490nm; Blue-Green-Ultraviolet (BGU) excitation: U: 330~380nm, B: 450~490nm, G: 510~560nm |
| Focusing System | Coaxial focusing with coarse and fine movements, featuring locking and limiting devices; fine movement increments of 2μm; coarse movement stroke of 40mm per revolution; fine movement stroke of 0.2mm per revolution; focusing range of 30mm. |
| Nosepiece | 4-position nosepiece, 5-position nosepiece(Optional) |
| Stage | Double-layer movable platform. Platform dimensions: 160*140mm; Movement range: 75*50mm. |
| Condenser | Abbe Condenser N.A.1.25 |
| Illumination | White LED, adjustable brightness |
| Power Supply | AC100~240V, 50/60Hz |
| Packing Size(W*D*H) | 465*450*600mm |
| Gross Weight | 15.5kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
