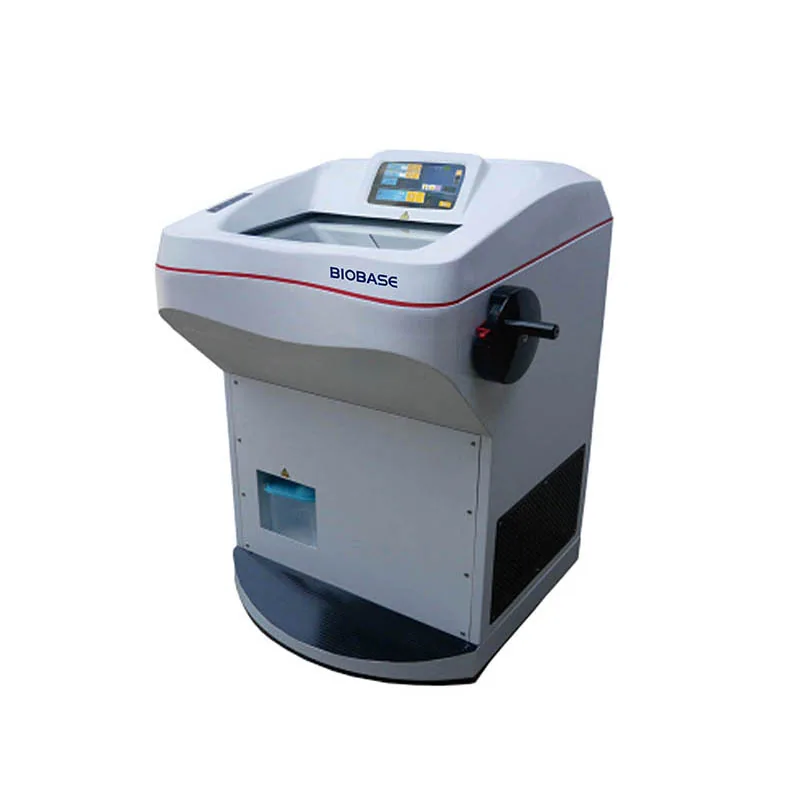

BIOBASE BK-3000 Automatic Cryostat Microtome
Brand: BIOBASE | Category: Medical Equipment
BIOBASE BK-3000 Automatic Cryostat Microtome is listed in VVON's histology & pathology equipment range for Bangladesh. Published models: BK3000. Published details include Temperature control range of sample chuck: 10℃ ～ -50℃. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK3000 |
|---|---|
| Chamber temperature | 10℃ ～ -50℃ |
| Freezing shelf temperature | 0℃ ～ -50℃ |
| Temperature control range of sample chuck | 10℃ ～ -50℃ |
| Additional semiconductor refrigeration in the freezer | -60℃ |
| Number of freezing station | 36 pcs |
| Pelletier number | 8 pcs |
| Semiconductor fast cooling working time | 15 minutes |
| Maximum specimen size | 55mm×80mm |
| Vertical stroke | 65mm |
| Horizontal stroke | 22mm |
| Electric feed speed | 0.9mm/s、0.45mm/s |
| Disinfection method | UV |
| Section thickness range | 0.5μm～100μm Adjustable |
| Section thickness range | 0.5μm～5μm Increment0.5μm |
| Section thickness range | 5μm～20μm Increment1μm |
| Section thickness range | 20μm～40μm Increment2μm |
| Section thickness range | 40μm～100μm Increment5μm |
| Trimming thickness range | 10μm～600μm Adjustable |
| Trimming thickness range | 10μm～50μm Increment5μm |
| Trimming thickness range | 50μm～100μm Increment10μm |
| Trimming thickness range | 100μm～600μm Increment50μm |
| Specimen retraction | 0～100μm Adjustable，Increment5μm |
| Dimension size(mm) | 700×760×1160mm |
| Weight | 135 KG |
Manufacturer catalogue checked 2026-09-28.
