Brand: BIOBASE | Category: Medical Equipment

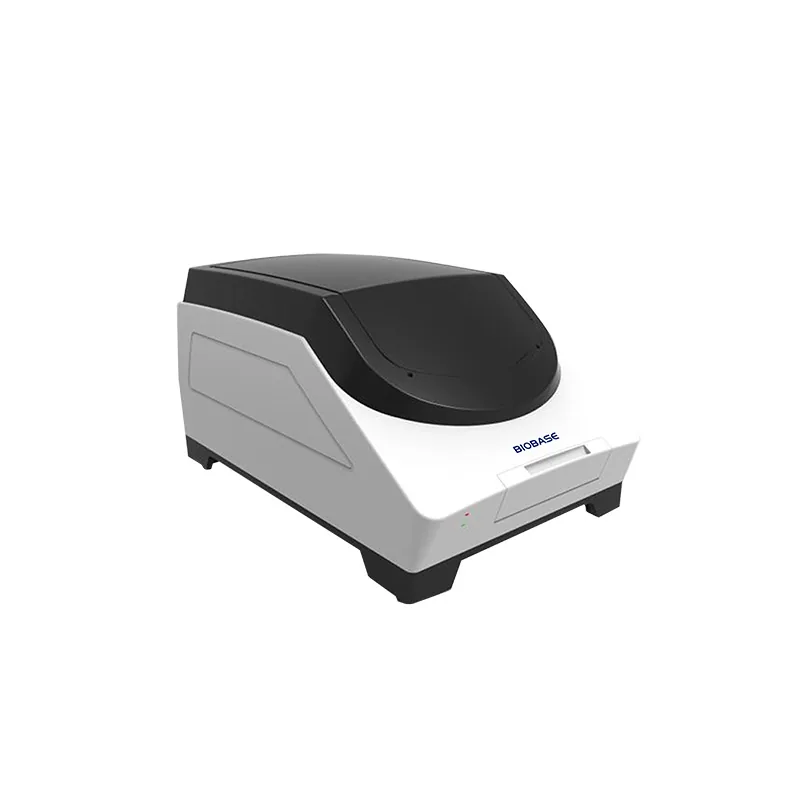

BIOBASE Digital Slide Scanner is listed in VVON's histology & pathology equipment range for Bangladesh. Published models: BKSS-M60. Published details include Slide Capacity: 1~6pcs. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKSS-M60 |
|---|---|
| Slide Capacity | 1~6pcs |
| Slide Size | Thickness 0.9~1.2mm, size 26*76mm |
| Objective | 20X Plan Apochromat Objective, N.A.=0.75 |
| Scanning Ratio | 20X and 40X high-speed scanning |
| Scan Resolution | ≤0.48μm/pixel(20X) ≤0.24μm/pixel(40X) |
| Scanning Platform | Magnetic levitation linear motor, high-precision fully closed-loop drive control system |
| Scan Speed | Tissue area 15mmx15mm, 20x scanning time ≤40 seconds |
| Repeatability | 0.1μm |
| Focus Mode | Fully automatic focus, automatic search for scanning samples, can also be set manually |
| Scanning Method | Bright field scanning |
| Viewable Range | 1.3mm |
| Illumination System | LED professional light source, compound eye lens technology |
| Software | Software for image scanning, management and viewing |
| Power Supply | 220V, 50/60Hz; 110V, 56/60Hz |
| Packing Size | 1000*1000*740mm |
| Gross Weight | 72kg |
Manufacturer catalogue checked 2026-09-28.
