Brand: BIOBASE | Category: Medical Equipment

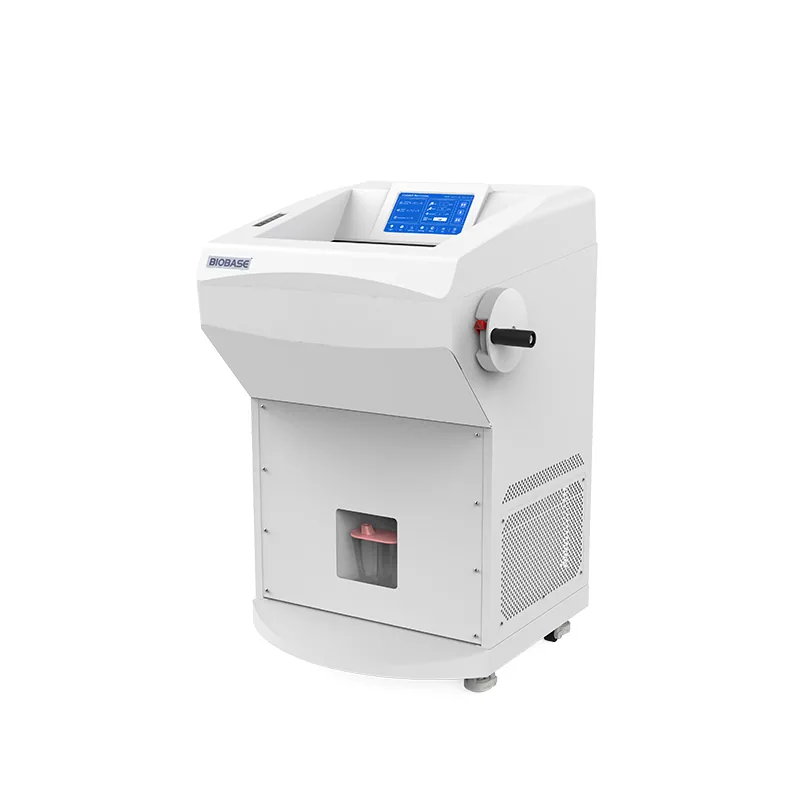

BIOBASE Cryostat Microtome BK-2328 is listed in VVON's histology & pathology equipment range for Bangladesh. Published details include Chamber Temp. Range: -10℃ to -40℃; Specimen Head Temp. Range: -10℃ to -40℃. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Parameter | BK-2328 |
|---|---|
| Section Thickness Range | 1~100μm |
| Trimming Thickness Range | 10~400μm |
| Retraction Range | 0~200μm |
| Chamber Temp. Range | -10℃ to -40℃ |
| Specimen Head Temp. Range | -10℃ to -40℃ |
| Time to The Lowest Temperature | 60min |
| Lowest Temp. of Refrigerating Table | -45℃ |
| Lowest Temp. of Refrigerating Table with Peltier Refrigeration | -60℃ |
| Max Specimen Size | φ55mm |
| Specimen Vertical Stroke | 60mm |
| Specimen Horizontal Stroke | 20mm |
| Electric Coarse Feed | Rapid 0.7mm/s, slow 0.35mm/s |
| Power Supply | AC220V, 50/60Hz(Standard); AC110V, 60Hz(Optional) |
| Power | 1500W |
| External Size(W*D*H) | 770*840*1190mm |
| Packing Size(W*D*H) | 860*930*1400mm |
| Net Weight | 160kg |
| Gross Weight | 198kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Slide Capacity: 1~6pcs. Match specimen throughput, preparation steps and consumables to the histology workflow.
Temperature control range of sample chuck: 10℃ ～ -50℃. Match specimen throughput, preparation steps and consumables to the histology workflow.
Histology & Pathology Equipment by BIOBASE. Match specimen throughput, preparation steps and consumables to the histology workflow.
