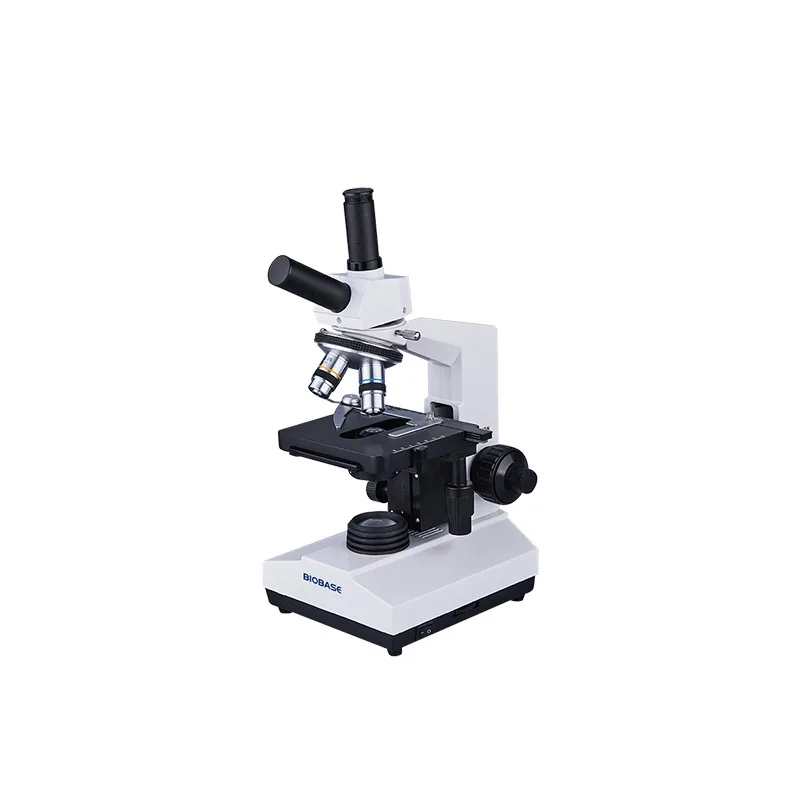

BIOBASE Biological Microscope BM-Z102 BM-F104 BM-Z106 BM-Z110 BM-Z112
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Biological Microscope BM-Z102 BM-F104 BM-Z106 BM-Z110 BM-Z112 is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BM-Z102, BM-F104, BM-Z106, BM-Z110, BM-Z112. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BM-Z102 | BM-F104 | BM-Z106 | BM-Z110 | BM-Z112 |
|---|---|---|---|---|---|
| Eyepiece / Wide field eyepiece: WF10X,(WF16X optional) | √ | √ | √ | √ | √ |
| Viewing Head / Compensation free binocular head inclined at 30° | / | √ | / | / | / |
| Viewing Head / Sliding binocular head, inclined at 45° | / | / | √ | / | / |
| Viewing Head / Compensation free trinocular head, inclined at 30° | / | / | / | √ | / |
| Viewing Head / Sliding trinocular head, inclined at 45° | / | / | / | / | √ |
| Viewing Head / Monocular with video teaching head | √ | / | / | / | / |
| Achromatic Objective / 4X, 10X, 40X(Spring), 100X(Spring, oil) | √ | √ | √ | √ | √ |
| Nosepiece / Quadruple nosepiece | √ | √ | √ | √ | √ |
| Stage / Double layer mechanical stage size 132*140mm, moving range 75*45mm | √ | √ | √ | √ | √ |
| Base Accessories / Black decorative panel | ● | ● | ● | ● | √ |
| Focusing / Coaxial coarse and fine adjustment, focusing range 30mm, focusing Interval 0.002mm | √ | √ | √ | √ | √ |
| Condenser / Abbe NA=1.25 with iris diaphragm &filter | √ | √ | √ | √ | √ |
| Illumination / LED light source(halogen lamp optional) | √ | √ | √ | √ | √ |
| Power Supply / AC Input 100~240V 50/60Hz, DC Output 12V | √ | √ | √ | √ | √ |
| Package Size(W*D*H)mm | 320*280*420 | 320*280*420 | 320*280*420 | 320*280*420 | 320*280*420 |
| Gross Weight(kg) | 5.2 | 5.6 | 5.6 | 6 | 6 |
Manufacturer catalogue checked 2026-09-28.
