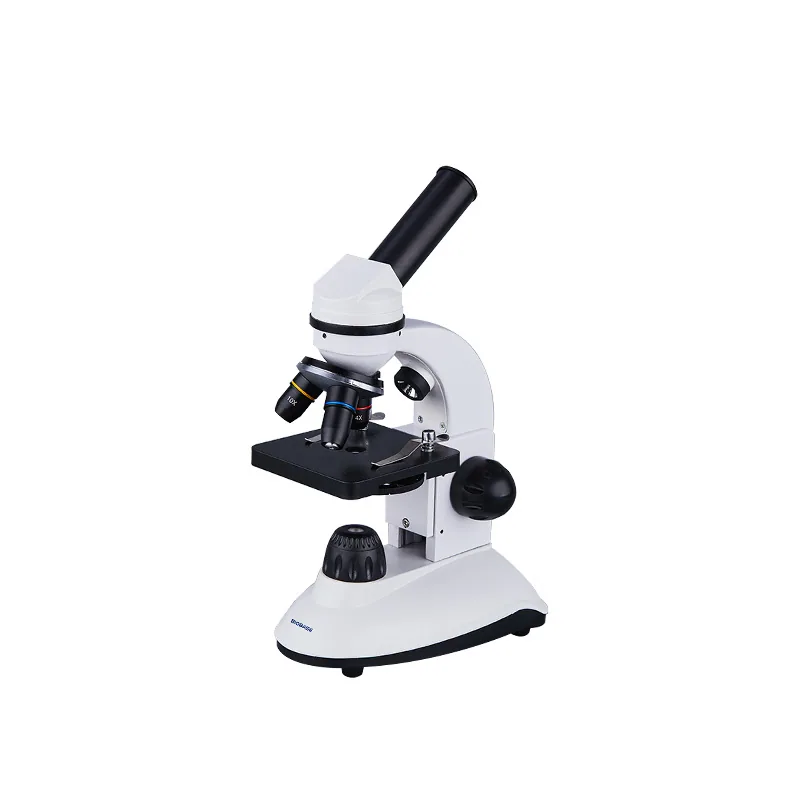

BIOBASE Biological Microscope BM-A106 BM-A118 BM-A206
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Biological Microscope BM-A106 BM-A118 BM-A206 is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BM-A106, BM-A118, BM-A206, BM-T300, BM-T310, 4X, 10X, 40X (spring). Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model / BM-A106 | BM-A106 | BM-A118 | BM-A118 | BM-A206 |
|---|---|---|---|---|
| Objective / 4X, 10X, 40X (spring) / √ | √ | √ | √ | √ |
| Eyepiece / Wide field eyepieces WF10X(WF25X or WF20X, WF16X or H16X optional) / √ | √ | √ | √ | √ |
| Viewing Head / Monocular / √ | √ | √ | √ | √ |
| Nosepiece / Triple / √ | √ | √ | √ | √ |
| Stage / Plain stage with paired clips / √ | √ | √ | √ | √ |
| Stage / Plain stage with moving scale / ● | ● | ● | ● | ● |
| Focusing / Coarse adjustment focusing / √ | √ | √ | √ | √ |
| Focusing / Coaxial coarse and fine adjustment focusing / / | / | ● | ● | / |
| Illumination &Condenser / Rotating disc diaphragm / √ | √ | / | / | √ |
| Illumination &Condenser / N.A=0.65 abbe condenser &rotating disc diaphragm / / | / | √ | √ | / |
| Illumination &Condenser / Flat concave reflector / / | / | / | / | / |
| Illumination &Condenser / Electric light source top LED (incandescent optional) / / | / | / | / | / |
| Illumination &Condenser / Electric light source bottom LED (incandescent optional) / / | / | / | / | / |
| Illumination &Condenser / Electric light source top and bottom LED (incandescent optional) / √ | √ | √ | √ | √ |
| Power / Power: battery / √ | √ | √ | √ | √ |
| Power / AC Input 100~240V 50/60Hz, DC output 5V / / | / | √ | √ | √ |
| Package Size(W*D*H)mm / 160*220*300 | 160*220*300 | 160*220*300 | 160*220*300 | 160*220*300 |
| Gross Weight(kg) / 1.8 | 1.8 | 2.5 | 2.5 | 2 |
| Model | BM-T300 | BM-T300 | BM-T310 | BM-T310 |
| Objectives / Achromatic Objectives: 4X, 10X, 40X(S), 100X(S, Oil) | √ | √ | √ | √ |
| Objectives / Plan Objectives: 4X, 10X, 40X(S), 100X(S, Oil) | ● | ● | ● | ● |
| Objectives / Infinite Achromatic Objectives: 4X, 10X, 40X(S), 100X(S, Oil) | ● | ● | ● | ● |
| Objectives / Infinite Plan Objectives: 4X, 10X, 40X(S), 100X(S, Oil) | ● | ● | ● | ● |
| Eyepiece / Wide Field Eyepiece: WF10X(18mm), (WF10X 20MM、WF16X optional) | √ | √ | √ | √ |
| Viewing Head / Compensation Free Binocular Head, Inclined at 30° | √ | √ | / | / |
| Viewing Head / Compensation Free Trinocular Head, Inclined at 30° | / | / | √ | √ |
| Nosepiece / Quadruple | √ | √ | √ | √ |
| Stage / Double Layer Mechanical Stage Size 140*205mm, Moving Range 77*50mm | √ | √ | √ | √ |
| Focusing / Coaxial Coarse and Fine Adjustment, Focusing Range 30mm, Focusing Interval 0.002mm | √ | √ | √ | √ |
| Condenser / Abbe NA=1.25 with iris diaphragm &filter | √ | √ | √ | √ |
| Illumination / High LED light source | √ | √ | √ | √ |
| Power / AC Input 100~240V 50/60Hz, DC output 12V | √ | √ | √ | √ |
| Package Size(W*D*H)mm | 485*335*255 | 485*335*255 | 485*335*255 | 485*335*255 |
| Gross Weight(kg) | 7.5 | 7.5 | 8 | 8 |
Manufacturer catalogue checked 2026-09-28.
