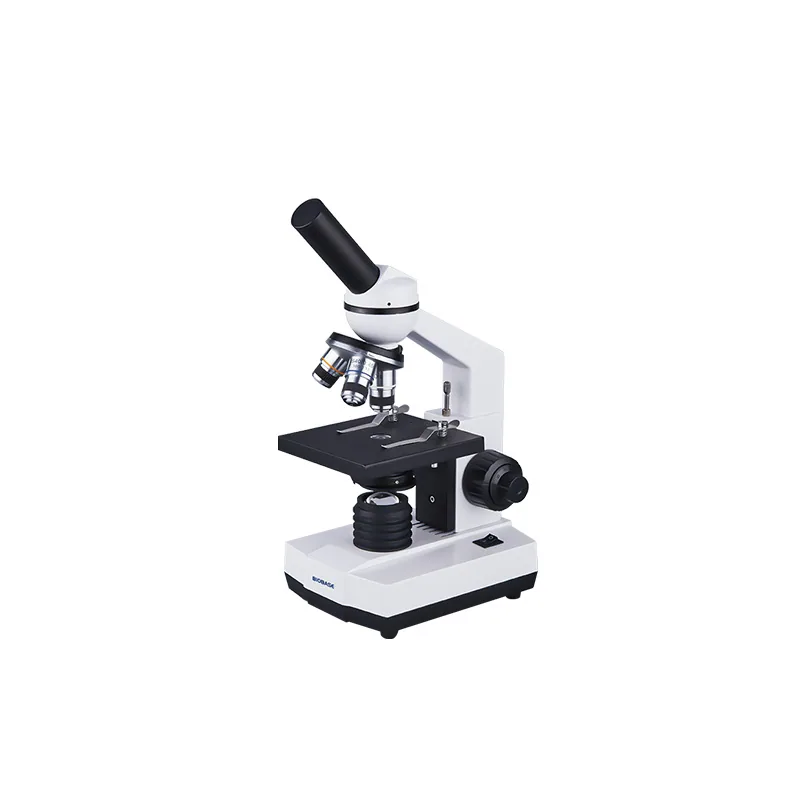

BIOBASE Biological Microscope BM-B100 BM-B101 BM--B102 BM-B103 BM-B104 BM-B105 BM-B106 BM-B108

Brand: BIOBASE | Category: Scientific & Laboratory Equipment

BIOBASE Biological Microscope BM-B100 BM-B101 BM--B102 BM-B103 BM-B104 BM-B105 BM-B106 BM-B108 is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BM-B100, BM-B101, BM--B102, BM-B103, BM-B104, BM-B105. Compare the remaining models in the specification tables. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.

Model specifications

Compare each model column separately. Confirm options and included accessories in your quotation.

Manufacturer specifications

Model	BM-B100	BM-B101	BM--B102	BM-B103	BM-B104	BM-B105	BM-B106	BM-B108
Eyepiece / Wide Field Eyepieces WF10X(WF16X or H16X optional)	√	√	√	√	√	√	√	√
Viewing Head / Monocular	√	√	\	\	\	\	\	\
Viewing Head / Monocular with video teaching head	\	\	√	√	\	\	\	\
Viewing Head / Compensation free binocular head	\	\	\	\	√	√	\	\
Viewing Head / Compensation free trinocular head	\	\	\	\	\	\	√	√
Objective / 4X(spring)	√	√	●	√	√	√	√	√
Objective / 10X(spring)	√	√	√	√	√	√	√	√
Objective / 40X(spring)	√	√	√	√	√	√	√	√
Objective / 100X(spring, oil)	●	√	√	√	√	√	√	√
Nosepiece / Triple Nosepiece	√	●	√	●	●	●	●	●
Nosepiece / Quadruple Nosepiece	●	√	●	√	√	√	√	√
Stage / Double layer mechanical stage; Size: 110*125mm	\	√	\	√	\	√	\	√
Stage / Plain Stage with paired clips	√	\	●	\	●	\	●	\
Stage / Plain Stage with moving scale	●	\	√	\	√	\	√	\
Focusing / Coaxial Coarse and Fine Adjustment, Focusing Range 20mm	√	√	√	√	√	√	√	√
Condenser / N.A.=1.25 Abbe condenser&Iris diaphragm(optional)	●	√	●	√	√	√	√	√
Condenser / N.A.=0.65 Abbe condenser&Iris diaphragm	√	\	√	\	●	\	●	\
Illumination / Electric light source LED	√	√	√	√	√	√	√	√
Diaphragm / Rotating disc diaphragm	●	\	\	\	\	\	\	\
Power Supply / AC Input 100~240V 50/60Hz, DC Output 12V	√	√	√	√	√	√	√	√
Package Size(W*D*H)mm	210*280*400	210*280*400	210*280*400	210*280*400	270*310*410	270*310*410	270*310*410	270*310*410
Gross Weight(kg)	3	3.5	3.5	4	4	4.5	4.5	4.8

Manufacturer catalogue checked 2026-09-28.
