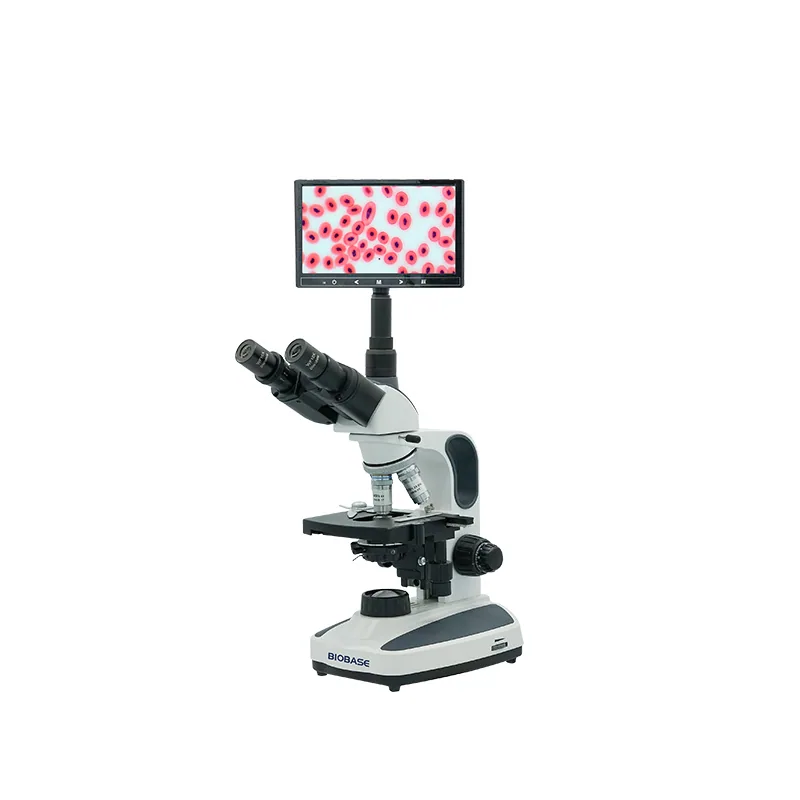

BIOBASE Biological Microscope BM-2CBAD BM-2CBAP BM-8CAD BM-8CAP
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Biological Microscope BM-2CBAD BM-2CBAP BM-8CAD BM-8CAP is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BM-2CBAD, BM-2CBAP, BM-8CAD, BM-8CAP. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BM-2CBAD | BM-2CBAP | BM-8CAD | BM-8CAP |
|---|---|---|---|---|
| Viewing Head | Trinocular head, inclined at 30°, 360° rotatable, Interpupillary 48~75mm, Mechanical tube length 160mm | Trinocular head, inclined at 30°, 360° rotatable, Interpupillary 48~75mm, Mechanical tube length 160mm | Trinocular head, inclined at 30°, 360° rotatable, Interpupillary 48~75mm, Mechanical tube length 160mm | Trinocular head, inclined at 30°, 360° rotatable, Interpupillary 48~75mm, Mechanical tube length 160mm |
| Eyepiece | WF10X/18mm, WF16X/11mm | WF10X/18mm, WF16X/11mm | WF10X/18mm, WF16X/11mm | WF10X/18mm, WF16X/11mm |
| Objective | 4X N.A=0.10 WD=37.5mm 10X N.A=0.25 WD=7.31mm 40X N.A=0.65 WD=0.63mm 100X(Oil) N.A=1.25 WD=0.18mm | 4X N.A=0.10 WD=37.5mm 10X N.A=0.25 WD=7.31mm 40X N.A=0.65 WD=0.63mm 100X(Oil) N.A=1.25 WD=0.18mm | 4X N.A=0.10 WD=37.5mm 10X N.A=0.25 WD=7.31mm 40X N.A=0.65 WD=0.63mm 100X(Oil) N.A=1.25 WD=0.18mm | 4X N.A=0.10 WD=37.5mm 10X N.A=0.25 WD=7.31mm 40X N.A=0.65 WD=0.63mm 100X(Oil) N.A=1.25 WD=0.18mm |
| Stage | Mechanical Stage 130*125mm, Moving Range 70*30mm, Cursors 0.1mm | Mechanical Stage 130*125mm, Moving Range 70*30mm, Cursors 0.1mm | Mechanical Stage 140*140mm, Moving Range 75*40mm, Cursors 0.1mm | Mechanical Stage 140*140mm, Moving Range 75*40mm, Cursors 0.1mm |
| Focusing | Coaxial Coarse & Fine Adjustable System, Range 15mm, Fine Division 0.002mm | Coaxial Coarse & Fine Adjustable System, Range 15mm, Fine Division 0.002mm | Coaxial Coarse & Fine Adjustable System, Range 30mm, Fine Division 0.002mm | Coaxial Coarse & Fine Adjustable System, Range 30mm, Fine Division 0.002mm |
| Condenser | N.A.1.25 Adjustable Medium Abbe condenser with variable light bar | N.A.1.25 Adjustable Medium Abbe condenser with variable light bar | N.A.1.25 Adjustable Medium Abbe condenser with variable light bar | N.A.1.25 Adjustable Medium Abbe condenser with variable light bar |
| Filter | Blue, yellow, green | Blue, yellow, green | Blue, yellow, green | Blue, yellow, green |
| Illumination | LED dual-color light source, adjustable brightness | LED dual-color light source, adjustable brightness | LED dual-color light source, adjustable brightness | LED dual-color light source, adjustable brightness |
| Imaging System | Digital CMOS camera, 2M pixels, with geometric measurement and analysis software, C interface | 9-inch large screen display | Digital CMOS camera, 5M pixels, with geometric measurement and analysis software, MCL-Z adapter lens | 10.5-inch screen Android tablet with special adapter lens |
| Power Supply | AC85~240V, 50/60Hz | AC85~240V, 50/60Hz | AC85~240V, 50/60Hz | AC85~240V, 50/60Hz |
| Package Size (W*D*H) | 355*245*590mm | 365*255*610mm | 425*330*450mm | 425*330*450mm |
| Net Weight | 6kg | 6kg | 8kg | 10kg |
| Gross Weight | 6.5kg | 6.5kg | 8.5kg | 10.5kg |
Manufacturer catalogue checked 2026-09-28.
