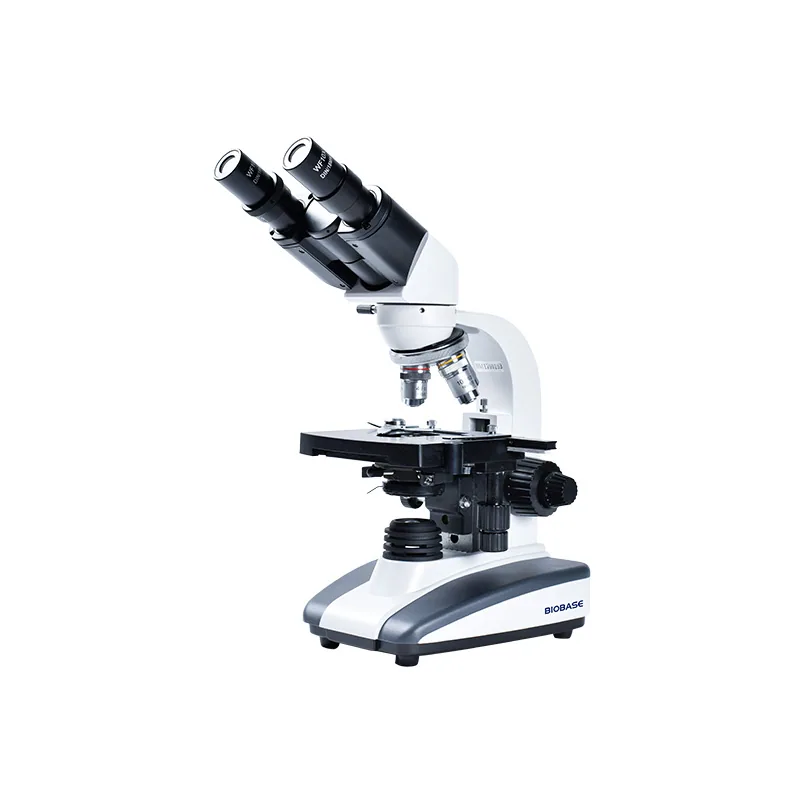

BIOBASE Biological Microscope BM-2CA BM-2CBA
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Biological Microscope BM-2CA BM-2CBA is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BM-2CA, BM-2CBA. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BM-2CA | BM-2CBA |
|---|---|---|
| View Head | Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 48~75mm | Compensation free trinocular head, Inclined at 30°, 360°rotatable, Interpupillary 48~75mm |
| Eyepiece | WF10X/18mm, WF16X/11mm | WF10X/18mm, WF16X/11mm |
| Achromatic Objective | 4X N.A=0.10 WD=37.50mm | 4X N.A=0.10 WD=37.50mm |
| Achromatic Objective | 10X N.A=0.25 WD=7.31mm | 10X N.A=0.25 WD=7.31mm |
| Achromatic Objective | 40X N.A=0.65 WD=0.63mm | 40X N.A=0.65 WD=0.63mm |
| Achromatic Objective | 100X(Oil) N.A=1.25 WD=0.18mm | 100X(Oil) N.A=1.25 WD=0.18mm |
| Focusing | Coaxial Coarse＆Fine Adjustable System, Range 15mm, Fine Division 0.002mm | Coaxial Coarse＆Fine Adjustable System, Range 15mm, Fine Division 0.002mm |
| Stage | Mechanical Stage 130*130mm, Moving Range 70*30mm, Vernier 0.1mm | Mechanical Stage 130*125mm, Moving Range 70*30mm, Vernier 0.1mm |
| Condenser | Abbe NA1.25 condenser with Iris Diaphragm＆Filter | Abbe NA1.25 condenser with Iris Diaphragm＆Filter |
| Illumination | LED dual-color light source, adjustable brightness | LED dual-color light source, adjustable brightness |
| Filter | Yellow, green, blue | Yellow, green, blue |
| Power Supply | AC85~240V, 50/60Hz | AC85~240V, 50/60Hz |
| Package Size(W*D*H) | 435*330*235mm | 335*215*470mm |
| Gross Weight | 5.5kg | 5.5kg |
Manufacturer catalogue checked 2026-09-28.
