Brand: BIOBASE | Category: Scientific & Laboratory Equipment

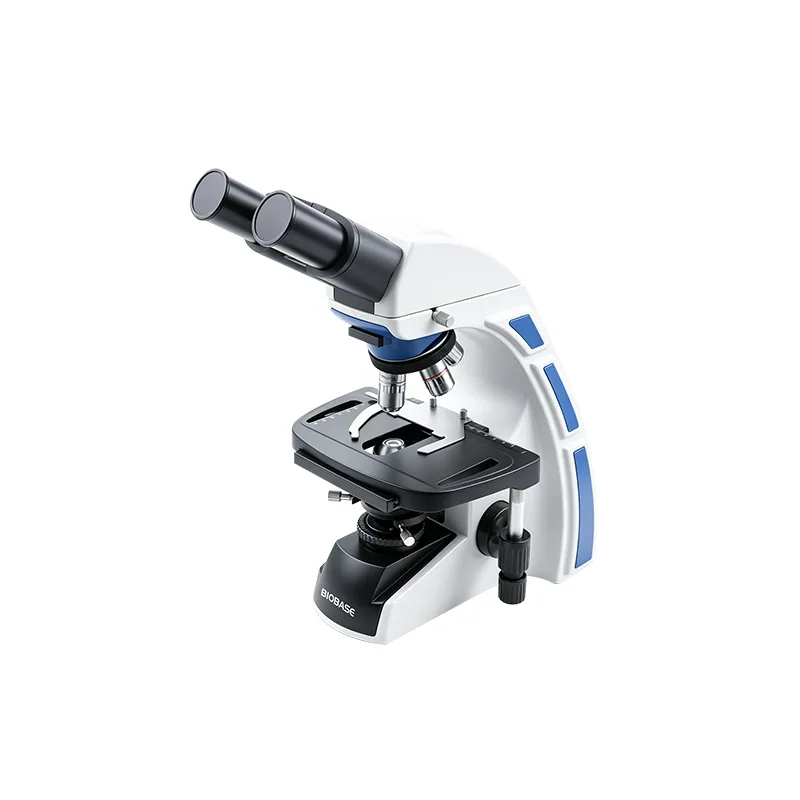

BIOBASE Biological Microscope BBM-7130B BBM-7130C is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BBM-7130B, BBM-7130C. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BBM-7130B | BBM-7130C |
|---|---|---|
| Optical System | Infinite optical system | Infinite optical system |
| View Head | Seidentopf binocular head, inclined at 30°, 360° rotatable, interpupillary 48~75mm | Seidentopf trinocular head, inclined at 30°, 360° rotatable, interpupillary 48~75mm |
| Eyepiece | PL10X/22mm | PL10X/22mm |
| Infinite Plan Achromatic Objective | 4X, 10X, 40X(Spring), 100X(Spring, oil) | 4X, 10X, 40X(Spring), 100X(Spring, oil) |
| Nosepiece | Inward quadruple nosepiece | Inward quadruple nosepiece |
| Focusing | Double-sided coaxial coarse and fine adjustment, cross roller guide mechanism; coarse adjustment range: 25mm; fine adjustment increment: 0.002mm | Double-sided coaxial coarse and fine adjustment, cross roller guide mechanism; coarse adjustment range: 25mm; fine adjustment increment: 0.002mm |
| Stage | Mechanical stage 220*148mm, moving range 75*50mm | Mechanical stage 220*148mm, moving range 75*50mm |
| Condenser | Abbe-type NA=1.25, φ2~30mm variable aperture | Abbe-type NA=1.25, φ2~30mm variable aperture |
| Illumination | 3W LED light, adjustable brightness | 3W LED light, adjustable brightness |
| Filter | Blue | Blue |
| Power Supply | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz |
| Packing Size(W*D*H) | 360*310*470mm | 360*310*470mm |
| Gross Weight | 8kg | 8kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
