Brand: BIOBASE | Category: Medical Equipment

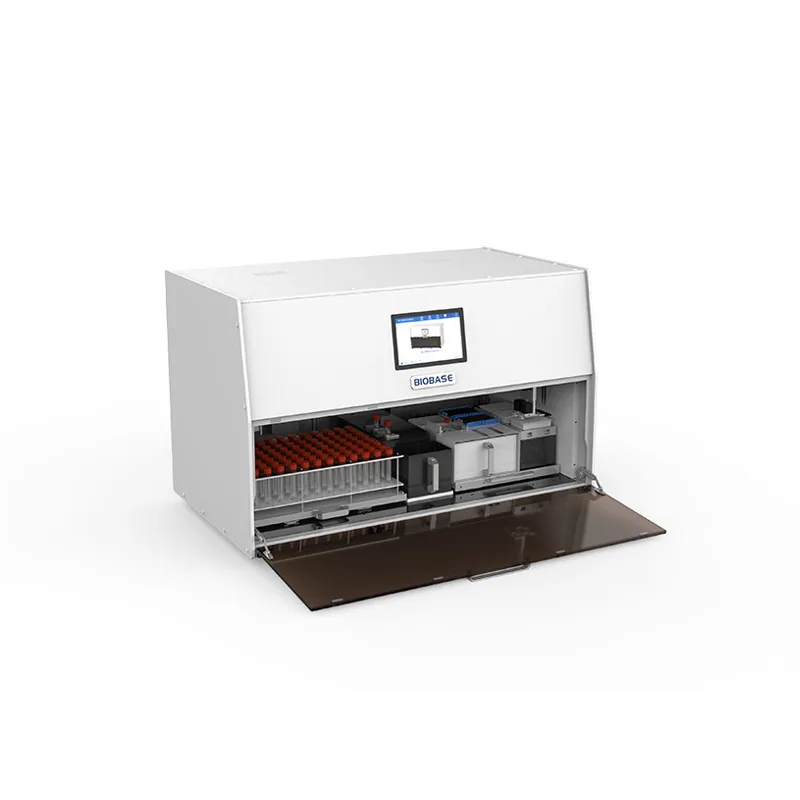

BIOBASE Automated Sample Processing System BK-PR96 is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: BK-PR96. Published details include Pipetting Volume: 5~1000μl. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-PR96 |
|---|---|
| Throughput | 1~96 |
| Processing Time | 96 samples/25min |
| Sample Type | Plasma, serum, whole blood, swab solution and other samples |
| Sample Rack | 1pc(Compatible with a variety of sampling tubes) |
| Robot Arm | 2pcs(Dispensation arm and screw cap arm) |
| Clamping Arm | 2pcs, independence movement |
| Pipetting Method | Specific mechanical pipetting fluids |
| Plate Position | 3pcs(Compatible with multi-specification deep-well plates) |
| Tip Position | 3pcs(Including tip waste box position) |
| Reagent Rack | Yes, 4*4 reagent carrier, can hold bullet cryotube |
| Pollution Prevention&Control; | External droplet capture tray design Aanti-aerosol cross-pollution device UV light Air-tight and anti-drip design |
| Liquid Detection | Pneumatic liquid level detection principle, intelligent detection of blocked needle |
| Pipetting Volume | 5~1000μl |
| Pipetting Accuracy | 20μl, CV≤2%, Accuracy≤5.0%, 50μl tip |
| Pipetting Accuracy | 1000μl, CV≤0.5%, Accuracy≤1.0%, 1000μl tip |
| Power Supply | Standard: 220V, 50/60Hz; Optional: 110V, 50/60Hz |
| Power | 350W |
| External Size(W*D*H) | 1180*680*760mm |
| Net Weight | 105kg |
| Package Size(W*D*H) | Main instrument: 1293*793*970mm Accessory 1: 645*185*440mm Accessory 2: 645*185*440mm |
| Gross Weight | Main instrument: 156kg Accessory 1: 6.1kg Accessory 2: 4kg |
Manufacturer catalogue checked 2026-09-28.
