Brand: BIOBASE | Category: Medical Equipment

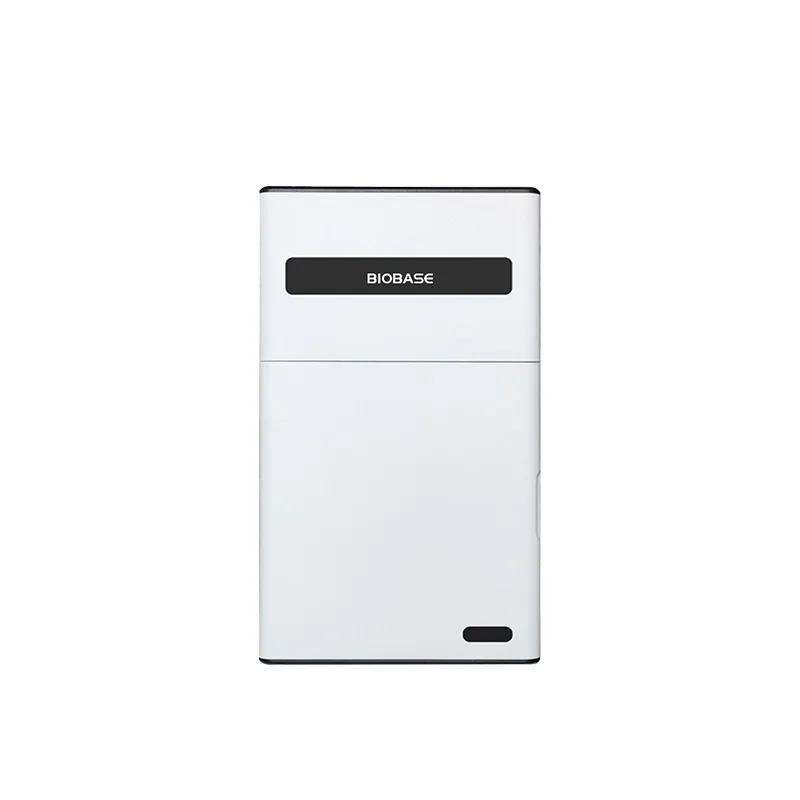

BIOBASE Automatic Chemiluminescence Gel Imaging System BK-ACG600 BK-ACG900 is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: BK-ACG600, BK-ACG900. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-ACG600 | BK-ACG900 |
|---|---|---|
| Camera Resolution | 9.0MP | 12.0MP |
| Cooling Temperature | -65℃ | -65℃ |
| Photosensitive Efficiency | 95% | 95% |
| Pixel Size | 3.75*3.75μm | 4.63*4.63μm |
| Exposure Time | 1ms~60min | 1ms~60min |
| Pixel Density | 16 Bits(0~65535) | 16 Bits(0~65535) |
| OD | ≥4.8OD | ≥4.8OD |
| Lens | Standard: F=0.95, 25mm; Optional: F=0.8, 25mm | Standard: F=0.95, 25mm; Optional: F=0.8, 25mm |
| UV Transmission | 302nm | 302nm |
| White Light Reflection | LED reflection(cold light) | LED reflection(cold light) |
| Filter | Standard 590nm, other optional | Standard 590nm, other optional |
| Shooting Area | 32*26cm | 32*26cm |
| Timer Shut Down | 1~60min | 1~60min |
| Power Supply | 100~240V, 50/60Hz | 100~240V, 50/60Hz |
| Packing Size | 490*515*845mm | 490*515*845mm |
| Gross Weight | 40kg | 40kg |
Manufacturer catalogue checked 2026-09-28.
