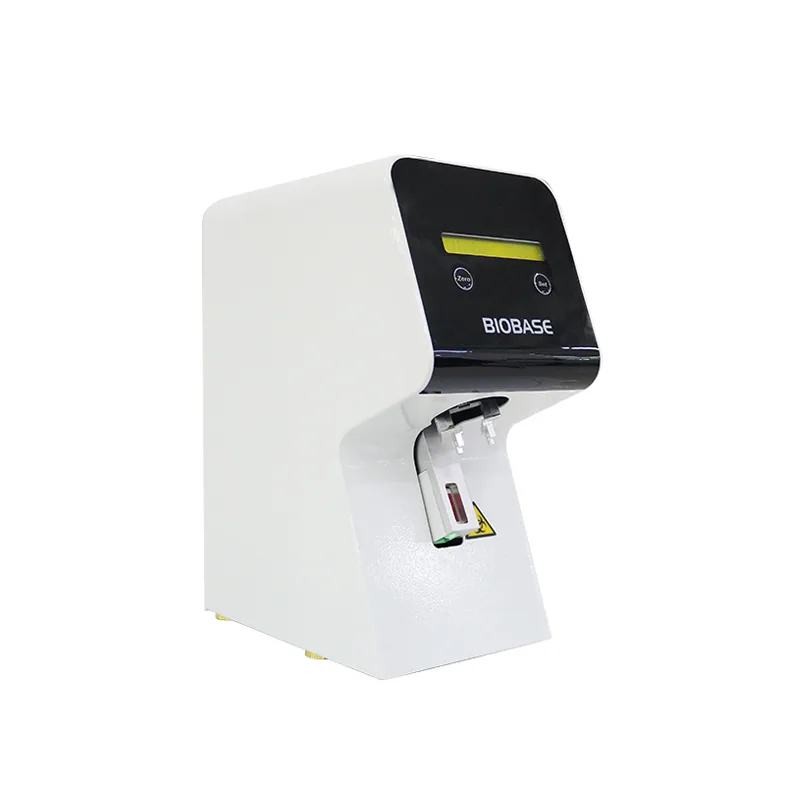

Brand: BIOBASE | Category: Medical Equipment
BIOBASE Automatic Capping Machine is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: BK-AC10. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-AC10 |
|---|---|
| Channel | Single |
| Open Type | Screw capping |
| Speed | <1.8s |
| Display | LCD1601 |
| Sensing Method | Diffuse reflection |
| External Size(W*D*H) | 164*295*363mm |
| Net Weight | 7.8kg |
| Standard Accessory | Gripper B, Diffuse reflection sensor |
| Optional Accessory | Foot switch, Gripper A/C/ D |
| Other Function | With counting function |
| Power Supply | AC100~240V, 50/60Hz, 40VA |
| Package Size(W*D*H) | 320*280*365mm |
| Gross Weight | 12.05kg |
| Gripper Number | Gripper A | Gripper B | Gripper C | Gripper D |
|---|---|---|---|---|
| Running Distance | 0~6mm | 0~6mm | 0~6mm | 0~6mm |
| Cap Compatibility | 13~18mm | 19.5~24mm | 24.5~29.5mm | 31~36mm |
Manufacturer catalogue checked 2026-09-28.
