Brand: BIOBASE | Category: Medical Equipment

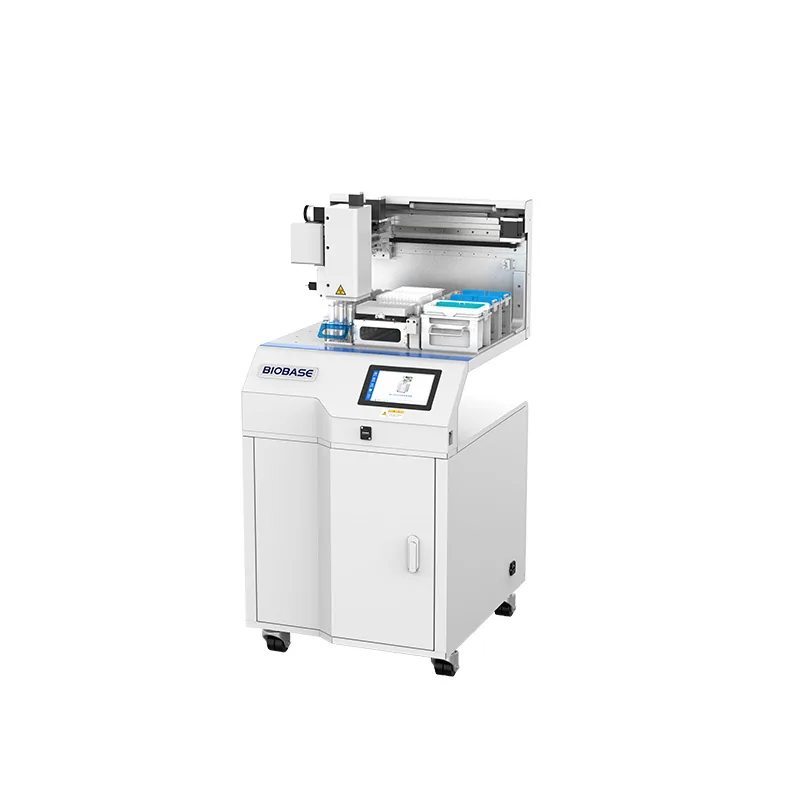

BIOBASE Automated Sample Processing System is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: BK-PR32, BK-PR48. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-PR32 | BK-PR48 |
|---|---|---|
| Throughput | 1~32 | 1~48 |
| Processing Time | 32 samples/10min | 96 samples/16min |
| Sample Type | Plasma, serum, whole blood, swab solution and other samples | Plasma, serum, whole blood, swab solution and other samples |
| Sample Rack | 1pc, 3*12 with locking device(compatible with a variety of sampling tubes) | 1pc, 6*8 with locking device(compatible with a variety of sampling tubes) |
| Robot Arm | 1pc(Dispensation arm) | 2pcs(Dispensation arm and screw cap arm) |
| Plate Position | 2pcs(Compatible with l-shaped and square boards) | 3pcs(Compatible with multi-specification deep-well plates) |
| Tip Position | 3pcs(Including tip waste box position) | 3pcs(Including tip waste box position) |
| Reagent Rack | 1pc(4*2ml centrifuge tube+4*2ml freezing tube+4*5ml freezing tube) | 1pc(4*2ml centrifuge tube+4*2ml freezing tube+4*5ml freezing tube) |
| Protective Function | Can be used in a biological safety cabinet; External droplet catch tray design; With air-tight and anti-drip design | Can be used in a biological safety cabinet; External droplet catch tray design; With air-tight and anti-drip design |
| Liquid Detection | Pneumatic liquid level detection principle, intelligent detection of blocked needle | Pneumatic liquid level detection principle, intelligent detection of blocked needle |
| Pipetting Volume | 5~1000μl(1000/50μl tip) | 5~1000μl(1000/50μl tip) |
| Pipetting Accuracy | 10μl, CV≤1.5%, Accuracy≤6.0%, 50μl tip; 50μl, CV≤1.0%, Accuracy≤2.0%, 1000μl tip; 100μl, CV≤0.5%, Accuracy≤2.0%, 1000μl tip | 10μl, CV≤1.5%, Accuracy≤6.0%, 50μl tip; 50μl, CV≤1.0%, Accuracy≤2.0%, 1000μl tip; 100μl, CV≤0.5%, Accuracy≤2.0%, 1000μl tip |
| Power Supply | 220V, 50/60Hz; 110V, 60Hz | 220V, 50/60Hz; 110V, 60Hz |
| External Size(W*D*H) | 540*680*1113mm | 827*794*1232mm |
| Net Weight | 56kg | 100kg |
| Package Size(W*D*H) | 670*810*1314mm | Main Instrument: 855*855*747mm Base Cabinet: 960*925*975mm |
| Gross Weight | 76kg | Main Instrument: 75kg; Base Cabinet: 65kg |
Manufacturer catalogue checked 2026-09-28.
