Brand: BIOBASE | Category: Medical Equipment

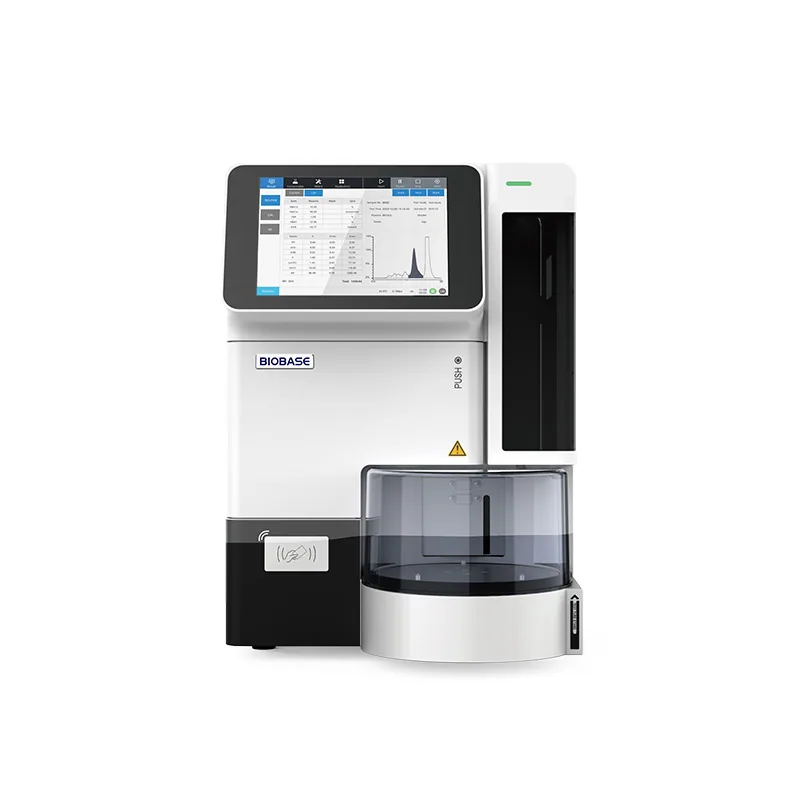

BIOBASE Automated Glycohemoglobin Analyzer AH-600Pro is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: AH-600Pro. Published details include Measurement range: HbA1c: 3%~20%; Sample Volume: Whole blood: 3μL, diluted blood: 4μL. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Items | Results | Unit |
|---|---|---|
| HbA1c | 10.78 | % |
| HbA1c | 94.34 | mmol/mol |
| HbF | 1.10 | % |
| HbA1 | 12.28 | % |
| Name | % | Time | Area |
|---|---|---|---|
| FP | 0.09 | 0.17 | 0.87 |
| A1A | 0.66 | 0.23 | 6.34 |
| A1B | 0.8 | 0.29 | 8.05 |
| F | 1.10 | 0.37 | 10.57 |
| LA1C+ | 1.57 | 0.48 | 15.02 |
| SA1C | 10.78 | 0.59 | 87.82 |
| A0 | 86.65 | 0.79 | 892.90 |
| ; | Low | High |
|---|---|---|
| Mean | 5.1% | 10.1% |
| SD | 0.05 | 0.05 |
| CV | 0.94% | 0.51% |
| ; | Low | High |
|---|---|---|
| Mean | 5.1% | 10.2% |
| SD | 0.04 | 0.06 |
| CV | 0.87% | 0.56% |
| Model | AH-600Pro |
|---|---|
| Measurement Principle | Ion-exchange HPLC |
| Test Mode | Standard mode/Variant mode |
| Throughput | Standard mode: 60s/test Variant mode: 96s/test |
| Items | Standard mode: FP, A1A, A1B, F, LA1C+, SA1C, A0 Variant mode: With additional HbS, HbC, HbD, HbE |
| Measurement range | HbA1c: 3%~20% |
| Repeatability | CV≤1.0% |
| Sample Type | Whole blood and diluted blood |
| Sample Volume | Whole blood: 3μL, diluted blood: 4μL |
| Sample Management | LIS loading, barcode scanning |
| Sample Position | 20 samples (2 carousel sampler, each carousel sampler can load 20 samples) |
| Sampling Method | Carousel sampler loading, puncture aspiration |
| Result Report Form | Graphic report: both chromatogram and test result |
| HbA1c Report Form | In both graphic and value repot with IFCC(mmol/mol) and NGSP(%) results |
| Consumable | Elution buffer, hemolysis & wash solution, column, filter, calibrator, control |
| Reagent Management | RFID scanning, automatically loading info of lot, expiry date and remains, etc. |
| Operation Interface | 8 inches touch screen |
| Storage Capacity | 100,000 results. Available for statistics, online queries, data backup, data export |
| Export &Communication | Bi-directional LIS, USB port, Ethernet interface, Built-in thermal printer |
| Maintenance | Automatic maintenance in startup and off, alarm and error indication, daily maintenance reminder & guidance |
| Power Supply | AC100~240V, 50/60Hz |
| Product Size(W*D*H) | 306*466*435mm |
| Net Weight | 20kg |
| Packing Size(W*D*H) | 560*460*700mm |
| Gross Weight | 28kg |
| Reagent | Qty | Specification |
|---|---|---|
| Eluent 1 | 1 Bottle | 800ml/Bottle, room temperature |
| Eluent 2 | 1 Bottle | 800ml/Bottle, room temperature |
| Eluent 3/4 | 1 Bottle | 800ml/Bottle, room temperature |
| Hemolysis &Wash Solution | 1 Bottle | 2000ml/Bottle, room temperature |
| Chromatography Column | 1 Piece | 1 Column/Kit, 4~15℃ |
| Filter | 1 Piece | 600 Tests/Change, room temperature |
| Calibrator | 1 Kit | 1 Vial*Level 1+1 Vial*Level 2 4mL/vial, 2~8℃ |
| Quality Control | 1 Kit | 1 Vial*Level 1+1 Vial * Level 2 0.5mL/vial, 2~8℃ |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
Clinical Analysers & Diagnostics by BIOBASE. Compare the test menu, samples per day, reagent compatibility and quality-control workflow.
Measurement Range: HbA1c: 3%~20%; Sample Loading Capacity: 10 samples/rack*9 racks. Continuous circulating rack sampling system. Compare the test menu, samples per day, reagent compatibility and quality-control workflow.
Pipetting Volume: 5~1000μl. Compare the test menu, samples per day, reagent compatibility and quality-control workflow.
