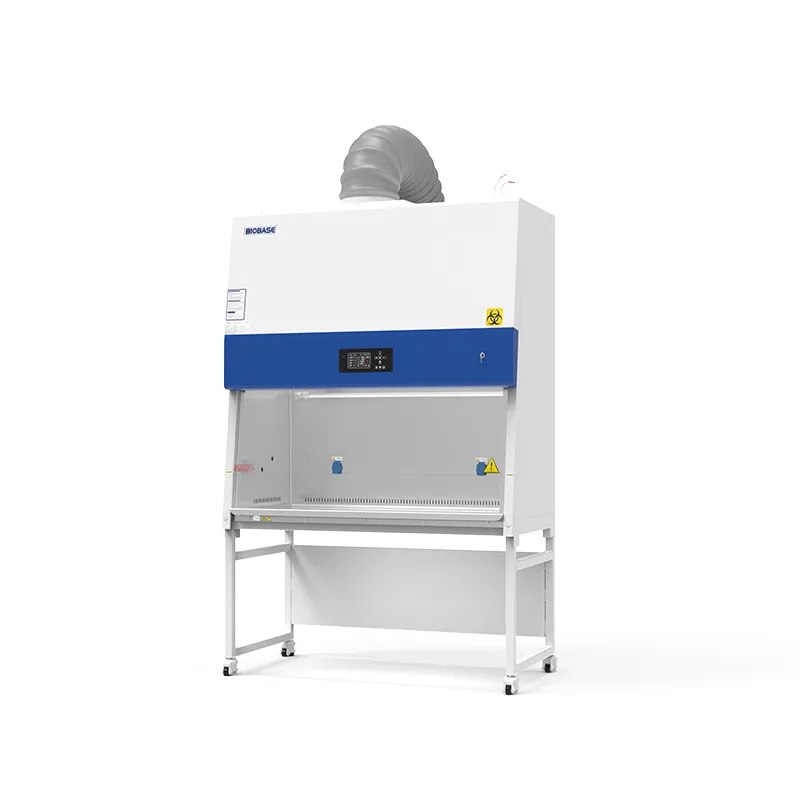

BIOBASE AC Series Class II B2 Biological Safety Cabinet BSC-1100IIB2-X BSC-1300IIB2-X BSC-1500IIB2-X BSC-1800IIB2-X
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE AC Series Class II B2 Biological Safety Cabinet BSC-1100IIB2-X BSC-1300IIB2-X BSC-1500IIB2-X BSC-1800IIB2-X is listed in VVON's biosafety cabinets range for Bangladesh. Published models: BSC-1100IIB2-X, BSC-1300IIB2-X, BSC-1500IIB2-X, BSC-1800IIB2-X. Compare cabinet class, usable width, exhaust arrangement and installation requirements. For a quotation, send the sample workflow, required cabinet class, working width and room ventilation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BSC-1100IIB2-X | BSC-1300IIB2-X | BSC-1500IIB2-X | BSC-1800IIB2-X |
|---|---|---|---|---|
| External Size(W*D*H) | 1100*775*2250mm | 1300*775*2250mm | 1500*775*2250mm | 1800*775*2250mm |
| Internal Size(W*D*H) | 940*600*660mm | 1150*600*660mm | 1350*600*660mm | 1625*600*660mm |
| Tested Opening | Safety height 200mm(8") | Safety height 200mm(8") | Safety height 200mm(8") | Safety height 200mm(8") |
| Max Opening | 480mm | 480mm | 480mm | 480mm |
| Inflow Velocity | 0.53±0.025m/s | 0.53±0.025m/s | 0.53±0.025m/s | 0.53±0.025m/s |
| Downflow Velocity | 0.33±0.025m/s | 0.33±0.025m/s | 0.33±0.025m/s | 0.33±0.025m/s |
| ULPA Filter | Two, 99.9995% efficiency at 0.12μm, filter life indicator | Two, 99.9995% efficiency at 0.12μm, filter life indicator | Two, 99.9995% efficiency at 0.12μm, filter life indicator | Two, 99.9995% efficiency at 0.12μm, filter life indicator |
| Front Window | Motorized. Two-layer laminated toughened glass≥6mm. Anti UV | Motorized. Two-layer laminated toughened glass≥6mm. Anti UV | Motorized. Two-layer laminated toughened glass≥6mm. Anti UV | Motorized. Two-layer laminated toughened glass≥6mm. Anti UV |
| Noise | ≤65dB | ≤65dB | ≤65dB | ≤65dB |
| UV Lamp | 30W*1 | 30W*1 | 40W*1 | 40W*1 |
| UV Lamp | UV timer, UV life indicator, emission of 235.7 nanometers for most efficient decontamination | UV timer, UV life indicator, emission of 235.7 nanometers for most efficient decontamination | UV timer, UV life indicator, emission of 235.7 nanometers for most efficient decontamination | UV timer, UV life indicator, emission of 235.7 nanometers for most efficient decontamination |
| LED Lamp | 12W*2 | 14W*2 | 16W*2 | 16W*2 |
| Illumination | ≥1000Lux | ≥1000Lux | ≥1000Lux | ≥1000Lux |
| Consumption | 1300W | 1300W | 1300W | 1300W |
| Waterproof Socket | Two, total load of two sockets: 500W | Two, total load of two sockets: 500W | Two, total load of two sockets: 500W | Two, total load of two sockets: 500W |
| Display | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc. | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc. | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc. | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time etc. |
| Control System | Microprocessor | Microprocessor | Microprocessor | Microprocessor |
| Airflow System | 0% air recirculation, 100% air exhaust | 0% air recirculation, 100% air exhaust | 0% air recirculation, 100% air exhaust | 0% air recirculation, 100% air exhaust |
| Visual and Audio Alarm | Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm, abnormal power failure | Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm, abnormal power failure | Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm, abnormal power failure | Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm, abnormal power failure |
| Material | Work Zone: 304 stainless steel | Work Zone: 304 stainless steel | Work Zone: 304 stainless steel | Work Zone: 304 stainless steel |
| Material | Main Body: Cold-rolled steel with anti-bacteria powder coating | Main Body: Cold-rolled steel with anti-bacteria powder coating | Main Body: Cold-rolled steel with anti-bacteria powder coating | Main Body: Cold-rolled steel with anti-bacteria powder coating |
| Work Surface Height | 770mm(can be customized) | 770mm(can be customized) | 770mm(can be customized) | 800mm(Can be customized) |
| Caster | Footmaster caster | Footmaster caster | Footmaster caster | Footmaster caster |
| Power Supply | AC220V, 50/60Hz; 110V, 60Hz | AC220V, 50/60Hz; 110V, 60Hz | AC220V, 50/60Hz; 110V, 60Hz | AC220V, 50/60Hz; 110V, 60Hz |
| Standard Accessory | LED lamp 2pcs, UV lamp 2pcs, Base stand, Remote control, Foot switch, Drain valve, Waterproof socket 2pcs, Exhaust blower, Exhaust duct | LED lamp 2pcs, UV lamp 2pcs, Base stand, Remote control, Foot switch, Drain valve, Waterproof socket 2pcs, Exhaust blower, Exhaust duct | LED lamp 2pcs, UV lamp 2pcs, Base stand, Remote control, Foot switch, Drain valve, Waterproof socket 2pcs, Exhaust blower, Exhaust duct | LED lamp 2pcs, UV lamp 2pcs, Base stand, Remote control, Foot switch, Drain valve, Waterproof socket 2pcs, Exhaust blower, Exhaust duct |
| Optional Accessory | Water and gas tap, Electric height adjustable base stand, Armrest | Water and gas tap, Electric height adjustable base stand, Armrest | Water and gas tap, Electric height adjustable base stand, Armrest | Water and gas tap, Electric height adjustable base stand, Armrest |
| Gross Weight | 275kg; 58kg | 320kg; 63kg | 340kg; 63kg | 390kg; 72kg |
| Package / Main Body Exhaust Blower(W*D*H) | 1230*990*1840mm | 1430*990*1840mm | 1630*990*1840mm | 1930*990*1840mm |
| Package / Main Body Exhaust Blower(W*D*H) | 930*800*700mm | 930*860*740mm | 930*860*740mm | 930*860*740mm |
Manufacturer catalogue checked 2026-09-28.
