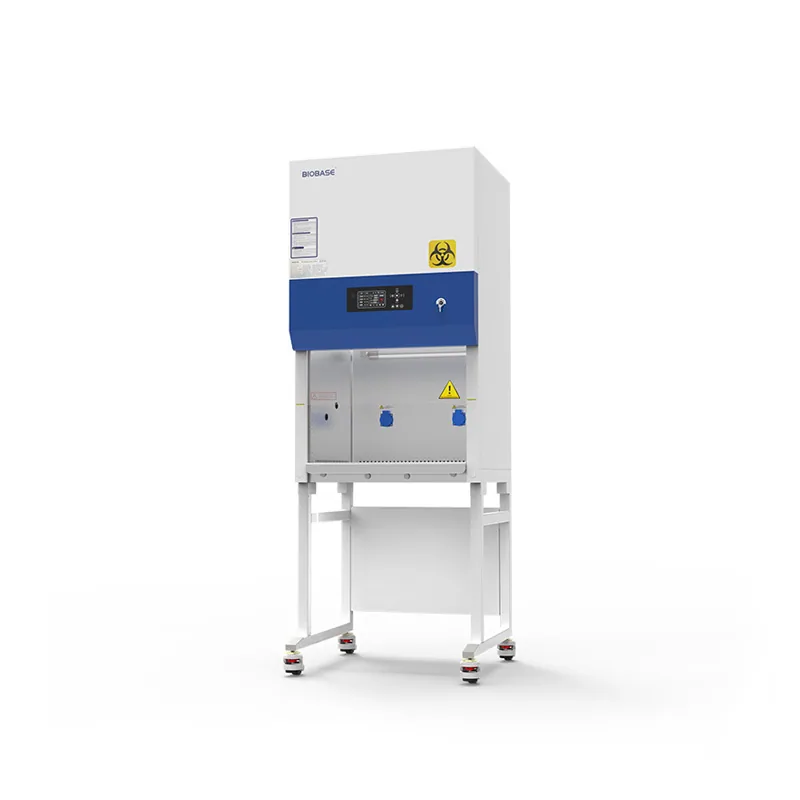

BIOBASE AC Series Class II A2 Biological Safety Cabinet BSC-700IIA2-Z
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE AC Series Class II A2 Biological Safety Cabinet BSC-700IIA2-Z is listed in VVON's biosafety cabinets range for Bangladesh. Published models: BSC-700IIA2-Z. Compare cabinet class, usable width, exhaust arrangement and installation requirements. For a quotation, send the sample workflow, required cabinet class, working width and room ventilation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BSC-700IIA2-Z |
|---|---|
| External Size(W*D*H) | 700*650*1920mm(700*650*1280mm without base stand) |
| Internal Size(W*D*H) | 600*500*540mm |
| Tested Opening | Safety height 200mm |
| Max Opening | 380mm |
| Inflow Velocity | 0.53±0.025m/s |
| Down Flow Velocity | 0.33±0.025m/s |
| ULPA Filter | Two, 99.9995% efficiency at 0.12μm, filter life indicator |
| Front Window | Motorized |
| Noise | ≤65dB |
| UV Lamp | 15W*1 UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination |
| LED Lamp | 8W*2 |
| Illumination | ≥1000Lux |
| Consumption | ≤500W |
| Socket | Two, total load of two sockets: 500W |
| Display | LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time, etc |
| Control System | 70% air recirculation, 30% air exhaust |
| Visual and Audio Alarm | Filter replacement, window over height, abnormal air flow velocity, high filter pressure alarm, abnormal power failure |
| Material | Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria power coating |
| Work Surface Height | 750mm with base stand |
| Power Supply | AC220V, 50/60Hz; 110V, 60Hz |
| Standard Accessory | Cabinet*1, LED lamp*2, UV lamp*2, Remote control, Drain valve*1, Waterproof socket*2, Foot swith |
| Optional Accessory | Water and gas tap, Electric height adjustable base stand, Armrest, Base stand*1 |
| Package Size(W*D*H) / Without Base Stand | 800*760*1470mm |
| Package Size(W*D*H) / With Base stand | 800*900*1470mm |
| Gross Weight / Without Base Stand | 130kg |
| Gross Weight / With Base stand | 154kg |
Manufacturer catalogue checked 2026-09-28.
