Brand: BIOBASE | Category: Scientific & Laboratory Equipment

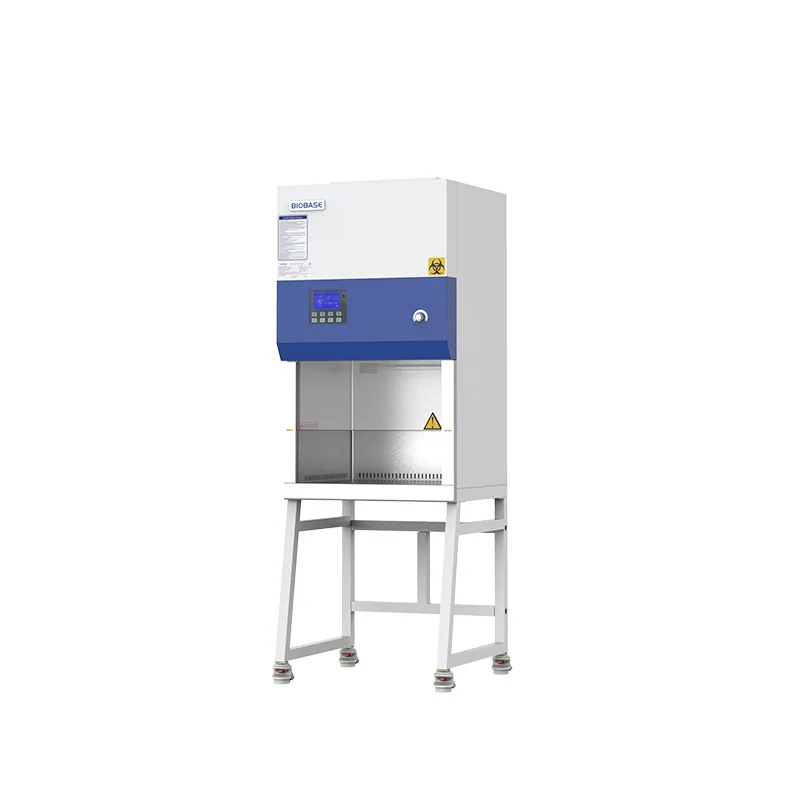

BIOBASE Basic Series Class ll A2 Biological Safety Cabinet is listed in VVON's biosafety cabinets range for Bangladesh. Published models: 11231 BBC 86. Compare cabinet class, usable width, exhaust arrangement and installation requirements. For a quotation, send the sample workflow, required cabinet class, working width and room ventilation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | 11231 BBC 86 |
|---|---|
| External Size(W*D*H) | 700*640*1230mm(without base stand) |
| Internal Size(W*D*H) | 600*500*530mm |
| Tested Opening | Safety height 200mm(8") |
| Max Opening | 370mm(15") |
| Inflow Velocity | 0.53±0.025m/s |
| Down Flow Velocity | 0.33±0.025m/s |
| ULPA Filter | Two, 99.9995% efficiency at 0.12μm. filter life indicator |
| Front Window | Double-sided laminated glass |
| Noise | ≤67dB |
| UV Lamp | 15W*1 UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination |
| LED Lamp | 8W*2 |
| Illumination | ≥1000Lux |
| Consumption | 500W |
| Socket | Two, total load of two sockets: 500W |
| Display | LCD display |
| Control System | Microprocessor |
| Airflow System | 70% air recirculation, 30% air exhaust |
| Visual and Audio Alarm | Filter replacement, window over height, abnormal air flow velocity, High filter pressure alarm |
| Material | Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria powder coating |
| Work Surface Height | 750mm with optional base stand |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| Standard Accessory | LED lamp*2, UV lamp*2, Remote control, Waterproof sockets*2 |
| Optional Accessory | SS Water tap*1, SS Gas tap*1, Base stand |
| Packing Size(without base stand) | Carton: 810*760*1430mm Wood: 850*810*1430mm |
| Gross Weight(without base stand) | Carton: 120kg Wood: 140kg |
| Package Size(with base stand) | Carton: 860*810*1430mm Wood: 970*850*1430mm |
| Gross Weight(with base stand) | Carton: 139kg Wood: 162kg |
Manufacturer catalogue checked 2026-09-28.
