Brand: BIOBASE | Category: Scientific & Laboratory Equipment

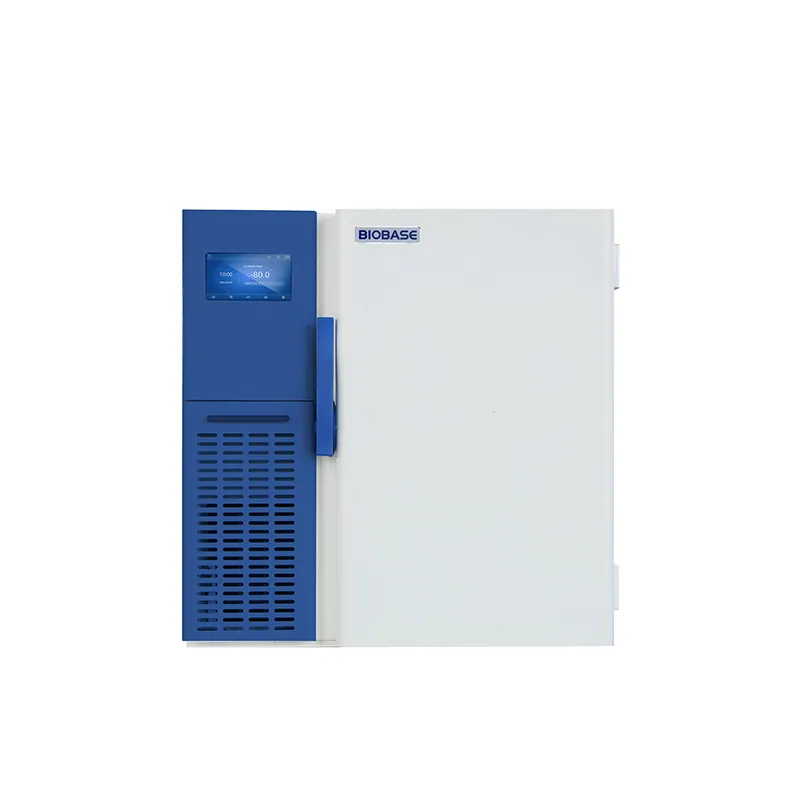

BIOBASE -86℃ Freezer(Undercounter Type) 90L is listed in VVON's laboratory refrigerators & freezers range for Bangladesh. Published models: BDF-86V100. Published details include Capacity: 90L; Temp. Range: -40~-86℃. Compare usable capacity, temperature range, alarms and sample-storage requirements. For a quotation, send the sample type, usable capacity, temperature range and monitoring needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BDF-86V100 |
|---|---|
| Capacity | 90L |
| Temp. Range | -40~-86℃ |
| Temp. Accuracy | 0.1℃ |
| Temp. Uniformity | ≤5℃ |
| Temp. Stability | ≤6℃ |
| Control System | Microprocessor control |
| Display | LCD touch screen |
| Alarm | High/low temperature alarm, power failure alarm(48h), controller failure alarm, ambient temperature alarm, condenser overheat alarm |
| Refrigeration Type | Direct-cooling |
| Refrigerant | Hydrocarbon mixture refrigerant |
| Compressor | International famous brand compressor/1 |
| Condenser&Evaporator | Copper tube aluminum fin type condenser; copper coil type evaporator |
| Defrost | Manual defrost |
| Construction | Polyurethane foam layer+vacuum insulation board |
| Material ; / Internal Material | Galvanized steel powder spraying |
| Material ; / External Material | Galvanized steel powder spraying |
| Door | Outer door*1, inner door*2 |
| Noise | 55dB(A) |
| Consumption | 460W |
| Power Supply | AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional) |
| Casters | No |
| Shelf | 1 |
| Standard Accessory | Test hole, shelf, USB |
| Optional Accessory | Temperature recorder, freezer rack and freezer box, liquid nitrogen backup system |
| Internal Size(W*D*H) | 320*450*610mm |
| External Size(W*D*H) | 795*680*815mm |
| Package Size(W*D*H) | 850*740*953mm |
| Net Weight | 92kg |
| Gross Weight | 107kg |
Manufacturer catalogue checked 2026-09-28.
