Brand: BIOBASE | Category: Scientific & Laboratory Equipment

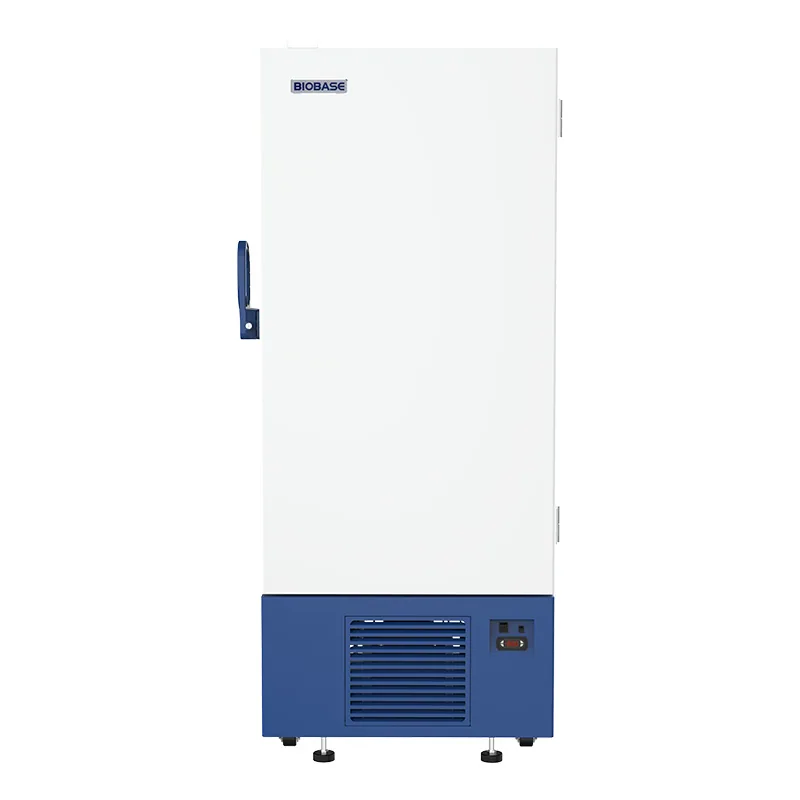

BIOBASE -86℃ Freezer (Inverter Type) is listed in VVON's laboratory refrigerators & freezers range for Bangladesh. Published models: BDF-86V168B, BDF-86V348B. Compare usable capacity, temperature range, alarms and sample-storage requirements. For a quotation, send the sample type, usable capacity, temperature range and monitoring needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BDF-86V168B | BDF-86V348B | BDF-86V348B |
|---|---|---|---|
| Capacity | 168L | 348L | 348L |
| Environment Temp. | 10~32℃ | 10~32℃ | 10~32℃ |
| Temp. Range | -40~-86℃ | -40~-86℃ | -40~-86℃ |
| Temp. Accuracy | 0.1℃ | 0.1℃ | 0.1℃ |
| Temp. Uniformity | ±4℃ | ±4℃ | ±4℃ |
| Temp. Stability | ≤6℃ | ≤6℃ | ≤6℃ |
| Control System | Electronic temperature control | Electronic temperature control | Electronic temperature control |
| Display | LED | LED | LED |
| Alarm | High/low temperature alarm, power failure alarm(72h), controller failure alarm, door ajar alarm | High/low temperature alarm, power failure alarm(72h), controller failure alarm, door ajar alarm | High/low temperature alarm, power failure alarm(72h), controller failure alarm, door ajar alarm |
| Sensor Type | PT1000 | PT1000 | PT1000 |
| Refrigeration Type | Direct-cooling | Direct-cooling | Direct-cooling |
| Refrigerant | R600a/R1150/R14, 180g | R600a/R1150/R14, 285g | R600a/R1150/R14, 285g |
| Compressor | International famous brand inverter compressor/1 | International famous brand inverter compressor/1 | International famous brand inverter compressor/1 |
| Defrosting Method | Manual | Manual | Manual |
| Condenser & Evaporator | Condenser: microchannel condenser Evaporator: internal coil; copper tube | Condenser: microchannel condenser Evaporator: internal coil; copper tube | Condenser: finned copper tube condenser Evaporator: internal coil; copper tube |
| Shelf | 2/Stainless steel | 3/Stainless steel | 3/Stainless steel |
| Noise | 53dB(A) | 53dB(A) | 53dB(A) |
| Outer Door | 1/Cyclopentane integral foaming | 1/Cyclopentane integral foaming | 1/Cyclopentane integral foaming |
| Inner Door | 3/Cyclopentane integral foaming | 2/Cyclopentane integral foaming | 2/Cyclopentane integral foaming |
| Consumption | 442W | 400W | 400W |
| Power Supply | Standard: 220V, 50Hz Optional: 220V, 60Hz; 110V, 60Hz | Standard: 220V, 50Hz Optional: 220V, 60Hz; 110V, 60Hz | Standard: 220V, 50Hz Optional: 220V, 60Hz; 110V, 60Hz |
| Caster | Universal casters*4 + leveling feet*2 | Universal casters*4 + leveling feet*2 | Universal casters*4 + leveling feet*2 |
| Standard Accessory | Test port*2(φ30mm) | Test port*2(φ30mm) | Test port*2(φ30mm) |
| Optional Accessory | Temperature recorder, USB port, RS485, liquid nitrogen backup system | Temperature recorder, USB port, RS485, liquid nitrogen backup system | Temperature recorder, USB port, RS485, liquid nitrogen backup system |
| Inner Size(W*D*H) | 465*455*820mm | 490*612*1150mm | 490*612*1150mm |
| External Size(W*D*H) | 844*807*1594mm | 869*989*1924mm | 869*989*1924mm |
| Package Size(W*D*H) | 1000*970*1790mm | 929*1049*2150mm | 929*1049*2150mm |
| Net Weight | 168kg | 232kg | 232kg |
| Gross Weight | 221kg | 300kg | 300kg |
Manufacturer catalogue checked 2026-09-28.
