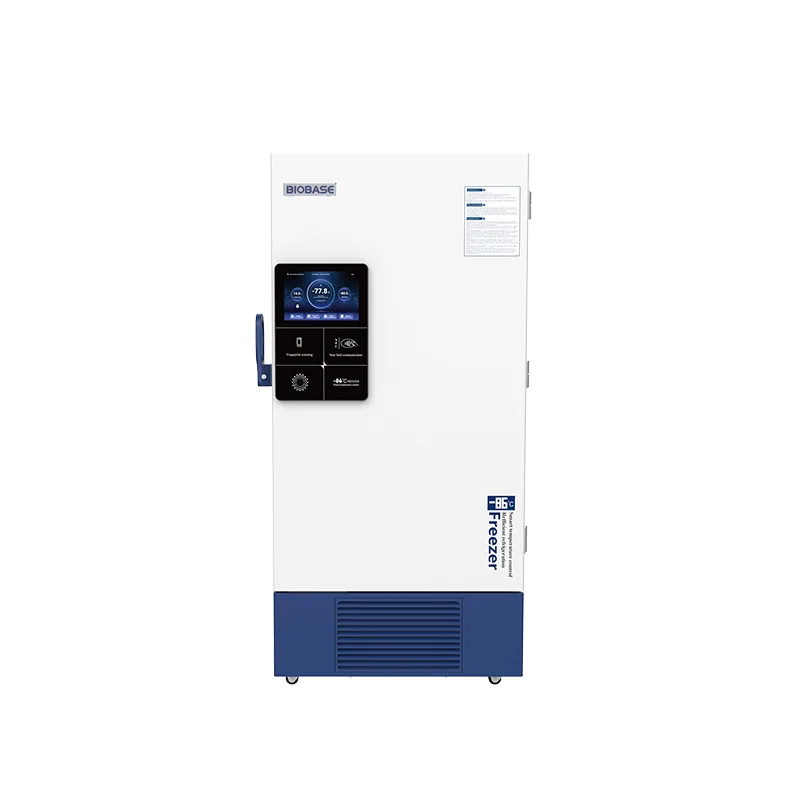

BIOBASE -86℃ Freezer (Inverter Type) BDF-86V418BD/BDF-86V608BD
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE -86℃ Freezer (Inverter Type) BDF-86V418BD/BDF-86V608BD is listed in VVON's laboratory refrigerators & freezers range for Bangladesh. Published models: BDF-86V418BD, BDF-86V608BD. Compare usable capacity, temperature range, alarms and sample-storage requirements. For a quotation, send the sample type, usable capacity, temperature range and monitoring needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BDF-86V418BD | BDF-86V608BD |
|---|---|---|
| Capacity | 418L | 608L |
| Environment Temp. | 10~32℃ | 10~32℃ |
| Temp. Range | -40~-86℃ | -40~-86℃ |
| Temp. Accuracy | 0.1℃ | 0.1℃ |
| Temp. Uniformity | ≤5℃ | ≤5℃ |
| Temp. Stability | ≤6℃ | ≤6℃ |
| Control System | Electronic temperature control | Electronic temperature control |
| Display | 10.1-inch full-touch Android screen | 10.1-inch full-touch Android screen |
| Sensor Type | PT100 | PT100 |
| Alarm | High/low temperature alarm, power failure alarm(72h), controller failure alarm, door ajar alarm, condenser sensor fault alarm, ambient temperature sensor fault alarm, condenser clogging alarm, high ambient temperature alarm, power board fault alarm, power supply overpressure alarm, low battery alarm, battery disconnection alarm, reverse battery connection alarm | High/low temperature alarm, power failure alarm(72h), controller failure alarm, door ajar alarm, condenser sensor fault alarm, ambient temperature sensor fault alarm, condenser clogging alarm, high ambient temperature alarm, power board fault alarm, power supply overpressure alarm, low battery alarm, battery disconnection alarm, reverse battery connection alarm |
| Refrigeration Type | Direct-cooling | Direct-cooling |
| Refrigerant | R600a/R1150/R14, 252g | R600a/R1150/R14, 255g |
| Compressor | International famous brand inverter compressor/2 | International famous brand inverter compressor/2 |
| Defrosting Method | Manual | Manual |
| Condenser & Evaporator | Condenser: finned; copper tube Evaporator: internal coil; copper tube | Condenser: finned; copper tube Evaporator: internal coil; copper tube |
| Shelf | 3/Stainless steel | 3/Stainless steel |
| Noise | 53dB(A) | ≤60dB(A) |
| Outer Door | 1/Cyclopentane integral foaming | 1/Cyclopentane integral foaming |
| Inner Door | 4/Cyclopentane integral foaming | 4/Cyclopentane integral foaming |
| Consumption | 650W | 740W |
| Power Supply | Standard: 220V, 50Hz Optional: 220V, 60Hz; 110V, 60Hz | Standard: 220V, 50Hz Optional: 220V, 60Hz; 110V, 60Hz |
| Caster | Universal casters*4 + leveling feet*2 | Universal casters*4 + leveling feet*2 |
| Standard Accessory | RS485, USB port, test port*2(φ30mm), remote alarm | RS485, USB port, test port*2(φ30mm), remote alarm |
| Optional Accessory | Barcode scanner, temperature recorder, liquid nitrogen backup system | Barcode scanner, temperature recorder, liquid nitrogen backup system |
| Inner Size(W*D*H) | 600*612*1150mm | 620*755*1280mm |
| External Size(W*D*H) | 980*988*1940mm | 1000*1147*1996mm |
| Package Size(W*D*H) | 1130*1170*2150mm | 1150*1280*2210mm |
| Net Weight | 270kg | 308kg |
| Gross Weight | 350kg | 380kg |
Manufacturer catalogue checked 2026-09-28.
