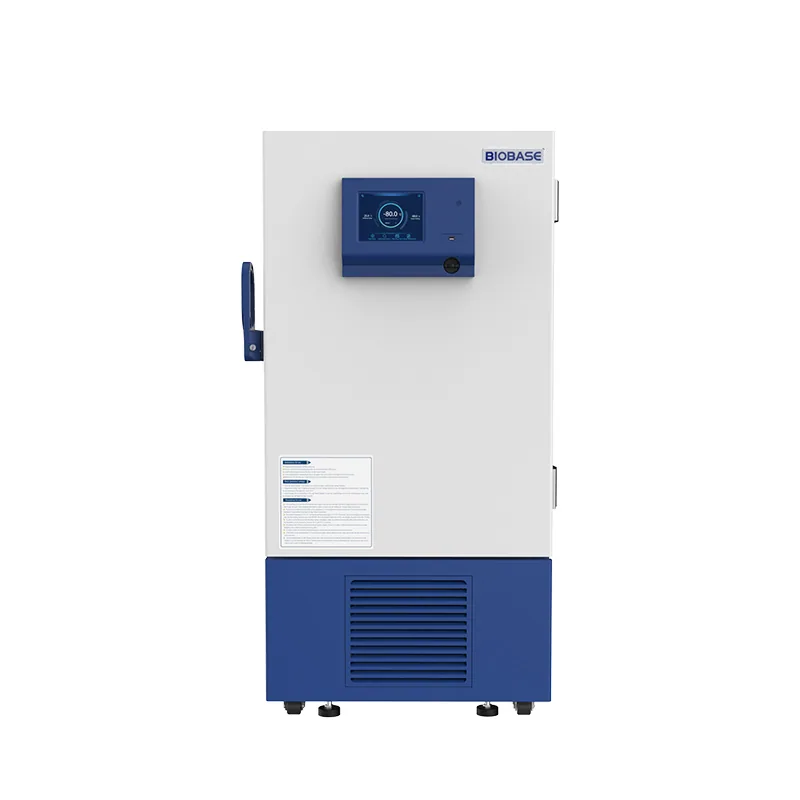

BIOBASE -86°C Freezer BDF-86V168T BDF-86V348T
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE -86°C Freezer BDF-86V168T BDF-86V348T is listed in VVON's laboratory refrigerators & freezers range for Bangladesh. Published models: BDF-86V168T, BDF-86V348T. Compare usable capacity, temperature range, alarms and sample-storage requirements. For a quotation, send the sample type, usable capacity, temperature range and monitoring needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BDF-86V168T | BDF-86V168T | BDF-86V348T |
|---|---|---|---|
| Capacity | 168L | 168L | 348L |
| Temp. Range | -40~-86℃ | -40~-86℃ | -40~-86℃ |
| Temp. Accuracy | 0.1℃ | 0.1℃ | 0.1℃ |
| Temp. Uniformity | ±4℃ | ±4℃ | ±4℃ |
| Temp. Stability | ≤6℃ | ≤6℃ | ≤6℃ |
| Recovery Time(Recover to -75℃ in an ambient temp. of 25℃) | ≤30min | ≤30min | ≤30min |
| Cooling Time(Cool down to -80℃ in an ambient temp. of 25℃) | ≤7h | ≤7h | ≤7h |
| Control System | Microprocessor control | Microprocessor control | Microprocessor control |
| Display | LCD | LCD | LCD |
| Alarm | High/low temperature alarm, power failure alarm(72h), controller failure alarm, door ajar alarm | High/low temperature alarm, power failure alarm(72h), controller failure alarm, door ajar alarm | High/low temperature alarm, power failure alarm(72h), controller failure alarm, door ajar alarm |
| Refrigeration Type | Direct-cooling | Direct-cooling | Direct-cooling |
| Refrigerant | R290/R170, 183g | R290/R170, 308g | R290/R170, 308g |
| Compressor | International famous brand compressor/2 | International famous brand compressor/2 | International famous brand compressor/2 |
| Condenser&Evaporator | Built-in coil type, copper pipe, copper tube and aluminum fin | Built-in coil type, copper pipe, copper tube and aluminum fin | Built-in coil type, copper pipe, copper tube and aluminum fin |
| Defrost | Manual defrost | Manual defrost | Manual defrost |
| Construction | Polyurethane cyclopentane foam | Polyurethane cyclopentane foam | Polyurethane cyclopentane foam |
| Material / Internal Material | SUS304 stainless steel | SUS304 stainless steel | SUS304 stainless steel |
| Material / External Material | Sprayed steel plate | Sprayed steel plate | Sprayed steel plate |
| Door | Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*3 | Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*3 | Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*2 |
| Noise | 53dB(A) | 53dB(A) | 53dB(A) |
| Consumption | 830W Apparent power: 1386VA | 830W Apparent power: 1386VA | 915W Apparent power: 1386VA |
| Power Supply | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | AC220V, 50Hz(Standard); 110/220V, 60Hz(Optional) |
| Casters | Yes | Yes | Yes |
| Shelf | 2 | 2 | 3 |
| Standard Accessory | Test port*2, USB interface, RS485 interface | Test port*2, USB interface, RS485 interface | Test port*2, USB interface, RS485 interface |
| Optional Accessory | Liquid nitrogen backup system, temperature recorder | Liquid nitrogen backup system, temperature recorder | Liquid nitrogen backup system, temperature recorder |
| Internal Size(W*D*H) | 465*455*820mm | 465*455*820mm | 490*612*1150mm |
| External Size(W*D*H) | 844*807*1594mm | 844*807*1594mm | 869*989*1924mm |
| Package Size(W*D*H) | 1000*970*1790mm | 1000*970*1790mm | 1020*1180*2130mm |
| Net Weight | 196kg | 196kg | 264kg |
| Gross Weight | 253kg | 253kg | 332kg |
Manufacturer catalogue checked 2026-09-28.
