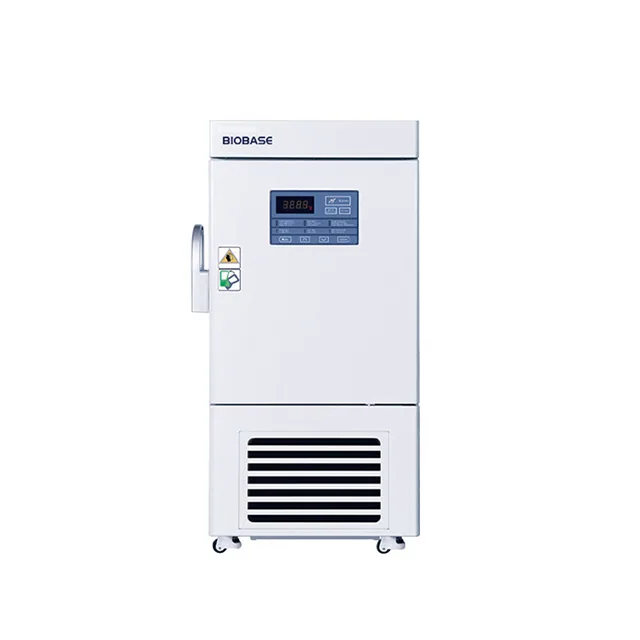

BIOBASE 58l 108l 158l Ultra Low Temperature Vaccine Freezer - 80 Degrees Laboratory Deep Freezer
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE 58l 108l 158l Ultra Low Temperature Vaccine Freezer - 80 Degrees Laboratory Deep Freezer is listed in VVON's laboratory refrigerators & freezers range for Bangladesh. Published models: BDF-86V58, BDF-86V108, BDF-86V160. Compare usable capacity, temperature range, alarms and sample-storage requirements. For a quotation, send the sample type, usable capacity, temperature range and monitoring needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BDF-86V58 | BDF-86V108 | BDF-86V160 |
|---|---|---|---|
| External Size(W'D*H)mm | 635*757*1212 | 700*730*1260 | 700*700*1580 |
| Internal Size(W*D*H)mm | 330*453*410 | 460*460*510 | 460*455*800 |
| Capacity | 58L | 108L | 158L |
| Type | Vertical | Vertical | Vertical |
| Temp.Range | -40℃～-86℃ | -40℃～-86℃ | -40℃～-86℃ |
| Temp.Accuracy | 0.1℃ | 0.1℃ | 0.1℃ |
| Control System | Microprocessor control, LED Digital Display | Microprocessor control, LED Digital Display | Microprocessor control, LED Digital Display |
| Audible and Visual Alarm | High and low temperature alarm,sensor failure alarm, thermostat failure alarm,; power failure alarm, door open alarm, ambient temperature alarm, condenser; failure alarm, filter inspection alarm, abnormal voltage alarm, low battery alarm.; (BDF-86V58); High and low temperature,sensor failure.(BDF-86V108 BDF-86V160) | High and low temperature alarm,sensor failure alarm, thermostat failure alarm,; power failure alarm, door open alarm, ambient temperature alarm, condenser; failure alarm, filter inspection alarm, abnormal voltage alarm, low battery alarm.; (BDF-86V58); High and low temperature,sensor failure.(BDF-86V108 BDF-86V160) | High and low temperature alarm,sensor failure alarm, thermostat failure alarm,; power failure alarm, door open alarm, ambient temperature alarm, condenser; failure alarm, filter inspection alarm, abnormal voltage alarm, low battery alarm.; (BDF-86V58); High and low temperature,sensor failure.(BDF-86V108 BDF-86V160) |
| Alarm Method; ; Refrigeration Type Refrigerant | Sound beeps and lights flash | Sound beeps and lights flash | Sound beeps and lights flash |
| Alarm Method; ; Refrigeration Type Refrigerant | Direct refrigeration; R290 and R170 | Optimized auto-cascade refrigerating system; R404a and R23 | Optimized auto-cascade refrigerating system; R404a and R23 |
| Compressor; Condenser& Evaporator | 1 set; Made of copper | 1 set; Made of copper | 1 set; Made of copper |
| Construction / Foam Layer Thickness | 150mm | 120mm | 120mm |
| Construction / Internal Material | 304 stainless steel | 304 stainless steel | 304 stainless steel |
| Construction / External Material | Sprayed steel plate | Sprayed steel plate | Sprayed steel plate |
| Door | Lockable door | Lockable door | Lockable door |
| Caster | 4 casters | 4 casters | 4 casters |
| Chamber with Inner Door; Shelf | 1 1pcs | 2 1pcs | 3; 2pcs |
| Temp.Test Port; Consumption | 1,φ25mm; 442 | 1,φ18mm; 520W | 1,φ18mm; 650w |
| Power Supply | AC110V/220V+10%,50/60Hz | AC110V/220V+10%,50/60Hz | AC110V/220V+10%,50/60Hz |
| Package Size (W*D*H) mm; Gross Weight | 730*845*1400 ; 155kg | 785*800*1430; ; 133kg | 800*780*1750; ; 155kg |
Manufacturer catalogue checked 2026-09-28.
