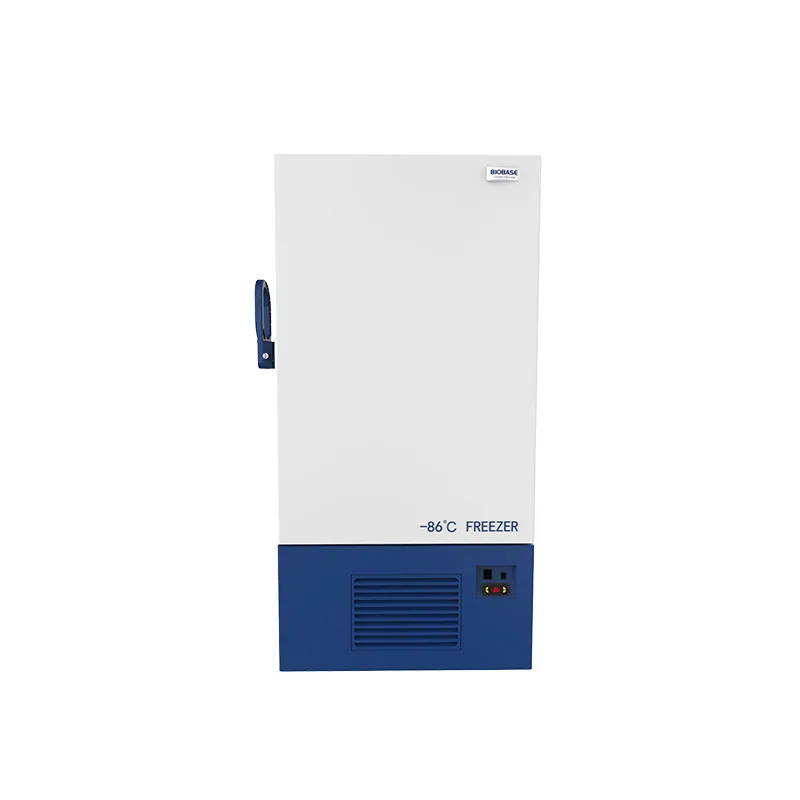

BIOBASE -86℃ Freezer BDF-86V168 BDF-86V348 (Customized)
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE -86℃ Freezer BDF-86V168 BDF-86V348 (Customized) is listed in VVON's laboratory refrigerators & freezers range for Bangladesh. Published models: BDF-86V168, BDF-86V348. Compare usable capacity, temperature range, alarms and sample-storage requirements. For a quotation, send the sample type, usable capacity, temperature range and monitoring needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BDF-86V168 | BDF-86V168 | BDF-86V168 | BDF-86V348 |
|---|---|---|---|---|
| Capacity | 168L | 168L | 168L | 348L |
| Temp. Range | -40~-86℃ | -40~-86℃ | -40~-86℃ | -40~-86℃ |
| Temp. Accuracy | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ |
| Temp. Uniformity | ±4℃ | ±4℃ | ±4℃ | ±4℃ |
| Temp. Stability | ≤6℃ | ≤6℃ | ≤6℃ | ≤6℃ |
| Recovery Time(Recover to -75℃ in an ambient temp. of 25℃) | ≤15min | ≤15min | ≤15min | ≤15min |
| Cooling Time(Cool down to -80℃ in an ambient temp. of 25℃) | ≤4h | ≤4h | ≤4h | ≤4h |
| Control System | Microprocessor control | Microprocessor control | Microprocessor control | Microprocessor control |
| Display | LED | LED | LED | LED |
| Alarm | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h) | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h) | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h) | High and low temperature alarm, thermostat fault alarm, door switch alarm, power failure alarm(72h) |
| Refrigeration Type | Direct-cooling | Direct-cooling | Direct-cooling | Direct-cooling |
| Refrigerant | R600a/R1150/R14, 137g | R600a/R1150/R14, 193g | R600a/R1150/R14, 193g | R600a/R1150/R14, 193g |
| Compressor | International famous brand compressor/1 | International famous brand compressor/1 | International famous brand compressor/1 | International famous brand compressor/1 |
| Condenser&Evaporator | Micro channel condenser; built-in coil type, copper pipe | Micro channel condenser; built-in coil type, copper pipe | Built-in coil type copper pipe; copper tube and aluminum fin | Built-in coil type copper pipe; copper tube and aluminum fin |
| Defrost | Manual defrost | Manual defrost | Manual defrost | Manual defrost |
| Construction | Polyurethane cyclopentane foam | Polyurethane cyclopentane foam | Polyurethane cyclopentane foam | Polyurethane cyclopentane foam |
| Material / Internal Material | SUS304 stainless steel | SUS304 stainless steel | SUS304 stainless steel | SUS304 stainless steel |
| Material / External Material | Sprayed steel plate | Sprayed steel plate | Sprayed steel plate | Sprayed steel plate |
| Door | Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*3 | Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*3 | Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*3 | Outer door: cyclopentane monomer foam door*1 Inner door: cyclopentane monolithic foaming, stainless steel door*2 |
| Consumption | 650W Apparent power: 858VA | 650W Apparent power: 858VA | 650W Apparent power: 858VA | 650W Apparent power: 858VA |
| Power Supply | AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer) | AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer) | AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer) | AC220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer) |
| Casters | Yes | Yes | Yes | Yes |
| Shelf | 2 | 2 | 2 | 3 |
| Standard Accessory | Test port*2 | Test port*2 | Test port*2 | Test port*2 |
| Optional Accessory | RS485 interface, USB interface, liquid nitrogen backup system, temperature recorder | RS485 interface, USB interface, liquid nitrogen backup system, temperature recorder | RS485 interface, USB interface, liquid nitrogen backup system, temperature recorder | RS485 interface, USB interface, liquid nitrogen backup system, temperature recorder |
| Internal Size(W*D*H) | 465*455*820mm | 465*455*820mm | 465*455*820mm | 490*612*1150mm |
| External Size(W*D*H) | 844*807*1594mm | 844*807*1594mm | 844*807*1594mm | 869*989*1924mm |
| Package Size(W*D*H) | 1000*970*1790mm | 1000*970*1790mm | 1000*970*1790mm | 929*1049*2150mm |
| Net Weight | 168kg | 168kg | 168kg | 232kg |
| Gross Weight | 221kg | 221kg | 221kg | 300kg |
Manufacturer catalogue checked 2026-09-28.
