Brand: EDIBON | Category: Scientific & Laboratory Equipment

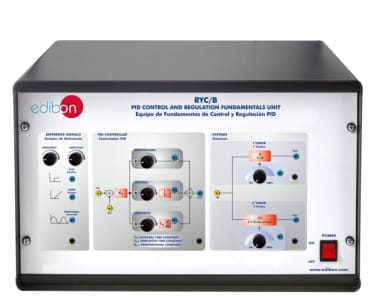

A self-contained unit for the fundamentals of PID control and regulation. Reference signals generated on the panel are applied to the systems through a PID controller, so students see how each control term shapes the response.
| Parameter | Value |
|---|---|
| Electrical supply | single-phase 200 VAC to 240 VAC/50 Hz |
| Dimensions | 490 x 330 x 310 mm |
| Weight | 10 Kg approx |
| Natural frequency ( n) | 1 Hz to 2 *100 rad/s (100 Hz) |
