Brand: EDIBON | Category: Scientific & Laboratory Equipment

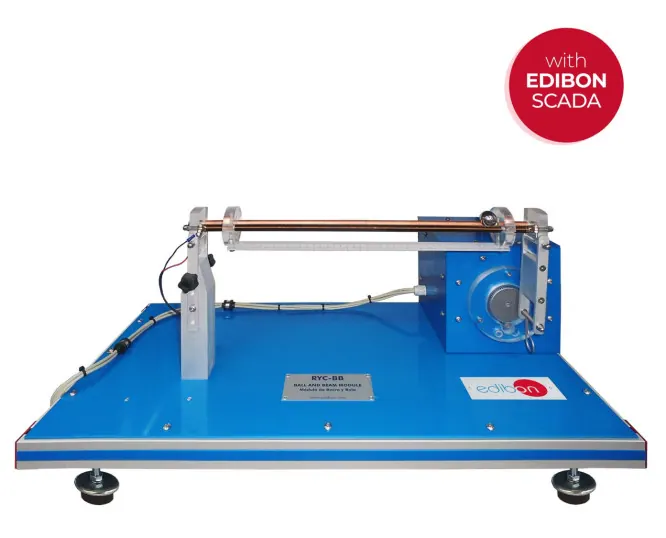

A classical unstable control process: a motor tilts a beam along which a steel ball rolls, and the controller must hold the ball at the set position. Students study stability, tuning and the limits of PID control on an unstable plant.
| Parameter | Value |
|---|---|
| Dimensions | 1000 x 400 x 350 mm |
| Weight | 18 Kg approx |
| Motor supply | 10 VDC |
| Max speed | 10700 rpm |
| Measurement range | +/-200 mm |
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
