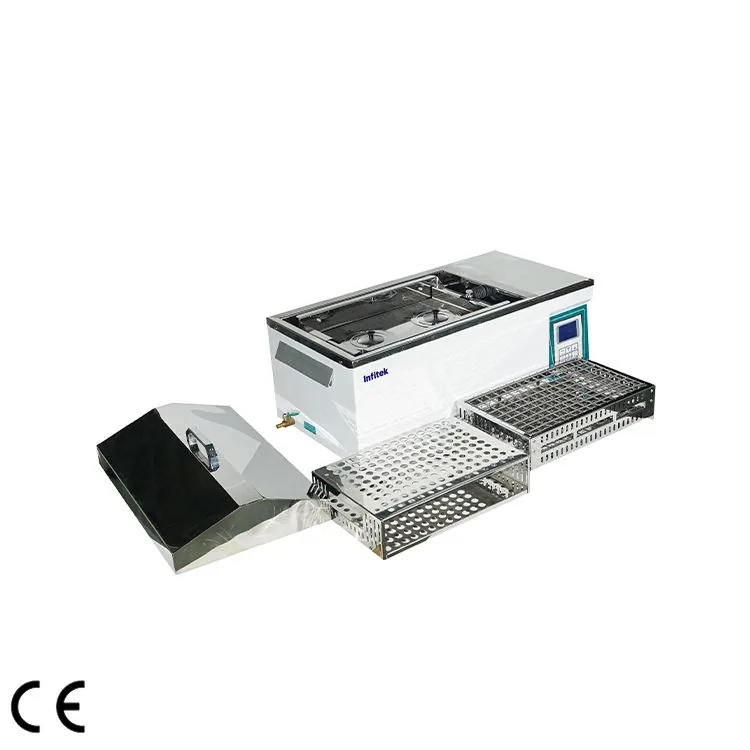

Infitek Water Bath Shaker, WB-S30
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Water Bath Shaker, WB-S30 is listed in VVON's water baths chillers & dry blocks range for Bangladesh. Published models: WB-S30. Published details include Function / Operating Temp Range: RT～100℃; Specification / Inside Volume: 31L. Match temperature range, stability, sample format and circulation requirements. For a quotation, send the temperature range, working volume, sample format and connected equipment. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | WB-S30 |
|---|---|
| Type | Reciprocating oscillation + thermostatic water bath |
| Function / Operating Temp Range | RT～100℃ |
| Function / Tem. Resolution Ratio | 0.1℃ |
| Function / Tem. Motion | ±0.1℃ |
| Function / Tem. Uniformity | ±0.2℃ |
| Function / Reciprocal Oscillation Amplitude | 16 or 24mm (Ex-factory is 16mm) |
| Function / Reciprocating Frequeny Range | 20～180（r/min） |
| Function / Reciprocating Frequeny Accuracy | ±1rpm |
| Structure / Water Tank | Mirror stainless steel |
| Structure / Outer Shell | Cold rolling steel electrostatic spraying exterior |
| Structure / Upper Cover | Mirror stainless steel |
| Structure / Insulating Layer | Polyurethane |
| Structure / Heater | Stainless Steel Heater |
| Structure / Driving Mode | Crankshaft+ double link + four wheels |
| Structure / Shelf | Mirror stainless steel |
| Structure / Power rating | 1.5kW |
| Controller / Tem. Control Mode | LCD PID Intelligent control |
| Controller / Reciprocating Control Mode | LCD PID Intelligent control |
| Controller / Setting Mode | Touch button setting |
| Controller / Tem. Display Mode | LCD Display |
| Controller / Speed Display Mode | LCD Display |
| Controller / Timer | 0～9999 min |
| Controller / Operation Function | Fixed value operation, timing function, auto stop, quickly stop start |
| Controller / Temperature Sensor | Pt100 |
| Controller / Speed Sensor | Hoare |
| Controller / Additional Function | Deviation correction, menu keys, locked, power-off memory |
| Safety device | over temperature alarm, menu locked, water full or shortage protection, Motor shaft lock protection; |
| Specification / Water Tank Size (W*L*H)(mm) | 500*310*200 |
| Specification / Exterior Size (W*L*H)(mm) | 828*360*425 |
| Specification / Packing Size (W*L*H)(mm) | 930*520*620 |
| Specification / Spring Shock Basket Size（mm） | 395*250 |
| Specification / Shock Basket Largest Single Size (ml /piece) | 100ml*12/250*8/500*6 |
| Specification / Inside Volume | 31L |
| Specification / Shock Basket Bearing | 5kg/layer |
| Specification / Current Rating （50Hz） | AC220V/6.8A |
| Specification / NW/GW (kg） | 20/30 |
| Accessories | Water bath flask seat, tube rack |
Manufacturer catalogue checked 2026-09-28.
