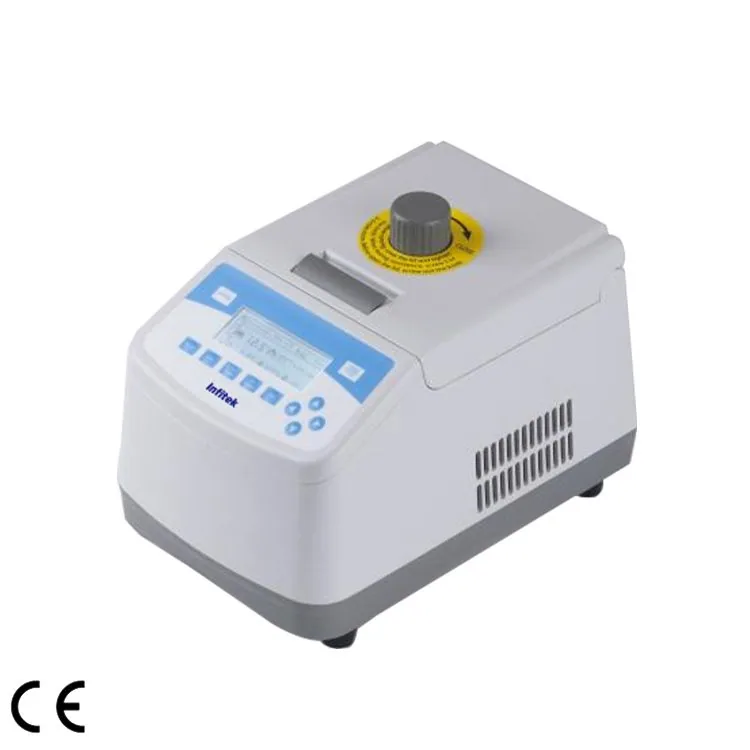

Infitek Dry Bath / Block Heater, DBI-100VI
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Dry Bath / Block Heater, DBI-100VI is listed in VVON's water baths chillers & dry blocks range for Bangladesh. Published models: DBI-100VI. Match temperature range, stability, sample format and circulation requirements. For a quotation, send the temperature range, working volume, sample format and connected equipment. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | DBI-100VI | DBI-100VI |
|---|---|---|
| Block | ES series | ESC series |
| Temp setting range | 0℃~100℃ | -10℃~100℃ |
| Temp control range | RT+5℃~100℃ | RT-25℃~100℃ |
| Time range | 1sec ~ 99 min 59sec /1min ~ 99h59min/∞ | 1sec ~ 99 min 59sec /1min ~ 99h59min/∞ |
| Temp. accuracy | ≤±0.3℃@37℃ | ≤±0.3℃@37℃ |
| Display accuracy | 0.1℃ | 0.1℃ |
| Temp. uniformity | ≤±0.3℃@37℃ | ≤±0.3℃@37℃ |
| Heating time | ≤12min(from 25℃ to 100℃) | ≤12min(from 25℃ to 100℃) |
| Cooling time 1 | — | ≤12min(from 100℃ to 25℃) |
| Cooling time 2 | — | ≤25min(from RT to RT-25℃) |
| Heating lid temp setting range | OFF~+10℃ | OFF~+10℃ |
| Heating lid temp accuracy | ≤±0.5℃ | ≤±0.5℃ |
| Heating lid heating time | ≤10min(from 25℃ to 100℃) | ≤10min(from 25℃ to 100℃) |
| Storage at 4℃ | — | Yes |
| Multi-points running | Yes(Max 5 points) | Yes(Max 5 points) |
| Multi-cycle | Yes(Max 99 times) | Yes(Max 99 times) |
| Auto running | Yes | Yes |
| Auto heating | Yes | Yes |
| Auto resume to run | Yes | Yes |
| Capacity | See optional block | See optional block |
| Power consumption | 150W | 150W |
| Electricity | 110 or 220V AC/50-60HZ | 110 or 220V AC/50-60HZ |
| Fuse | 250V 3A Ф5×20 | 250V 3A Ф5×20 |
| External dimension(mm)（W*D*H） | 200x300x210 | 200x300x210 |
| Net weight(kg) | 4.0 | 4.7 |
Manufacturer catalogue checked 2026-09-28.
