Brand: Infitek | Category: Scientific & Laboratory Equipment

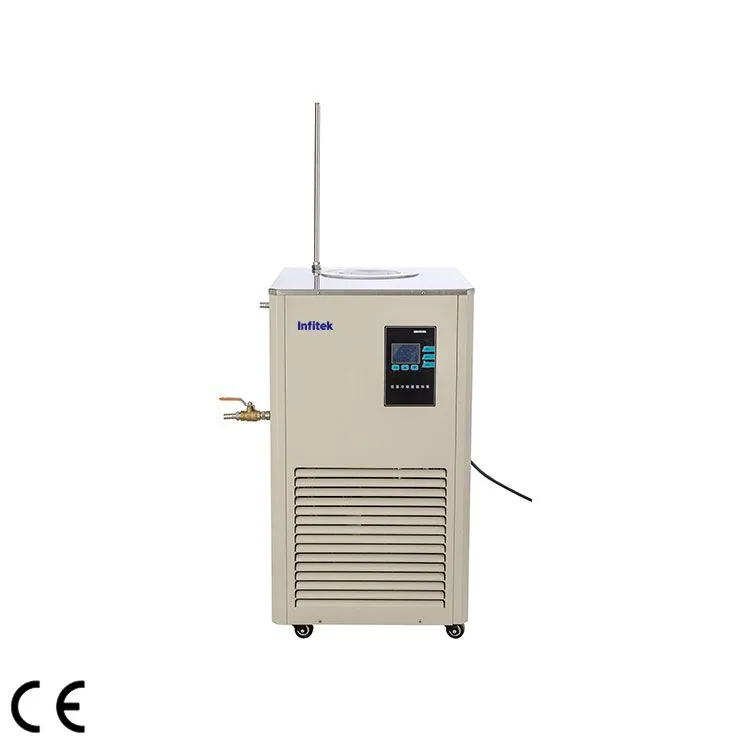

Infitek Recirculating Chiller, RECL10-5, RECL30-50, RECL40-100 is listed in VVON's water baths chillers & dry blocks range for Bangladesh. Published models: RECL10-5, RECL30-50, RECL40-100. Match temperature range, stability, sample format and circulation requirements. For a quotation, send the temperature range, working volume, sample format and connected equipment. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | RECL10-5 | RECL10-5 | RECL30-50 | RECL30-50 | RECL40-100 | RECL40-100 |
|---|---|---|---|---|---|---|
| Usage temperature range | -10 ℃~room temperature | -10 ℃~room temperature | -30 ℃~room temperature | -30 ℃~room temperature | -40℃ ~room temperature | -40℃ ~room temperature |
| Environment temperature | 5 ~35 ℃ | 5 ~35 ℃ | 5 ~35 ℃ | 5 ~35 ℃ | 5 ~35 ℃ | 5 ~35 ℃ |
| Environment humidity | ≤70％ ventilation | ≤70％ ventilation | ≤70％ ventilation | ≤70％ ventilation | ≤70％ ventilation | ≤70％ ventilation |
| Power supply | Single phase 220V/50HZ | Single phase 220V/50HZ | Single phase AC220V,50/60Hz | Single phase AC220V,50/60Hz | Three phase 380V/50HZ | Three phase 380V/50HZ |
| Safety protection | Delay, over-current, overheat | Delay, over-current, overheat | Delay, over-current, overheat | Delay, over-current, overheat | Delay, overcurrent, overheating, phase sequence, phase loss protection | Delay, overcurrent, overheating, phase sequence, phase loss protection |
| Display | LCD display, key operation | LCD display, key operation | LCD display, key operation | LCD display, key operation | LCD display, key operation | LCD display, key operation |
| Temperature control accuracy | ±0.1℃ | ±0.1℃ | ±0.1℃ | ±0.1℃ | ±0.1℃ | ±0.1℃ |
| Sensor | PT100 | PT100 | PT100 | PT100 | PT100 | PT100 |
| Total power | 652W | 652W | 2485W | 2485W | 7990W | 7990W |
| Compressor | Specification | Small 1P | Specification | 3P | Specification | 10P |
| Compressor | Quantity | 1 | Quantity | 1 | Quantity | 1 |
| Compressor | Power | 500W | Power | 2205W | Power | 7350W |
| Compressor | Cooling capacity | 1550W | Cooling capacity | 6972W | Cooling capacity | 23240W |
| Circulation pump | Power | 100W | Power | 100W | Power | 280W |
| Circulation pump | Lift | 4-6M | Lift | 4-6M | Lift | 10-12M |
| Circulation pump | Flow | 20-40L/min | Flow | 20-40L/min | Flow | 30-50L/min |
| Circulation pump | Pressure | ≤0.4MPa | Pressure | ≤0.4MPa | Pressure | ≤0.4MPa |
| Air-cooling condenser | Power | 52W | Power | 180W | Power | 360W |
| Air-cooling condenser | Heating exchange area | 4.2㎡ | Heating exchange area | 21.2㎡ | Heating exchange area | 39㎡ |
| Air-cooling condenser | Air volume | 760m³/h | Air volume | 3400m³/h | Air volume | 6800m³/h |
| Refrigerant | R290 | R290 | R404A | R404A | R404A | R404A |
| Condensation coil | Φ8 copper tube plated by nickel | Φ8 copper tube plated by nickel | Φ16 copper tube plated by nickel | Φ16 copper tube plated by nickel | Φ19 copper tube plated by nickel | Φ19 copper tube plated by nickel |
| Equipment material | Cold plate spray, anti-corrosion | Cold plate spray, anti-corrosion | Cold plate spray, anti-corrosion | Cold plate spray, anti-corrosion | Cold plate spray, anti-corrosion | Cold plate spray, anti-corrosion |
| Water tank dimension&volume | Φ220×180H(mm) | 6.8L | Φ450×350H(mm) | About 55L | Φ500×500H(mm) | 98L |
| Available size in water tank | Φ185mm | Φ185mm | Φ350mm | Φ350mm | Φ390mm | Φ390mm |
| Cover opening | Φ200mm | Φ200mm | Φ350mm | Φ350mm | Φ350mm | Φ350mm |
| Outer circulation interface | Pagoda joint with Φ12mm outer diameter (facing the left side of the equipment） | Pagoda joint with Φ12mm outer diameter (facing the left side of the equipment） | Pagoda joint with Φ16mm outer diameter (facing the left side of the equipment） | Pagoda joint with Φ16mm outer diameter (facing the left side of the equipment） | Pagoda joint with Φ19mm outer diameter (facing the left side of the equipment） | Pagoda joint with Φ19mm outer diameter (facing the left side of the equipment） |
| Overall dimension(W*D*H) | 423 ×485×（760+ 400）mm | 423 ×485×（760+ 400）mm | 795×770×(1150+pole 500)mm | 795×770×(1150+pole 500)mm | 845×1100×（1365+pole 500）mm | 845×1100×（1365+pole 500）mm |
| Net weight | 56KG | 56KG | 119KG | 119KG | 250KG | 250KG |
| Packing dimension | 590×430×880mm carton package 0.21m³ | 590×430×880mm carton package 0.21m³ | 830×740×1280mm wooden package 0.79m³ | 830×740×1280mm wooden package 0.79m³ | 1190×880×1540mm wooden package 1.61m³ | 1190×880×1540mm wooden package 1.61m³ |
| Packing weight | 58KG | 58KG | 164KG | 164KG | 290KG | 290KG |
Manufacturer catalogue checked 2026-09-28.
