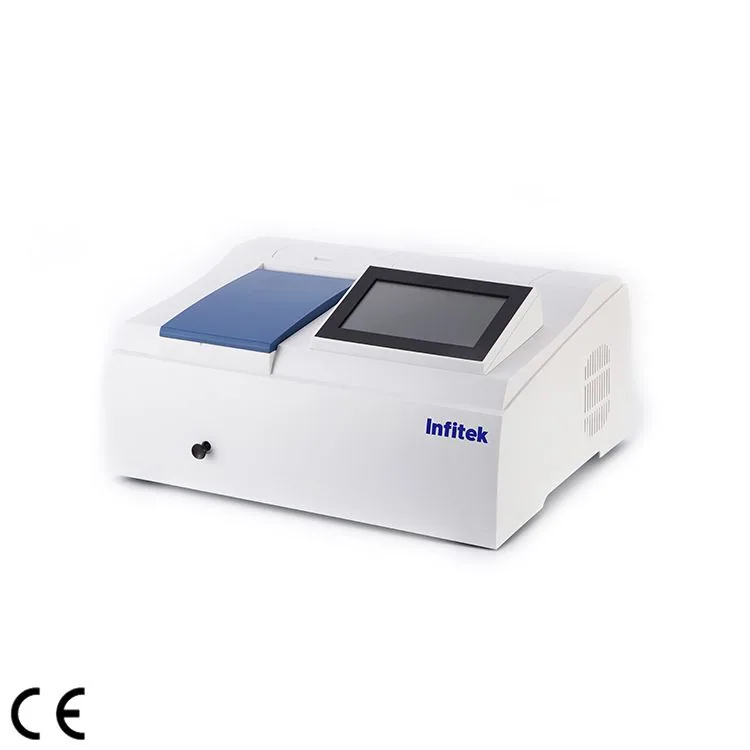

Infitek Visible Spectrophotometer, SP-IV2S
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Visible Spectrophotometer, SP-IV2S is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: SP-IV2S. Published details include Wavelength Range: 325-1100nm. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SP-IV2S |
|---|---|
| Optical System | Single-beam System |
| Monochromator Type | Czerny-Turner Monochromator |
| Wavelength Range | 325-1100nm |
| Wavelength Accuracy | ±1nm |
| Wavelength Repeatability | ≤0.5nm |
| Spectrum Bandwidth | 2nm |
| Photometric Accuracy | ±0.5% T; ±0.004 Abs (0-0.5A); ±0.008 Abs (0.5-1A) |
| Photometric Repeatability | ≤0.2% T; 0.002 Abs (0-0.5A); 0.004 Abs (0.5-1A) |
| Photometric Range | 0.0-200.0%T; -0.301-4.000A; 0.000-9999C |
| Stray Light | ≤0.1%T( at 360nm NaNO2 ) |
| Baseline | ≤±0.003A (335-1090nm) |
| Drifting | ≤0.003 Abs/h (at 500nm after 2h warm up) |
| Noise | 100%（T）noise≤0.2%(T) |
| Noise | 0%（T）noise≤0.1%(T) |
| Scanning Speed | Fast-Medium-Slow |
| Grating | 1200 lines/mm |
| Detector | Silicon photocell |
| Display | 7-inch color touch-screen |
| Power | AC220V±22V 50Hz±1Hz,100W |
| N.W./G.W.(kg) | 18/21.6 |
| Dimension(L*W*H)(mm) | 475*365*200 |
| Package Dimension(L*W*H)(mm) | 630*535*405 |
| Model | SP-IV2S |
|---|---|
| User Manual | 1pc. |
| Glass Cuvette 1cm | 4pcs. |
| Power Cable | 1pc. |
| Fuse | 2pcs. |
Manufacturer catalogue checked 2026-09-28.
