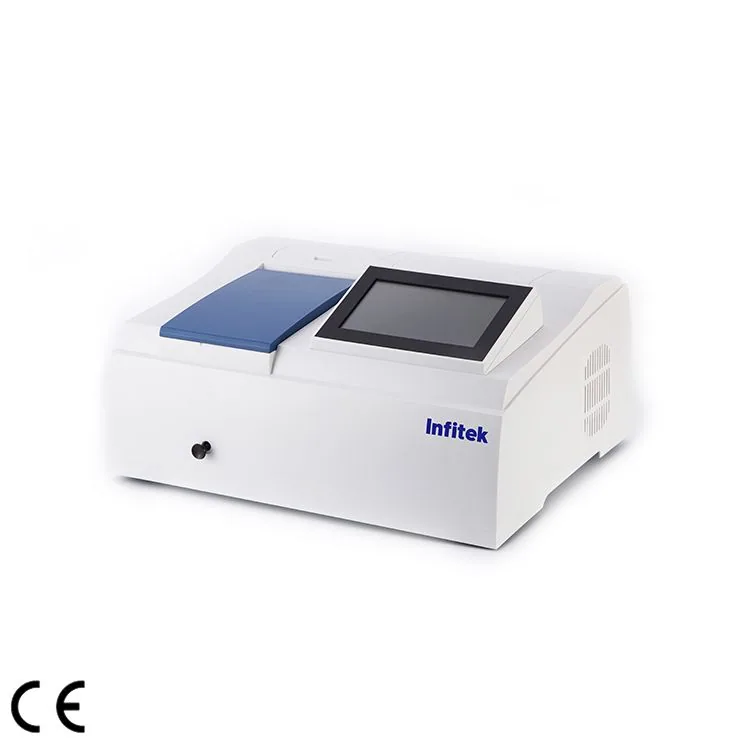

Infitek UV Visible Spectrophotometer, SP-IUV4S
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek UV Visible Spectrophotometer, SP-IUV4S is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: SP-IUV4S. Published details include Wavelength Range: 190-1100nm. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SP-IUV4S |
|---|---|
| Optical System | Single-beam System |
| Monochromator Type | Czerny-Turner Monochromator |
| Wavelength Range | 190-1100nm |
| Wavelength Accuracy | ±1nm |
| Wavelength Repeatability | ≤0.5nm |
| Spectrum Bandwidth | 2nm |
| Photometric Accuracy | ±0.3%T |
| Photometric Accuracy | ±0.002Abs (0-0.5A) |
| Photometric Accuracy | ±0.004 Abs (0.5-1A) |
| Photometric Repeatability | ≤0.15%T |
| Photometric Repeatability | 0.001 Abs (0-0.5A) |
| Photometric Repeatability | 0.002 Abs (0.5-1A) |
| Photometric Range | 0.0-200.0%T |
| Photometric Range | -0.301-4.000A |
| Photometric Range | 0.000-9999C |
| Stray Light | ≤0.1%T |
| Stray Light | ( at 220nm NaI, 360nm NaNO_(2) ) |
| Baseline | ≤±0.003A (200-1090nm) |
| Drifting | ±0.002 Abs/30min |
| Drifting | (at 250nm and 500nm after 2h warm up) |
| Noise | 100%（T）Noise≤0.5%(T) ， |
| Noise | 0%（T）Noise≤0.2%(T) |
| Scanning Speed | Fast-Medium-Slow |
| Grating | 1200 lines/mm |
| Detector | Silicon photocell |
| Display | 7-inch color touch-screen |
| Power | AC220V±22V 50Hz±1Hz, |
| Power | 180W |
| G.W.(kg) | 17.2 |
| Dimension(L*W*H)(mm) | 475*365*200 |
| Package Dimension (W*D*H)(mm) | 640*550*420 |
| Model | SP-IUV4S |
|---|---|
| User Manual | 1pc. |
| Glass Cuvette 1cm | 4pcs. |
| Quartz Cuvette 1cm | 2pcs. |
| Power Cable | 1pc. |
| Fuse | 2pcs. |
Manufacturer catalogue checked 2026-09-28.
