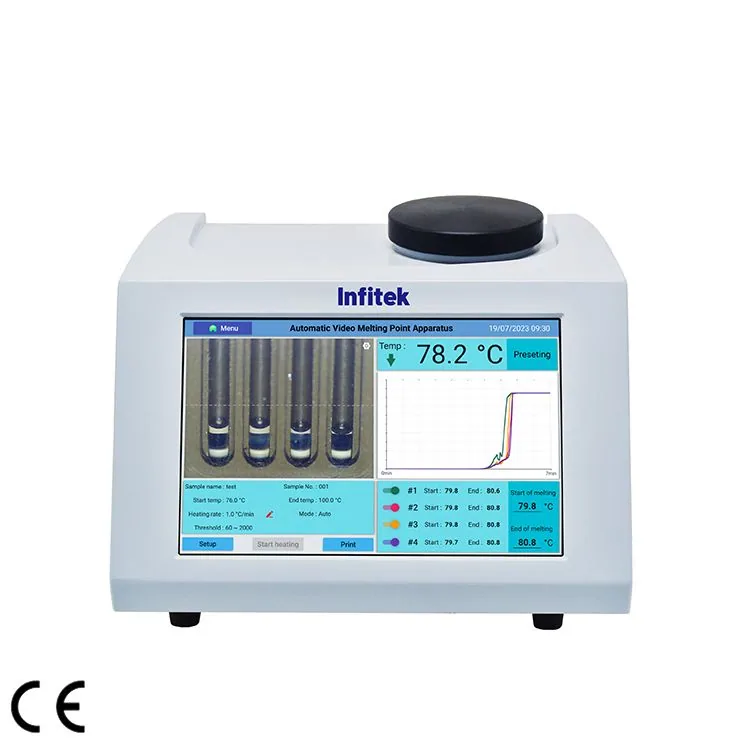

Infitek Video Melting Point Apparatus, MTP-685, MTP-682
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Video Melting Point Apparatus, MTP-685, MTP-682 is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: MTP-685, MTP-682. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MTP-685 | MTP-682 | MTP-682 |
|---|---|---|---|
| Measurement Range | RT.~400℃ | RT.~360℃ | RT.~360℃ |
| Measurement Mode | Auto / Visual (HD camera, video capture, playback monitoring) | Auto / Visual (HD camera, video capture, playback monitoring) | Auto / Visual (HD camera, video capture, playback monitoring) |
| Measurement Methods | 200 | 150 | 150 |
| Number of Users | 200 | 150 | 150 |
| Audit Trail | Optional | Optional | Optional |
| Electronic Signature | Yes | Yes | Yes |
| Minimum Indication | 0.01℃ | 0.01℃ | 0.01℃ |
| Linear Heating Rate | 0.1℃/min~20℃/min | 0.1℃/min~20℃/min | 0.1℃/min~20℃/min |
| Indication Error | ≤ 200℃: ±0.3℃; ＞200℃: ±0.5℃ | ≤ 200℃: ±0.3℃; ＞200℃: ±0.5℃ | ≤ 200℃: ±0.3℃; ＞200℃: ±0.5℃ |
| Indication Value Repeatability | 0.3℃ (heating rate: 1.0℃/min) | 0.3℃ (heating rate: 1.0℃/min) | 0.3℃ (heating rate: 1.0℃/min) |
| Linear Heating Rate Error | ±10% | ±10% | ±10% |
| Number of Capillary | 4 | 4 | 4 |
| Capillary Dimensions | Outer diameter: φ1.4mm; Inner diameter: φ1.0mm; Length: 90mm | Outer diameter: φ1.4mm; Inner diameter: φ1.0mm; Length: 90mm | Outer diameter: φ1.4mm; Inner diameter: φ1.0mm; Length: 90mm |
| Sample Height | 3mm | 3mm | 3mm |
| Operation System | Android | Android | Android |
| Data Storage | 128G | 128G | 64G |
| Display | 10.1-inche capacitive touch screen | 10.1-inche capacitive touch screen | 10.1-inche capacitive touch screen |
| Graph Storage | 40,000 groups | 40,000 groups | 20,000 groups |
| Interface | RS 232*1, USB*3, RJ-45*1, WIFI | RS 232*1, USB*3, RJ-45*1, WIFI | RS 232*1, USB*3, RJ-45*1, WIFI |
| Electricity | 100~240V, 50/60Hz, 150W | 100~240V, 50/60Hz, 150W | 100~240V, 50/60Hz, 150W |
| Package Dimension | 495*493*350mm | 495*493*350mm | 495*493*350mm |
| Gross Weight | 5kg | 5kg | 5kg |
Manufacturer catalogue checked 2026-09-28.
