Brand: Infitek | Category: Scientific & Laboratory Equipment

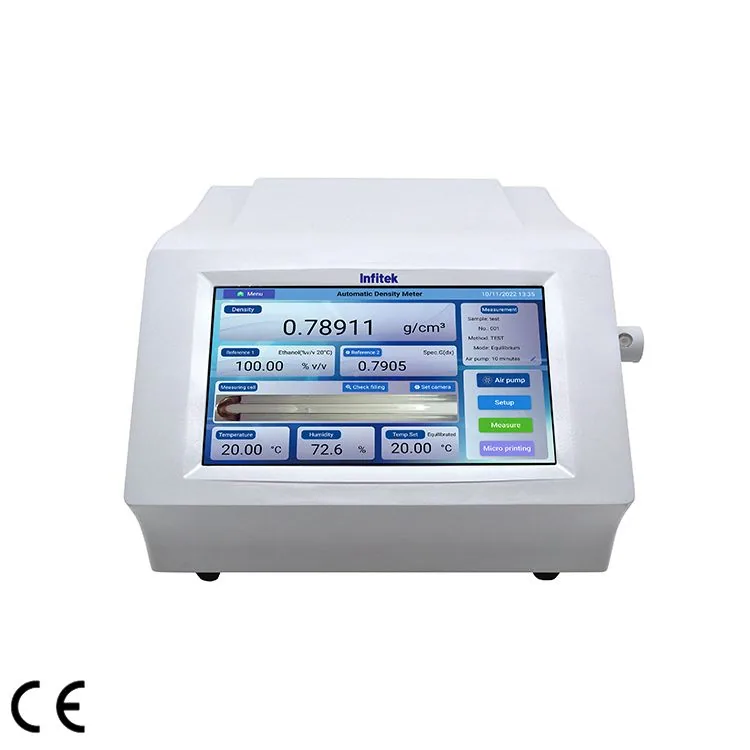

Infitek Density Meter, DM Series is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: DM-3005, DM-3005A, DM-3004. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Beverage Industry | Measuring sugar concentration, food additive indicators , soft drink quality control |
|---|---|
| Food Industry | Grape juice, tomato juice, fructose syrup, vegetable oil and canned food processing |
| Brewing Industry | Detection of alcohol concentration of liquor, yellow wine, red wine, beer, fruit wine, rice wine, etc. |
| Chemical Industry | Chemical urea, detergent, glycol, acid, alkali and polymer density testing |
| Pharmaceutical Industry | Quality control of raw materials and finished products, determination of specific gravity and density (relative density) of pharmaceutical preparations |
| Petrochemical Industry | Crude oil API index, gasoline, diesel, kerosene density detection, additive mixing ratio process monitoring |
| Machining | Cleaning agent testing for metal processing, machine manufacturing, automotive industry, and electronic appliances |
| Flavors and Fragrances | Edible flavors, daily flavors, tobacco flavors, food additives and spices |
| Testing Agency | Standard laboratories, statutory testing agencies, third-party testing of liquid density measurement |
| Model | DM-3005 | DM-3005A | DM-3004 |
|---|---|---|---|
| Measuring Range | Measuring Range | Measuring Range | Measuring Range |
| Density | 0.00000 g/cm³ to 3.00000 g/cm³ | 0.0000 g/cm³ to 3.0000 g/cm³ | 0.0000 g/cm³ to 3.0000 g/cm³ |
| Temperature | 5 ℃ to 70 ℃ | 5 ℃ to 70 ℃ | 5 ℃ to 50 ℃ |
| Accuracy | Accuracy | Accuracy | Accuracy |
| Density | ±0.0001 g/cm³ | ±0.0003 g/cm³ | ±0.0005 g/cm³ |
| Temperature | ±0.05 ℃ | ±0.05 ℃ | ±0.1 ℃ |
| Repeatability | Repeatability | Repeatability | Repeatability |
| Density | ±0.00005 g/cm³ | ±0.0001 g/cm³ | ±0.0002 g/cm³ |
| Precision | Precision | Precision | Precision |
| Temperature | ±0.02 ℃ | ±0.02 ℃ | ±0.05 ℃ |
| Digital Resolution | Digital Resolution | Digital Resolution | Digital Resolution |
| Density | 0.00001 g/cm³ | 0.0001 g/cm³ | 0.0001 g/cm³ |
| Temperature | 0.01 °C | 0.01 °C | 0.01 °C |
| Feature | Feature | Feature | Feature |
| Measuring mode | Density (g/cm³) Density (kg/cm³) 4 ℃ / 20 ℃ / 25 ℃ / Synthermal specific gravity of water More than 30 built-in units such as Density, Specific gravity, Alcohol, API, Brix, Urea, User-defined, etc. | Density (g/cm³) Density (kg/cm³) 4 ℃ / 20 ℃ / 25 ℃ / Synthermal specific gravity of water User-defined | Density (g/cm³) Density (kg/cm³) 4 ℃ / 20 ℃ / 25 ℃ / Synthermal specific gravity of water |
| Injection | Manual / Automatic (peristaltic pump) | Manual / Automatic (peristaltic pump) | Manual / Automatic (peristaltic pump) |
| Injection check | 1080P HD camera, video check, photo check | 1080P HD camera, video check, photo check | 1080P HD camera, video check, photo check |
| Calibration | Dry air & Distilled water, Multi-point calibration | Dry air & Distilled water, Multi-point calibration | Dry air & Distilled water, Multi-point calibration |
| Drying pump | Built-in DC air pump, connected to the drying bucket, can provide continuous dry air | Built-in DC air pump, connected to the drying bucket, can provide continuous dry air | Built-in DC air pump, connected to the drying bucket, can provide continuous dry air |
| Atmospheric pressure compensation | Built-in atmospheric pressure sensor, automatically compensates for atmospheric pressure | Built-in atmospheric pressure sensor, automatically compensates for atmospheric pressure | Built-in atmospheric pressure sensor, automatically compensates for atmospheric pressure |
| User management permissions | Four levels | Four levels | / |
| Electronic signature | Yes | Yes | / |
| Audit trail | Optional FDA software | Optional FDA software | / |
| Report format | PDF / Excel | PDF / Excel | PDF / Excel |
| Technical Data | Technical Data | Technical Data | Technical Data |
| U-tube | Quartz glass | Quartz glass | Quartz glass |
| Minimum sample volume | Approx. 2mL to 3 mL | Approx. 2mL to 3 mL | Approx. 2mL to 3 mL |
| Temperature control | Peltier (high precision platinum resistance, digital PID regulation, PWM temperature control) | Peltier (high precision platinum resistance, digital PID regulation, PWM temperature control) | Peltier (high precision platinum resistance, digital PID regulation, PWM temperature control) |
| Display | 10.1″ color LCD touchscreen | 10.1″ color LCD touchscreen | 10.1″ color LCD touchscreen |
| Operating system | Android | Android | Android |
| Internal storage | 128G | 128G | 128G |
| User management | 200 | 200 | / |
| Method management | 200 | 200 | 100 |
| Test result record | 200,000 | 200,000 | 100,000 |
| Communication interfaces | RS232, USB, RJ45 | RS232, USB, RJ45 | RS232, USB |
| Connect PC, LIMS | Yes | Yes | Yes |
| Printer (Optional) | Thermal printer Stylus printer Wifi printer | Thermal printer Stylus printer Wifi printer | Thermal printer Stylus printer |
| Power supply | AC 100 to 240 V, 50/60 Hz, 120W | AC 100 to 240 V, 50/60 Hz, 120W | AC 100 to 240 V, 50/60 Hz, 120W |
| Product dimensions (L×W×H) | 439 mm × 350 mm × 217 mm | 439 mm × 350 mm × 217 mm | 439 mm × 350 mm × 217 mm |
| Package dimensions (L×W×H) | 720 mm × 470 mm × 390 mm | 720 mm × 470 mm × 390 mm | 720 mm × 470 mm × 390 mm |
| Net weight | 12 kg | 12 kg | 8.5 kg |
| Gross weight | 20 kg | 20 kg | 15 kg |
Manufacturer catalogue checked 2026-09-28.
