Brand: Infitek | Category: Scientific & Laboratory Equipment

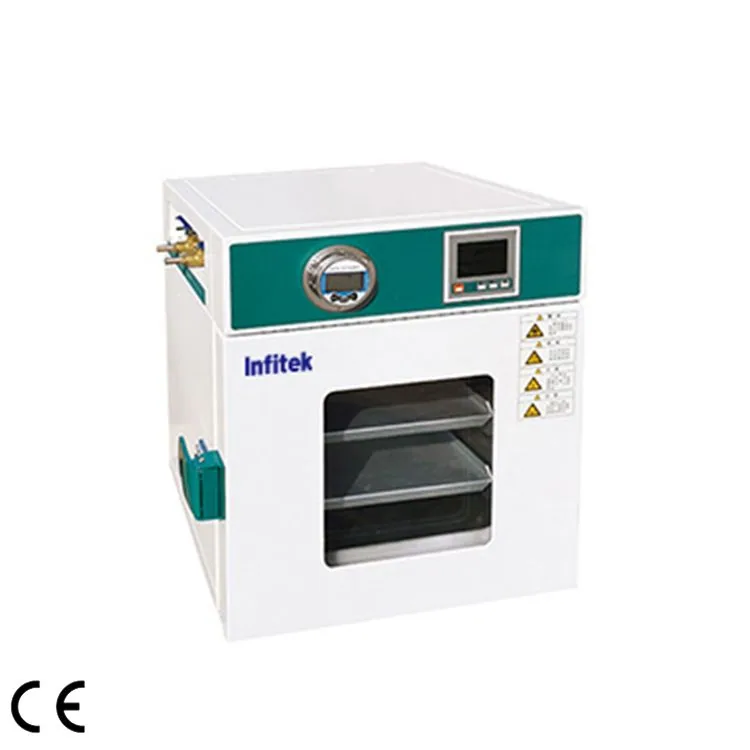

Infitek Vacuum Oven, DOV-25S, DOV-55S, DOV-90S is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: DOV-25S, DOV-55S, DOV-90S. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | DOV-25S | DOV-55S | DOV-90S |
|---|---|---|---|
| Capacity | 24L | 52L | 91L |
| Heating Mode | Four waits heat conduction and decompression | Four waits heat conduction and decompression | Four waits heat conduction and decompression |
| Function / Temp. Range | RT+10-250℃ | RT+10-250℃ | RT+10-250℃ |
| Function / Vacuum Degree Range | <133Pa | <133Pa | <133Pa |
| Function / Temp. Resolution Ratio | 0.1℃ | 0.1℃ | 0.1℃ |
| Function / Temp. Motion | ±1℃ | ±1℃ | ±1℃ |
| Function / Heating-Up Time | 80 min | 100 min | 120 min |
| Structure / Inner Chamber | High Quality stainless steel sheet | High Quality stainless steel sheet | High Quality stainless steel sheet |
| Structure / Outer Shell | cold rolling steel electrostatic spraying exterior | cold rolling steel electrostatic spraying exterior | cold rolling steel electrostatic spraying exterior |
| Structure / Insulation Layer | Aluminium silicate fibre | Aluminium silicate fibre | Aluminium silicate fibre |
| Structure / Heater | stainless steel electric heating tube | stainless steel electric heating tube | stainless steel electric heating tube |
| Structure / Observation Window | Bullet proof glass, acrylic exterior protrction | Bullet proof glass, acrylic exterior protrction | Bullet proof glass, acrylic exterior protrction |
| Structure / Nozzle Diameter | 10mm | 10mm | 10mm |
| Controller / Temp. Control Mode | Two temperature section | Two temperature section | Two temperature section |
| Controller / Temp. Setting Mode | Touch button setting | Touch button setting | Touch button setting |
| Controller / Timer | 0-9999 minutes (with timing wait function) | 0-9999 minutes (with timing wait function) | 0-9999 minutes (with timing wait function) |
| Controller / Operation Function | Fixed temperature operation,timing function, auto stop | Fixed temperature operation,timing function, auto stop | Fixed temperature operation,timing function, auto stop |
| Controller / Additional Function | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power off parameter memory | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power off parameter memory | Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power off parameter memory |
| Controller / Temp. Sensor | PT100 | PT100 | PT100 |
| Safety Device | Over-temperature temperature sound-light alarm | Over-temperature temperature sound-light alarm | Over-temperature temperature sound-light alarm |
| Accessory / Shelf | 2 | 2 | 2 |
| Accessory / Shelf Frame | 4 | 4 | 4 |
| Specification / Load per Rack | 15kg | 15kg | 15kg |
| Specification / Shelf Space | 100mm | 140mm | 185mm |
| Specification / Number of Shelf | 2 | 2 | 2 |
| Specification / Consumption | 800W | 1400W | 2000W |
| Specification / Internal Size(W*D*H) | 300*300*270mm | 450*450*450mm | 450*450*450mm |
| Specification / External Size(W*D*H) | 480*480*606mm | 670*645*906mm | 640*590*780mm |
| Specification / Package Size(W*D*H) | 590*550*750mm | 700*620*820mm | 730*690*940mm |
| Specification / Power Supply(50/60HZ) | AC110/220V±10%, 50/60Hz/3.6A | AC110/220V±10%, 50/60Hz/6.3A | AC110/220V±10%, 50/60Hz/9.1A |
| Specification / Current Rating | AC110/220V±10%, 50/60Hz/3.6A | AC110/220V±10%, 50/60Hz/6.3A | AC110/220V±10%, 50/60Hz/9.1A |
| Specification / Net/Gross Weight | 42/52kg | 67/92kg | 82/105kg |
| Optional Accessories | silica gel connecting pipe, vacuum pump | silica gel connecting pipe, vacuum pump | silica gel connecting pipe, vacuum pump |
Manufacturer catalogue checked 2026-09-28.
