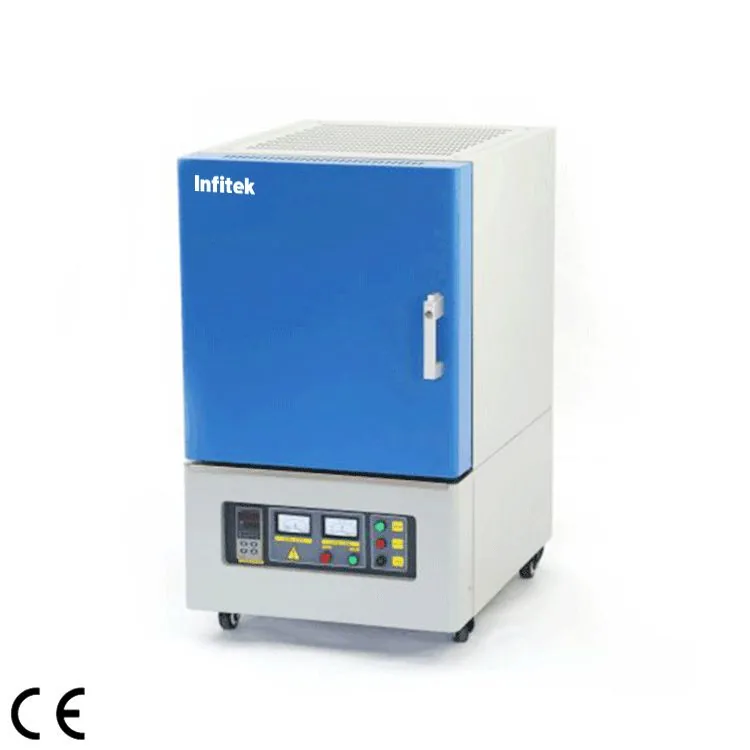

Infitek Muffle Furnace, 1700℃ High Temp, Box Type, FNC-BX1700 Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Muffle Furnace, 1700℃ High Temp, Box Type, FNC-BX1700 Series is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | FNC-BX1700-2 | FNC-BX1700-4 | FNC-BX1700-9 | FNC-BX1700-16 | |
| Temperature | Max. Temp(℃) | 1700 | 1700 | 1700 | 1700 |
| Temperature | Continuous Working Temp.(℃) | ≤1550 | ≤1550 | ≤1550 | ≤1550 |
| Temperature | Heating Rate | 0~30℃/min, suggest to be 5-10℃/min; | 0~30℃/min, suggest to be 5-10℃/min; | 0~30℃/min, suggest to be 5-10℃/min; | 0~30℃/min, suggest to be 5-10℃/min; |
| Temperature | Accuracy(℃) | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Temperature | Uniformity(℃) | ±5℃ | ±5℃ | ±5℃ | ±5℃ |
| Chamber Dimension(W*D*H)(mm) | Chamber Dimension(W*D*H)(mm) | 100*100*100(Or customize as your requirement) | 150*200*150(Or customize as your requirement) | 200*300*200(Or customize as your requirement) | 300*400*300(Or customize as your requirement) |
| External Size(W*D*H)(mm) | External Size(W*D*H)(mm) | 350*470*570mm | 510*700*805mm | 550*700*895mm | 640*850*1050mm |
| Capacity(L) | Capacity(L) | 1 | 4.5 | 12 | 36 |
| Heating Element | Heating Element | MoSi2 heating rod | MoSi2 heating rod | MoSi2 heating rod | MoSi2 heating rod |
| Thermocouple | Thermocouple | B type | B type | B type | B type |
| Chamber Material | Chamber Material | Ceramic fiber | Ceramic fiber | Ceramic fiber | Ceramic fiber |
| Electricity | Electricity | AC 220V, 50Hz/60Hz | AC 220V, 50Hz/60Hz | AC 380V, 50Hz/60Hz | AC 380V, 50Hz/60Hz |
| Max. Consumption | Max. Consumption | 2kW | 4kW | 9kW | 16kW |
Manufacturer catalogue checked 2026-09-28.
