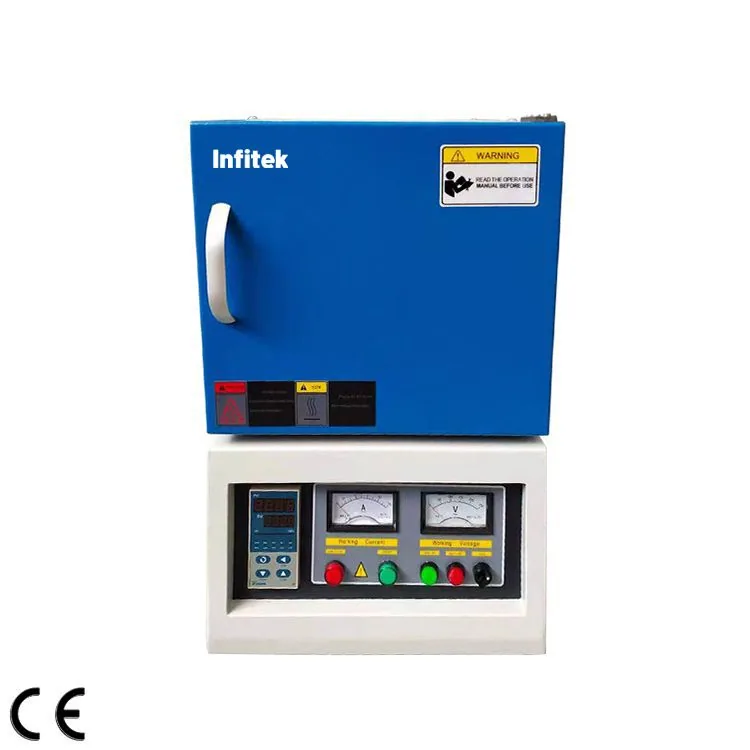

Infitek Muffle Furnace, 1400℃ High Temp, Box Type, FNC-BX1400 Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Muffle Furnace, 1400℃ High Temp, Box Type, FNC-BX1400 Series is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | FNC-BX1400-2 | FNC-BX1400-4 | FNC-BX1400-9 | FNC-BX1400-16 | |
| Temperature | Max. Temp(℃) | 1400 | 1400 | 1400 | 1400 |
| Temperature | Continuous Working Temp.(℃) | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Temperature | Heating Rate | 0~30℃/min, suggest to be 10℃/min; | 0~30℃/min, suggest to be 10℃/min; | 0~30℃/min, suggest to be 10℃/min; | 0~30℃/min, suggest to be 10℃/min; |
| Temperature | Accuracy(℃) | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Temperature | Uniformity(℃) | ±5℃ | ±5℃ | ±5℃ | ±5℃ |
| Chamber Dimension(W*D*H)(mm) | Chamber Dimension(W*D*H)(mm) | 100*100*100(Or customize as your requirement) | 150*200*150(Or customize as your requirement) | 200*300*200(Or customize as your requirement) | 300*400*300(Or customize as your requirement) |
| External Size(W*D*H)(mm) | External Size(W*D*H)(mm) | 350*470*570mm | 510*700*810mm | 550*700*895mm | 640*850*1050mm |
| Capacity(L) | Capacity(L) | 1 | 4.5 | 12 | 36 |
| Heating Element | Heating Element | SiC heating rod | SiC heating rod | SiC heating rod | SiC heating rod |
| Thermocouple | Thermocouple | S type | S type | S type | S type |
| Chamber Material | Chamber Material | Alumina Ceramic fiber | Alumina Ceramic fiber | Alumina Ceramic fiber | Alumina Ceramic fiber |
| Electricity | Electricity | AC 220V, 50Hz/60Hz | AC 220V, 50Hz/60Hz | AC 220V, 50Hz/60Hz | AC 380V, 50Hz/60Hz |
| Max. Consumption | Max. Consumption | 2kW | 4kW | 9kW | 16kW |
Manufacturer catalogue checked 2026-09-28.
