Brand: Infitek | Category: Scientific & Laboratory Equipment

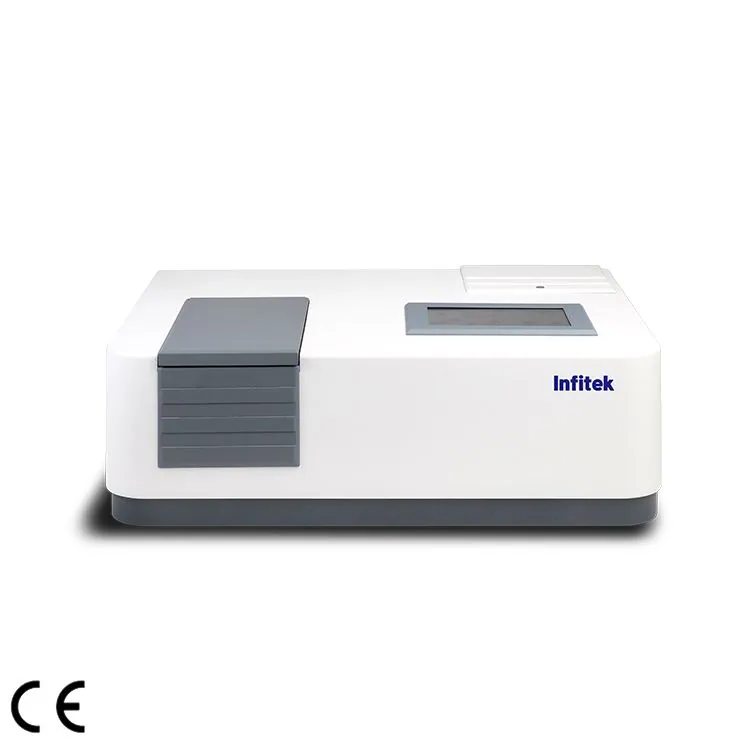

Infitek UV VIS Spectrophotometer, Double Beam, SP-LUV7600 is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: SP-LUV7600. Published details include Wavelength range: 190nm~1100nm. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SP-LUV7600 |
|---|---|
| Optical system | Double-beam System |
| Monochromator system | Czerny-Turner monochromator |
| Wavelength range | 190nm~1100nm |
| Wavelength accuracy | ±0.3nm |
| Wavelength reproducibility | ≤0.1nm |
| Spectral bandwidth | 0.5~6.0nm |
| Photometric accuracy | ±0.002Abs(0~0.5Abs)、±0.004Abs(0.5~1.0Abs)、±0.3%T(0~100%T) |
| Photometric reproducibility | ≤0.001Abs(0~0.5Abs)、≤0.002Abs(0.5~1.0Abs)、≤0.1%T(0~100%T) |
| Photometric range | -0.00~200.0(%T) -4.0~4.0(A) |
| Stray light | ≤0.03%T(220nm,NaI;360nm,NaNO_(2)) |
| Baseline flatness | ±0.0008A |
| Baseline stability | ≤0.0005Abs/h |
| Noise | ≤0.1%T(100%T),≤0.05%T(0%T),≤±0.0005A/h(500nm,0Abs,2nm bandwidth) |
| Baseline Dark Noise | ±0.1%T |
| Scaning speed | High / medium / low / very low |
| WL scan interval | 0.05/0.1/0.2/0.5/1/2 nm |
| Grating | 1200 lines / mm |
| Detector | Photocell |
| Display | 7-inch large-screen color touch LCD screen |
| Light source | Hamamatsu long-life deuterium lamp and long-life halogen tungsten lamp |
| Photometric Mode | T/A/Energy |
| Output | USB-A/USB-B |
| Power | AC90V~250V, 50H/ 60Hz |
| N.W./G.W.(kg) | 24/50 |
| Instrument Dimension (W*D*H)(mm) | 600*470*220 |
| Package Dimension (W*D*H) (mm) | 800*670*570 |
Manufacturer catalogue checked 2026-09-28.
