Brand: Infitek | Category: Scientific & Laboratory Equipment

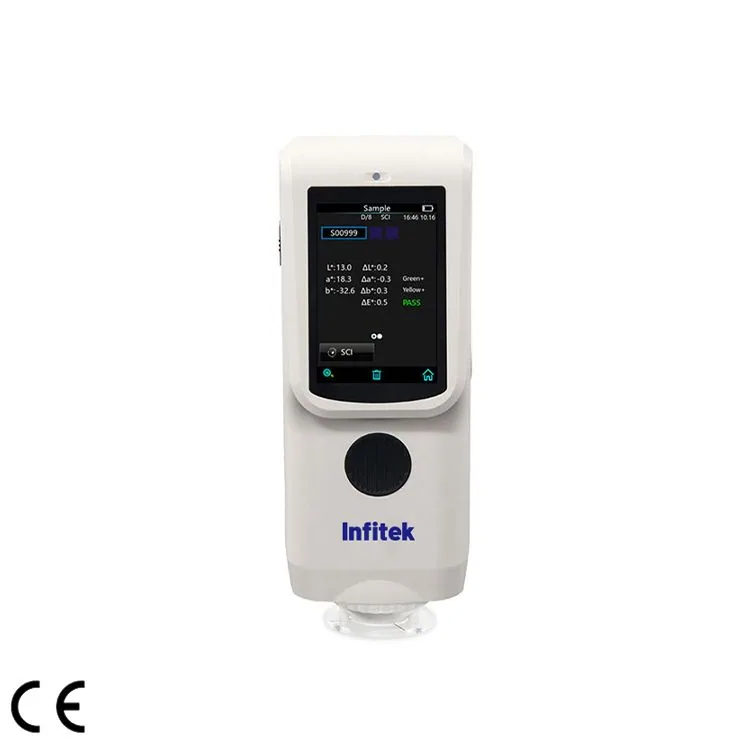

Infitek Portable Spectrocolorimeter, SP-CLR702 is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: SP-CLR702. Published details include Wavelength Range: 400～700nm. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SP-CLR702 |
|---|---|
| Optical Geometry | D/8(diffused illumination, 8-degree viewing angle) |
| Optical Geometry | SCI Mode |
| Characteristic | Φ8mm apertures, Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full spectrum LED light source |
| Spectrophotometric Mode | Flat Grating |
| Senso | Silicon photodiode array (double row 24 groups) |
| Wavelength Range | 400～700nm |
| Wavelength Interval | / |
| Semiband Width | 10nm |
| Measured Reflectance Range | L:0~100; reflectivity:The reflectivity can be measured at 3 specific wavelengths specified by the user (default: 440nm, 550nm, 600nm) |
| Measuring Aperture | Φ8mm |
| Specular Component | SCI |
| Color Space | CIE LAB,XYZ,Yxy,LCh |
| Color Difference Formula | ΔE*ab,ΔE*00 |
| Other Colorimetric Index | / |
| Observer Angle | 10° |
| Illuminant | D65,A,F2(CWF) |
| Displayed Data | Reflectivity (the user specifies the reflectivity at 3 specific wavelengths), Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
| Displayed Accuracy | Display 0.1, storage 0.01 |
| Measuring Time | About 1.5s |
| Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.08 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.4; (Average for 12 BCRA Series II color tiles) |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Stabilizer cross position |
| Dimension | L*W*H=81X71X214mm |
| Weight | About 460g |
| Battery | Li-ion battery, 6000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB |
| Data Storage | Standard 500 Pcs, Sample 10000 Pcs |
| Language | Simplified Chinese, English, Traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture |
| Optional Accessory | USB Micro Printer, Powder Test Box |
| Notes | Technical parameters are onlyfor reference, subject to the actual sale of the product |
Manufacturer catalogue checked 2026-09-28.
