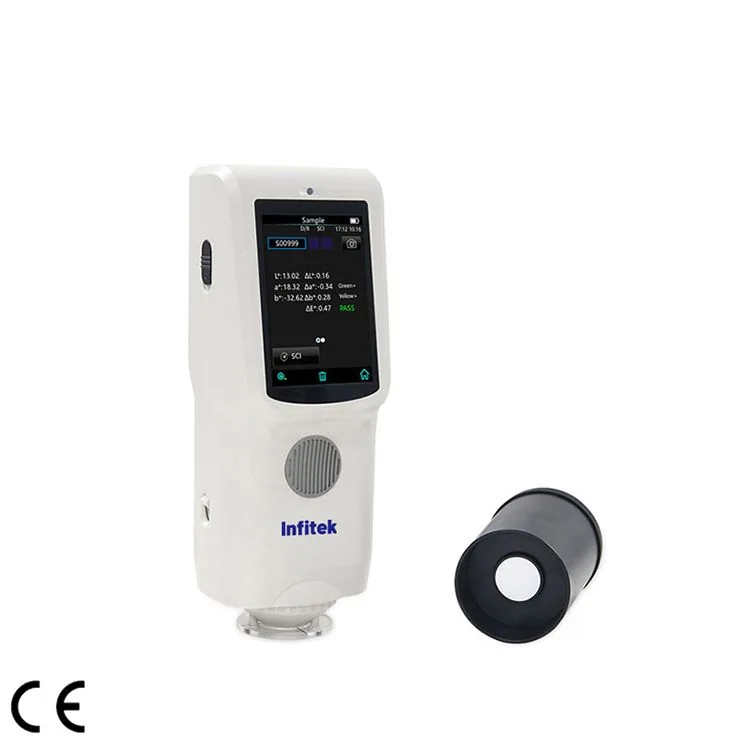

Infitek Portable Spectrocolorimeter, SP-CLR703
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Portable Spectrocolorimeter, SP-CLR703 is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: SP-CLR703. Published details include Wavelength Range: 400～700nm. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SP-CLR703 |
|---|---|
| Optical Geometry | D/8(diffused illumination, 8-degree viewing angle) |
| Optical Geometry | SCI/SCE Mode |
| Optical Geometry | Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 |
| Characteristic | single apertures, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat Grating |
| Senso | Silicon photodiode array (double row 32 groups) |
| Wavelength Range | 400～700nm |
| Wavelength Interval | 10nm |
| Semiband Width | 10nm |
| Measured Reflectance Range | L:0~120; reflectivity:0~200% |
| Measuring Aperture | Single Apertures：Φ8mm/Φ10mm |
| Specular Component | SCI/SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,s-RGB,βxy,Munsell(C/2) |
| Color Difference Formula | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99 |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter)， |
| Other Colorimetric Index | YI(ASTM D1925,ASTM 313), |
| Other Colorimetric Index | Metamerism Index MI, |
| Other Colorimetric Index | Staining Fastness, Color Fastness, Color Strength, Opacity,Color Card Search |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,F2(CWF),F7(DLF),F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset |
| Displayed Accuracy | 0.01 |
| Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.06 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.3; (Average for 12 BCRA Series II color tiles) |
| Measurement Mode | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Camera Locating,stabilizer cross position |
| Dimension | L*W*H=81X71X214mm |
| Weight | About 460g |
| Battery | Li-ion battery, 6000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Data Port | USB |
| Data Storage | Standard 1000 Pcs, Sample 20000 Pcs(One data is able to include SCI/SCE) |
| Language | Simplified Chinese, English, Traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| Storage Environment | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture |
| Optional Accessory | USB Micro Printer, Powder Test Box |
| Notes | Technical parameters are only for reference, subject to the actual sale of the product |
