Brand: Infitek | Category: Scientific & Laboratory Equipment

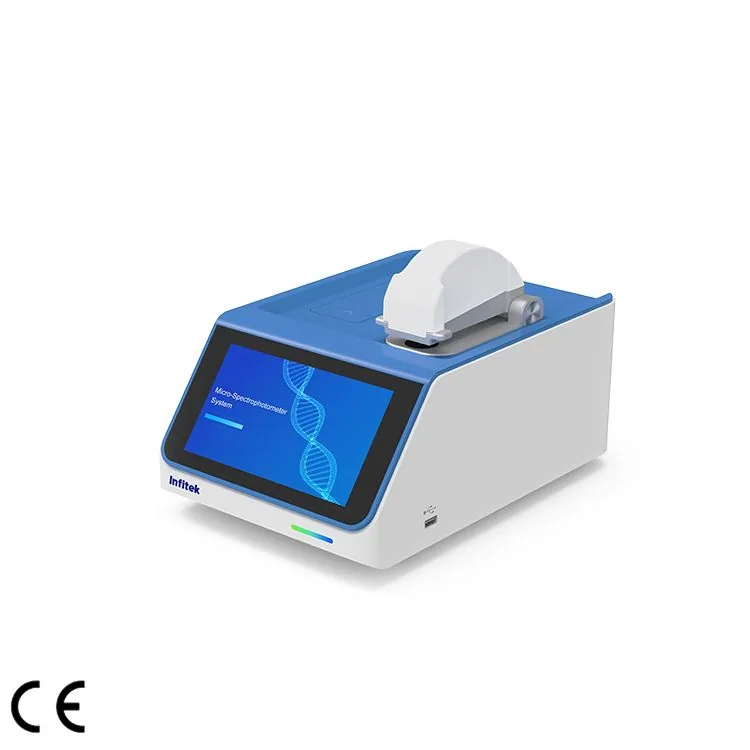

Infitek Ultra-Micro Spectrophotometer, SP-601-F is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: SP-601-F. Published details include Volume: 0.5–2 μL; Wavelength Range: 190–850 nm. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SP-601-F |
|---|---|
| Detection Function | Nucleic Acid / Fluorescence / OD600 |
| Volume | 0.5–2 μL |
| Dimensions (L*W*H) | 318*210*188 mm |
| Weight | 4.85 kg |
| Optical System | Optical System |
| Optical Path | 0.03 mm, 0.05 mm, 0.1 mm, 0.2 mm, 1 mm |
| Light Source | Xenon flash lamp/number of flashes＞10^(9) |
| Detector Type | 2048 pixel linear array CCD |
| Wavelength Range | 190–850 nm |
| Wavelength Accuracy | ±1 nm |
| Performance Parameters | Performance Parameters |
| Spectral Resolution | ≤ 3 nm (FWHM @ Hg 253.7 nm) |
| Absorbance Precision | 0.002Abs (1 mm optical path) |
| Absorbance Accuracy | ±1% (7.332Abs absorbance @ 260nm) |
| Absorbance Range | 0.04-750 (at 260 nm wavelength, equivalent to 10 mm optical path) |
| Concentration Range | 2 ng/μL dsDNA-37500 ng/μL dsDNA |
| Contaminant Detection | EDTA, GTC, Phenol, Protein, Guanidine salts, RNA |
| Detection Time | < 6 s |
| OD600 | OD600 |
| Light Source | Single color LED |
| Absorbance Range | 0-4.000 Abs |
| Repeatability | (0, 3) ≤ 0.5%, (3, 4) ≤ 1 .5% |
| Absorbance Accuracy | (0, 2) ≤ 0.005A, (2, 3) ≤ 1%, (3, 4) ≤ 2% |
| Heating Temperature | 37 °C ± 0.5 °C |
| Stirring Speed | 12 adjustable speeds, 100-1200 rpm |
| Fluorescence Detection | Fluorescence Detection |
| Sample Volume | ≥ 50 μL (0.5 mL PCR tube) |
| Detection Time | 4 s |
| Detection Channels | 2 channels |
| Repeatability | < 1.5% |
| Stability | < 1.5% |
| Linearity | R^(2)^( )≥ 0.995 |
| Light Source | Single color LED |
| Excitation Wavelength | 470 nm, 624 nm |
| Emission Wavelength | 525 nm, 692 nm |
| Other Performance | Other Performance |
| Printing/Interface | Built-in thermal printer, USB 2.0 × 2 |
| Data Export Formats | xls, csv, txt, jpg, png |
| Experimental Data | ＞10,000 |
| Power Supply | DC 12V 5A, 60W |
Manufacturer catalogue checked 2026-09-28.
