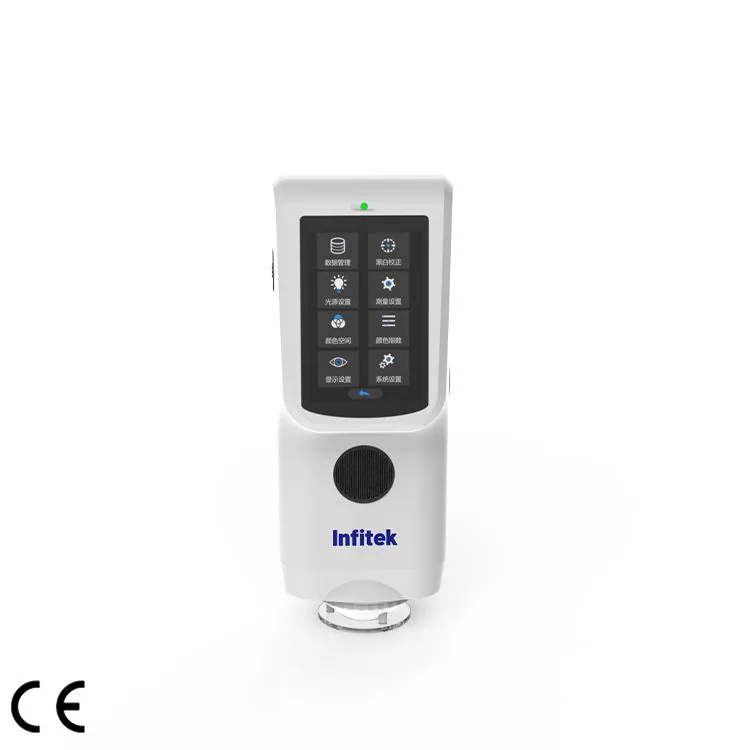

Infitek Colorimeter, SP-CLR8
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Colorimeter, SP-CLR8 is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: SP-CLR8. Published details include Wavelength Range: 400~700nm; Measurement Range: L: 0~120. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SP-CLR8 |
|---|---|
| Optical Geometry | D/8 (diffuse illumination, 8° direction reception) |
| Optical Geometry | SCI measurement |
| Optical Geometry | Comply with standard CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7 |
| Characteristics | Customized single measurement aperture for accurate color difference control in plastic and electronic, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries. |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full-spectrum LED light source |
| Spectroscopic Method | Planar grating |
| Sensor | Silicon photodiode arrays (dual row 32 groups) |
| Wavelength Range | 400~700nm |
| Wavelength Interval | 10nm |
| Semiband Bandwidth | 10nm |
| Measurement Range | L: 0~120 |
| Measurement Range | Reflectivity: the instrument can test the reflectivity at 3 specific wavelengths specified by the user (default 440nm, 550nm, 600nm) |
| Measurement Aperture | Single aperture: Φ8mm (Φ4mm optional) |
| Focusing Method | Fixed focus |
| Specular Component | SCI |
| Color Space | CIE LAB, XYZ, Yxy, LCh |
| Color Difference Formula | ΔE*ab, ΔE*00 |
| Observer Angle | 10° |
| Illuminant | D65, A, F2 (CWF) |
| Displayed Data | Reflectivity (at 3 specific wavelengths specified by the user), chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset |
| Display Accuracy | 0.01 |
| Measurement Time | Approx. 1.5s |
| Repeatability | Chromaticity value: MAV/SCI, ΔE*ab within 0.04 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | MAV/SCI, within ΔE*ab 0.35 (Average for 12 BCRA Series II color tiles) |
| Measurement Method | Single measurement, average measurement (2~99 times) |
| Locating Method | Stabilizer locating |
| Battery Power | Lithium battery, 6000 times in 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | TFT true color 3.5inch, capacitive touch screen |
| Data Port | USB, Bluetooth® 5.0 |
| Data Storage | 500 standard samples, 1,0000 samples |
| Language | English |
| Operating Temperature Range | 0~40℃, 0~85%RH (no condensation), altitude < 2000m |
| Storage Temperature Range | -20~50℃, 0~85%RH (no condensation) |
| Standard Accessories | Power adapter, data cable, manual, black and white calibration box, protective cover, wrist strap, single aperture: Ø8mm (optional Ø4mm) platform aperture |
| Optional Accessories | USB micro printer, powder test box, Bluetooth micro printer, holder base |
| External Dimensions (L*W*H) | 81*71*214mm |
| Weight | About 460g |
Manufacturer catalogue checked 2026-09-28.
