Brand: Infitek | Category: Scientific & Laboratory Equipment

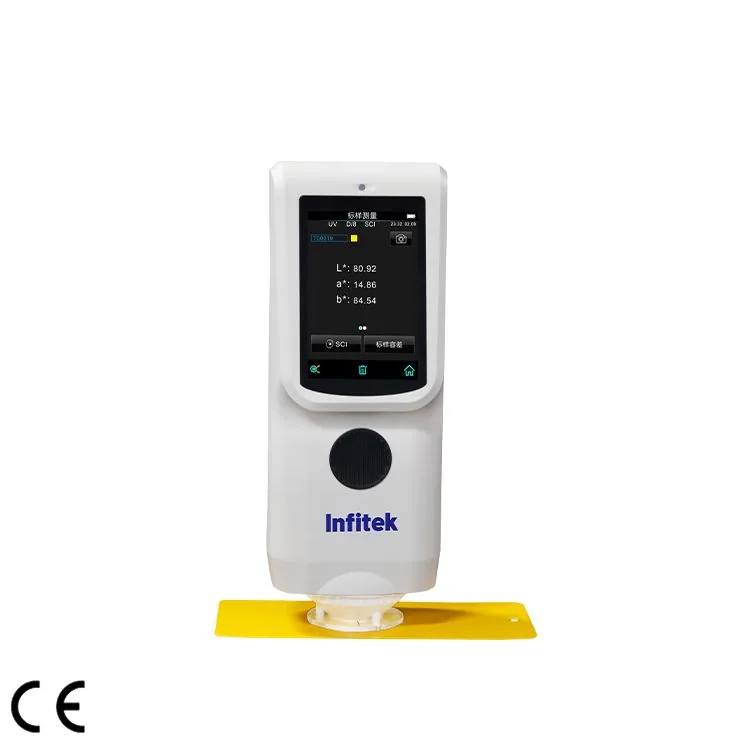

Infitek Colorimeter, SP-CLR9 is listed in VVON's spectrometers & optical analysis range for Bangladesh. Published models: SP-CLR9. Published details include Wavelength Range: 400~700nm; Measurement Range: L: 0~120. Compare measurement range, optical configuration, sample format and software. For a quotation, send the analytical method, measurement range, sample format and software requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | SP-CLR9 |
|---|---|
| Optical Geometry | D/8 (diffuse illumination, 8° direction reception) |
| Optical Geometry | SCI/SCE measurement |
| Optical Geometry | Comply with standard CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7 |
| Characteristics | Dual measurement aperture, wider adaptability; used for accurate color measurement and quality control in plastic and electronic, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries |
| Integrating Sphere Size | Φ40mm |
| Light Source | Combined full-spectrum LED light source, UV light source |
| Spectroscopic Method | Planar grating |
| Sensor | Silicon photodiode arrays (dual row 32 groups) |
| Wavelength Range | 400~700nm |
| Wavelength Interval | 10nm |
| Semiband Bandwidth | 10nm |
| Measurement Range | L: 0~120 |
| Measurement Range | Reflectivity: 0~200% |
| Measurement Aperture | Dual apertures: Φ8mm, Φ4mm |
| Focusing Method | Optical focus |
| Specular Component | SCI&SCE |
| Color Space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, βxy, DIN Lab9, DIN Lab99 Munsell (C/2) |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, DINΔE99 |
| Other Colorimetric Indexs | WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), Metamerism index Mt, staining fastness, color fastness, strength, opacity, color card search |
| Observer Angle | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30) |
| Displayed Data | Spectrogram/data, chromaticity value, color difference value/graph, pass/fail result, color simulation, color offset |
| Display Accuracy | 0.01 |
| Measurement Time | Approx. 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Chromaticity value: MAV/SCI, ΔE*ab within 0.03 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | MAV/SCI, within ΔE*ab 0.3 (Average for 12 BCRA Series II color tiles) |
| Measurement Method | Single measurement, average measurement (2~99 times) |
| Locating Method | Camera locating, stabilizer locating |
| Battery Power | Lithium battery, 6000 times in 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | TFT true color 3.5inch, capacitive touch screen |
| Data Port | USB, Bluetooth® 5.0 |
| Data Storage | 1000 standard samples, 30,000 samples (a piece of data can include SCI/SCE at the same time) |
| Language | English |
| Operating Temperature Range | 0~40℃, 0~85%RH (no condensation), altitude < 2000m |
| Storage Temperature Range | -20~50℃, 0~85%RH (no condensation) |
| Standard Accessories | Power adapter, data cable, manual, black and white calibration box, protective cover, wrist strap, dual aperture: Ø8mm + Ø4mm platform aperture |
| Optional Accessories | USB micro printer, powder test box, Bluetooth micro printer, holder base |
| External Dimensions (L*W*H) | 81*71*214mm |
| Weight | About 460g |
Manufacturer catalogue checked 2026-09-28.
