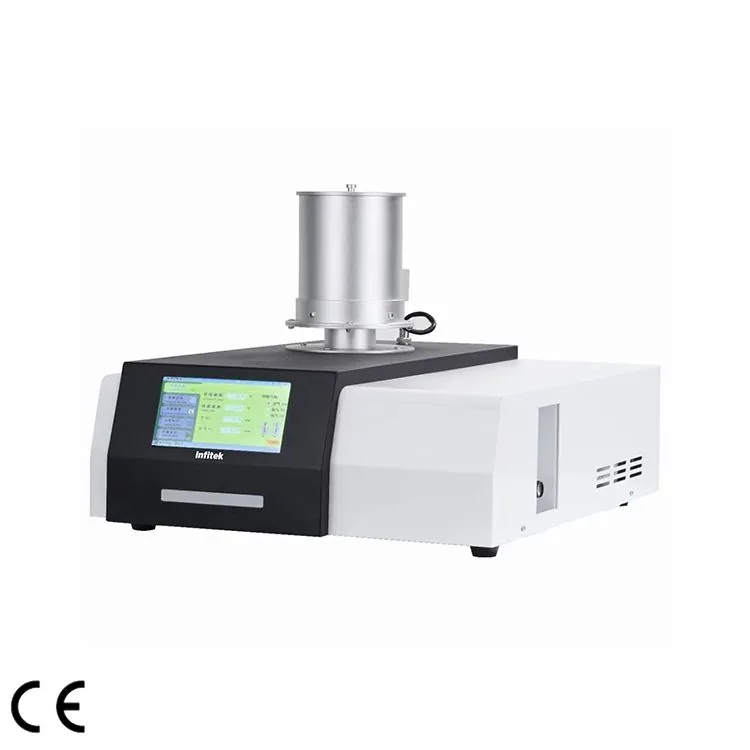

Infitek Thermogravimetric Analyzer, TGA-1150
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Thermogravimetric Analyzer, TGA-1150 is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: TGA-1150. Published details include Temperature range: RT~1150℃. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | TGA-1150 |
|---|---|
| Temperature range | RT~1150℃ |
| Temperature resolution | 0.01℃ |
| Temperature fluctuation | ±0.01℃ |
| Heating rate | 0.1~100℃/min |
| Temperature control mode | PID control, heating, constant temperature and cooling |
| Program control | program setting multi-stage temperature rise and constant temperature, and five sections can be set at the same time |
| Balance measuring range | 3g, can be extended to 50g |
| Accuracy | 0.01mg |
| Constant temperature time | Arbitrary setting |
| Resolution | 0.1ug |
| Display method | 7-inch large screen LCD display |
| Atmosphere device | Built in gas flow meter and gas flow control device |
| Software | Intelligent software can automatically record TG curve for data processing, TG / DTG, mass, percentage coordinates can be arbitrarily switched;Software with automatic adjustment function, according to the map display, automatic extension, scaling |
| Data interface | Standard USB interface, dedicated software (software upgrades for free from time to time) |
| Curve scanning | heating scanning and cooling scanning |
| Cooling time | ≤ 15min, 1000 ℃ ~ room temperature;Air cooled cooling device is selected to reduce temperature quickly and improve test |
| Crucible type | Ceramic crucible, aluminum crucible |
| Standard substance | one copy |
| Electricity | AC220/110V,50/60Hz |
| Dimensions | 531*463.5*416 mm |
| Weight | 26Kg |
| Package dimensions | 730*600*430 mm |
| Package weight | 37.8Kg |
Manufacturer catalogue checked 2026-09-28.
