Brand: Infitek | Category: Scientific & Laboratory Equipment

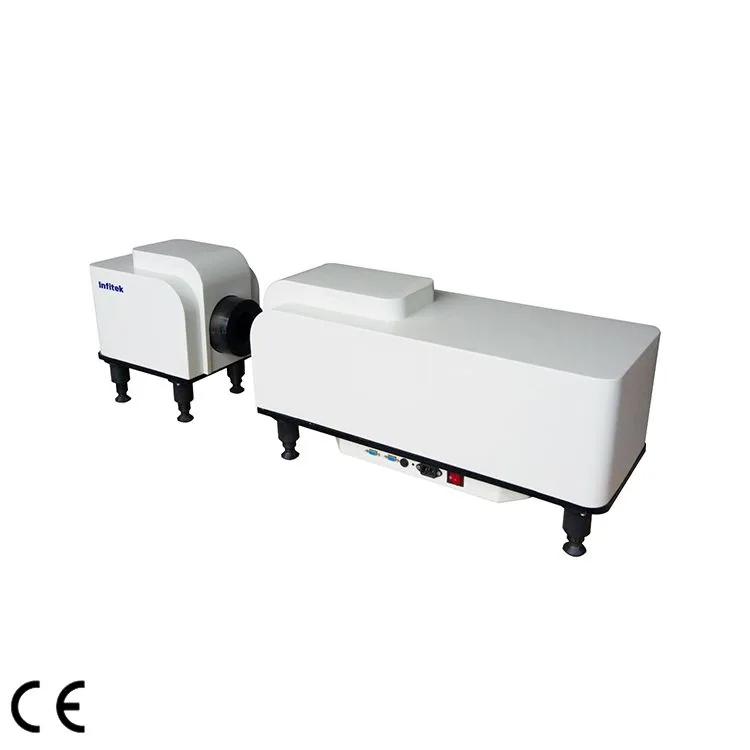

Infitek Laser Particle Size Analyzer, Industrial-Grade PSA-SI319A is listed in VVON's particle size rheology & physical analysis range for Bangladesh. Published models: PSA-SI319A. Match the material, property, measurement range and sample-preparation method. For a quotation, send the material, property to measure, measurement range and sample preparation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | PSA-SI319A |
|---|---|
| Instrument type | Spray |
| Specification | Specification |
| Measuring range | 1μm to 500μm |
| Photodetector | 50 |
| Accuracy | ≤1% (CRM D50) |
| Repeatability | ≤1% (CRM D50) |
| Design principle | Laser Diffraction |
| Analysis principle | Mie Scattering; Fraunhofer Diffraction |
| Standard | ISO 13320 |
| Audit trail | Optional FDA software |
| Engineering | Engineering |
| Laser | LD Pump Laser, 532nm, P>2mW |
| Laser safety | Class 1 |
| Measurement area length | 0.1m to 10m adjustable |
| Feeding mode | Open |
| Technical data | Technical data |
| Connect PC, LIMS | Yes |
| Test Report | Word, Excel, Image, Text, etc. |
| Working environment | Temperature: 5℃ to 35℃; Humidity: ＜85% |
| Storage environment | Temperature: -20℃ to 50℃ |
| Power supply | 110/220V, 50/60Hz |
| Product dimensions (L×W×H) | 369mm×295mm×360mm; 858mm×295mm×360mm |
| Net weight | 68kg |
Manufacturer catalogue checked 2026-09-28.
