Brand: Infitek | Category: Scientific & Laboratory Equipment

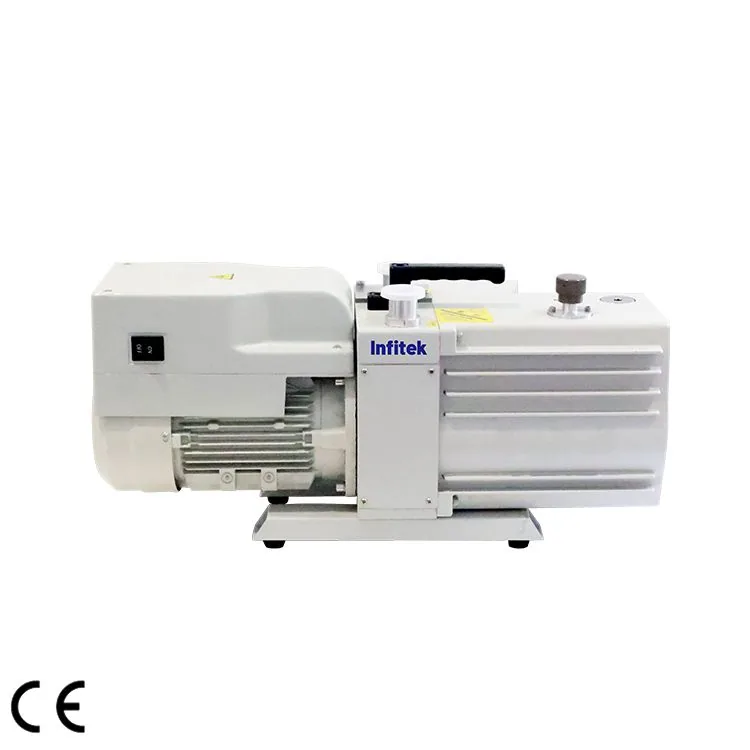

Infitek Rotary-Vane Vacuum Pump, VACP-T8D, VACP-T24D is listed in VVON's laboratory pumps & gas generators range for Bangladesh. Published models: VACP-T8D, VACP-T24D. Match flow, pressure or vacuum, purity and connected-instrument requirements. For a quotation, send the connected instrument, flow, pressure or vacuum, purity and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | VACP-T8D | VACP-T24D |
|---|---|---|
| 50Hz Nominal Pumping Speed (m^(3/)h ) (L/s) | 8/2 | 24/6 |
| 50Hz Pumping Speed (m^(3/)h ) (L/s) | 8/2 | 23/6 |
| Partial Ultimate Pressure Without Gas Ballast (Pa) | 5×10^(-2) | 5×10^(-2) |
| Total Ultimate Pressure Without Gas Ballast (Pa) | 1 | 1 |
| Total Ultimate Pressure With Gas Ballast (Pa) | 6 | 6 |
| Vapour Allowed Pressure (Pa) | 20 | 20 |
| Vapour Pumping Ability (g/h) | 230 | 300 |
| Oil Capacity (Min./Max.) (L) | 1/1.4 | 1.45/1.9 |
| Sound Emission (Gas Ballast Close/Open) (dBA) | 58/60 | 60/62 |
| Ambient Temperature (℃) | 5~45 | 5~45 |
| Connector | KF25 | KF25 |
| Electricity | Single-phase/ Three-phase | Single-phase/ Three-phase |
| Power Rating (kW) | 0.37 | 0.75 |
| External Dimension (mm) | 520*175*285 | 564*175*285 |
| Net Weight (Without Oil) (kg) | 33 | 38 |
Manufacturer catalogue checked 2026-09-28.
