Brand: Infitek | Category: Scientific & Laboratory Equipment

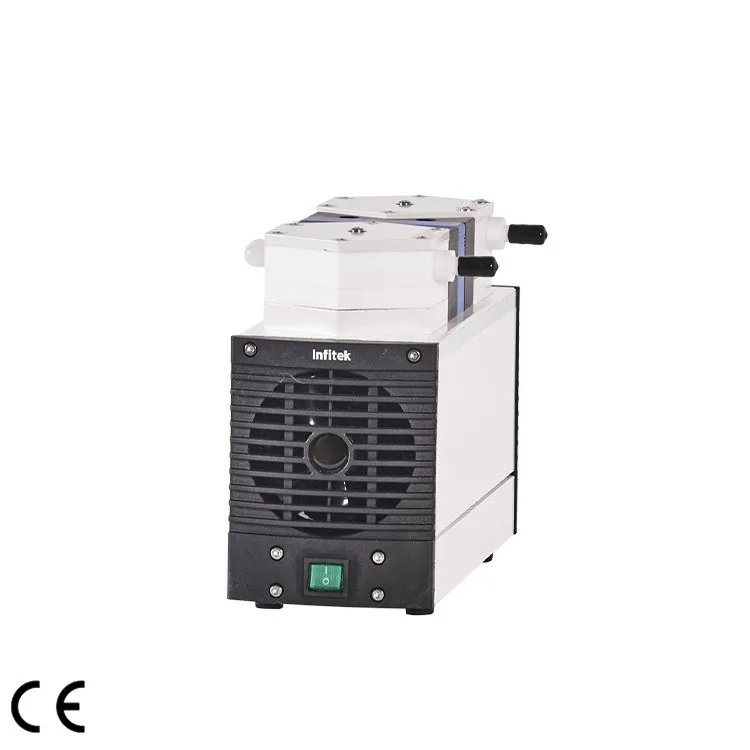

Infitek Diaphragm Vacuum Pump, VACP-D20 is listed in VVON's laboratory pumps & gas generators range for Bangladesh. Published models: VACP-D20. Published details include Max. Pumping Speed: 20 L/min. Match flow, pressure or vacuum, purity and connected-instrument requirements. For a quotation, send the connected instrument, flow, pressure or vacuum, purity and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | VACP-D20 |
|---|---|
| Max. Pumping Speed | 20 L/min |
| Pump Head Type | Double-stage |
| Ultimate Vacuum | 8mbar |
| Max. Operating Pressure | 1 bar |
| Rated Speed | 1450rpm |
| Suitable Media | Strong acids and strong alkaline gases |
| Interface Specification | 10 mm |
| Media and Ambient Temperature | 5 ℃~40 ℃ |
| Ambient Relative Humidity | ＜80% |
| Pump Head Material | PTFE |
| Composite Diaphragm Material | PTFE (Customizable non-standard options) |
| Valve Plate Material | FFPM (Customizable non-standard options) |
| Operating Mode | Continuous operation |
| Noise | ＜60 dB |
| Electricity | 110V / 220V, 50Hz |
| Rated Power | 130 W |
| External Dimensions (L*W*H) | 315*165*210 mm |
| Net Weight | 11.5kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
