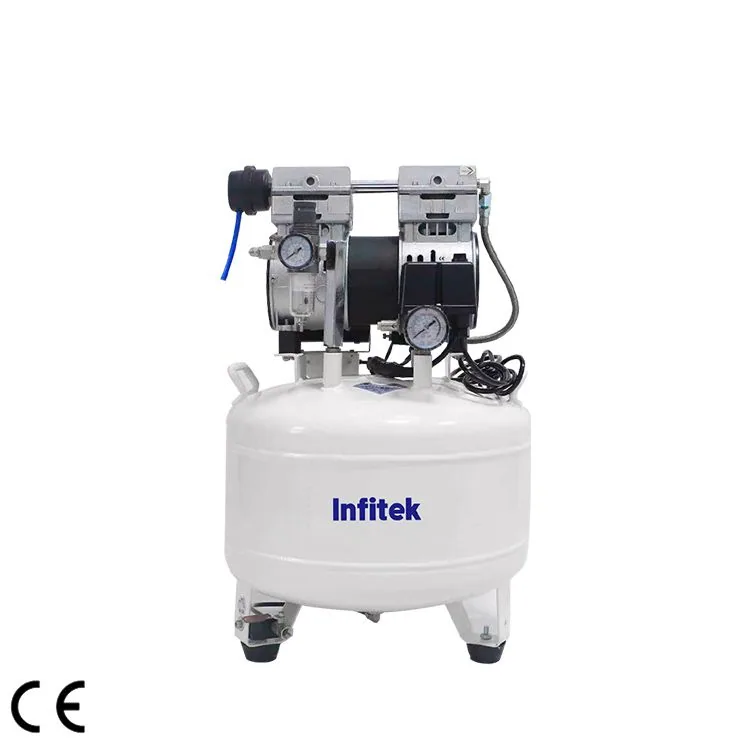

Infitek Air Compressor, AC-J Series
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Air Compressor, AC-J Series is listed in VVON's laboratory pumps & gas generators range for Bangladesh. Published models: AC-J701, AC-J702, AC-J703, AC-J704. Match flow, pressure or vacuum, purity and connected-instrument requirements. For a quotation, send the connected instrument, flow, pressure or vacuum, purity and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | AC-J701 | AC-J702 | AC-J703 | AC-J704 |
|---|---|---|---|---|
| Voltage/Frequency | 110V/220V, 50/60Hz | 110V/220V, 50/60Hz | 110V/220V, 50/60Hz | 110V/220V, 50/60Hz |
| Power | 0.75kW | 1.5kW | 2.25kW | 3kW |
| Max. Flow | 152L/min | 304L/min | 456L/min | 608L/min |
| Rated Flow @7BAR | 55L/min | 110L/min | 165L/min | 220L/min |
| Gas Tank Volume | 30L | 60L | 90L | 120L |
| Output Pressure | 5~8bar | 5~8bar | 5~8bar | 5~8bar |
| Noise | ≤55dB(A) | ≤62dB(A) | ≤65dB(A) | ≤68dB(A) |
| External Dimension | 410*410*650mm | 686*410*735mm | 825*410*722mm | 1080*425*755mm |
| Net Weight | 27kg | 49.5kg | 63kg | 87.5kg |
Manufacturer catalogue checked 2026-09-28.
