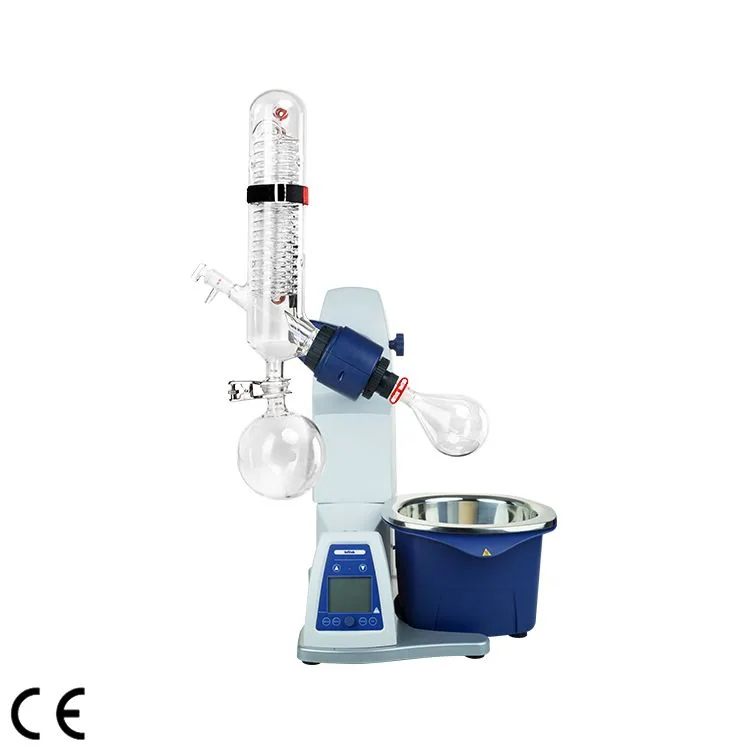

Infitek Rotary Evaporator, Lab Scale, REV100-P
Brand: Infitek | Category: Scientific & Laboratory Equipment
Infitek Rotary Evaporator, Lab Scale, REV100-P is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published details include Receiving Flask Volume: 100-2000ml (Standard configuration-1000ml); Heating Temperature Range: Room temp. to 180℃. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Specifications | REV100-P |
|---|---|
| Evaporating Flask Volume | 50-3000ml (Standard configuration-1000ml) (Optional thickened glass axis compatible with 3L evaporating flask) |
| Receiving Flask Volume | 100-2000ml (Standard configuration-1000ml) |
| Motor Type | Brushless DC motor |
| Speed Range | 20rpm-280rpm |
| Display | LCD (speed, temperature, time) |
| Clockwise and Anti-clockwise | Yes |
| Heating Temperature Range | Room temp. to 180℃ |
| Control Accuracy | water: ±1℃ oil: ±3℃ |
| Heating Power | 1300W |
| Stroke Displacement | automatic 150mm |
| Timer | Yes |
| Time Setting Range | 1-999min |
| Interval Time Setting Range | 1~999s |
| Dimension (D×W×H) | 465*457*583mm |
| Weight | 15kg |
| Permissible Ambient Temperature | 5℃-40℃ |
| Permissible Relative Humidity | 80%RH |
| Protection Class | IP20 |
| USB Interface | Yes |
| Voltage/Frequency | 100V-120V/200V-240V 50Hz/60Hz |
| Power | 1400 W |
| Supporting products | REV100-P+ Diaphragm Vacuum Pump VACP-D410+Low Temperature Circulator RECL20-4.5+Vacuum Controller VACC100 |
Manufacturer catalogue checked 2026-09-28.
